FBN Standard Sprockets FBN 15B
FBN Standard Sprockets (Japanese Standard) FBN 15B
聽聽
Chain Type
No.15Pitch
(P)
4.7625 mmInternal Width
(W)
2.38 mmRoller Dia.
(Dr)
2.48 mmTeeth width
(T)
2.0 mm Outside Dia.聽
Do
Pitch Dia.聽
Dp
Hub
a
Sprockets No.
Bore dia.聽
H7
Weight聽
(g)BD
BL
Type
Teeth No.39.0
36.49
30
16
7
FBN 15B
24
10,12,15
8......

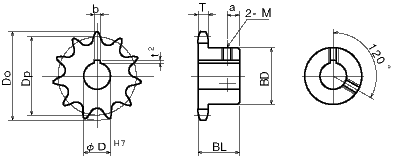

FBN Standard Sprockets (Japanese Standard) FBN 15B
聽
聽
| Chain Type | No.15 | |
| Pitch | (P) | 4.7625 mm |
| Internal Width | (W) | 2.38 mm |
| Roller Dia. | (Dr) | 2.48 mm |
| Teeth width | (T) | 2.0 mm |
| Outside Dia.聽 Do |
Pitch Dia.聽 Dp |
Hub | a | Sprockets No. | Bore dia.聽 H7 |
Weight聽 (g) |
||
| BD | BL | Type | Teeth No. | |||||
| 39.0 | 36.49 | 30 | 16 | 7 | FBN 15B | 24 | 10,12,15 | 88 |
|---|---|---|---|---|---|---|---|---|
| 42.0 | 39.51 | 33 | 16 | 7 | 26 | 12,15,16 | 104 | |
| 45.0 | 42.54 | 37 | 16 | 7 | 28 | 12,15,16 | 131 | |
| 48.0 | 45.56 | 39 | 16 | 7 | 30 | 12,15,16 | 147 | |
| 52.5 | 50.10 | 40 | 18 | 8 | 33 | 12,15,16 | 178 | |
| 55.5 | 53.13 | 40 | 18 | 8 | 35 | 12,15,16 | 182 | |
| Bore dia聽H7 | Keyway聽 bXt2 |
Setscrew颅鲁聽 M |
| 5~7 | 聛| | 3 |
| 8~9 | 聛| | 4 |
| 10 | 3X1.4 | 4 |
| 12 | 4X1.8 | 5 |
| 14~17 | 5X2.3 | 6 |
| 18~22 | 6X2.8 | 6 |
---
