Finished Bore Sprockets 06B 08B 10B 12B 16B

European Standard Finished Bore Sprockets Sprockets: Ready for assembly Teeth: Induction hardness: HRC45~55 Finished Bore tolerance H7 Keyway to DIN6885/BS4235 2 setcrews installed With*only one set screws at 90 degree to keyway3/8鈥?x 7/32鈥澛?/strong> 9.525x5.72mm 06B-1 For Chain acc. to DIN8187 C......

Send Inquiry

Product Description

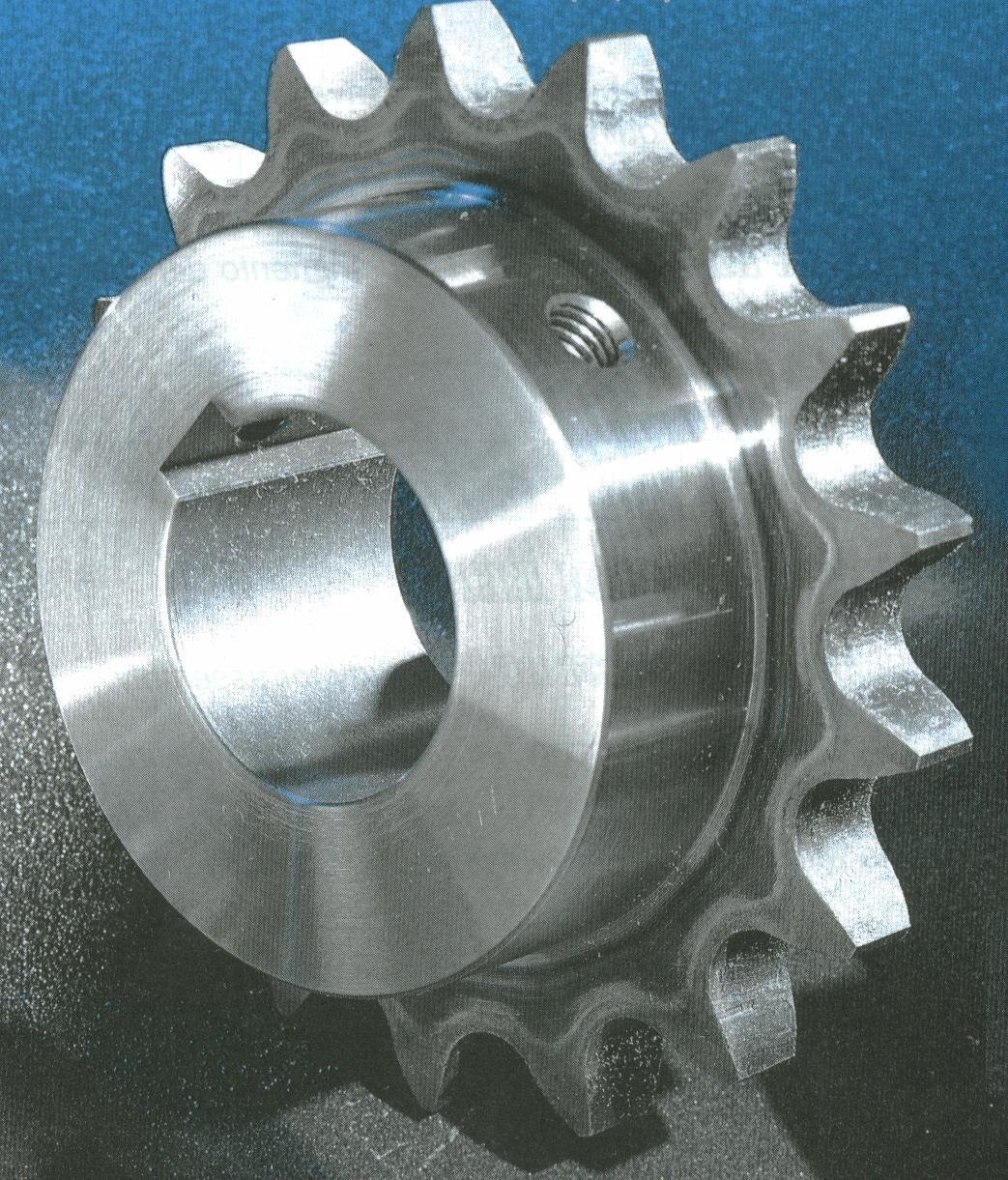

European Standard Finished Bore Sprockets

Sprockets: Ready for assembly
Teeth: Induction hardness: HRC45~55
Finished Bore tolerance H7

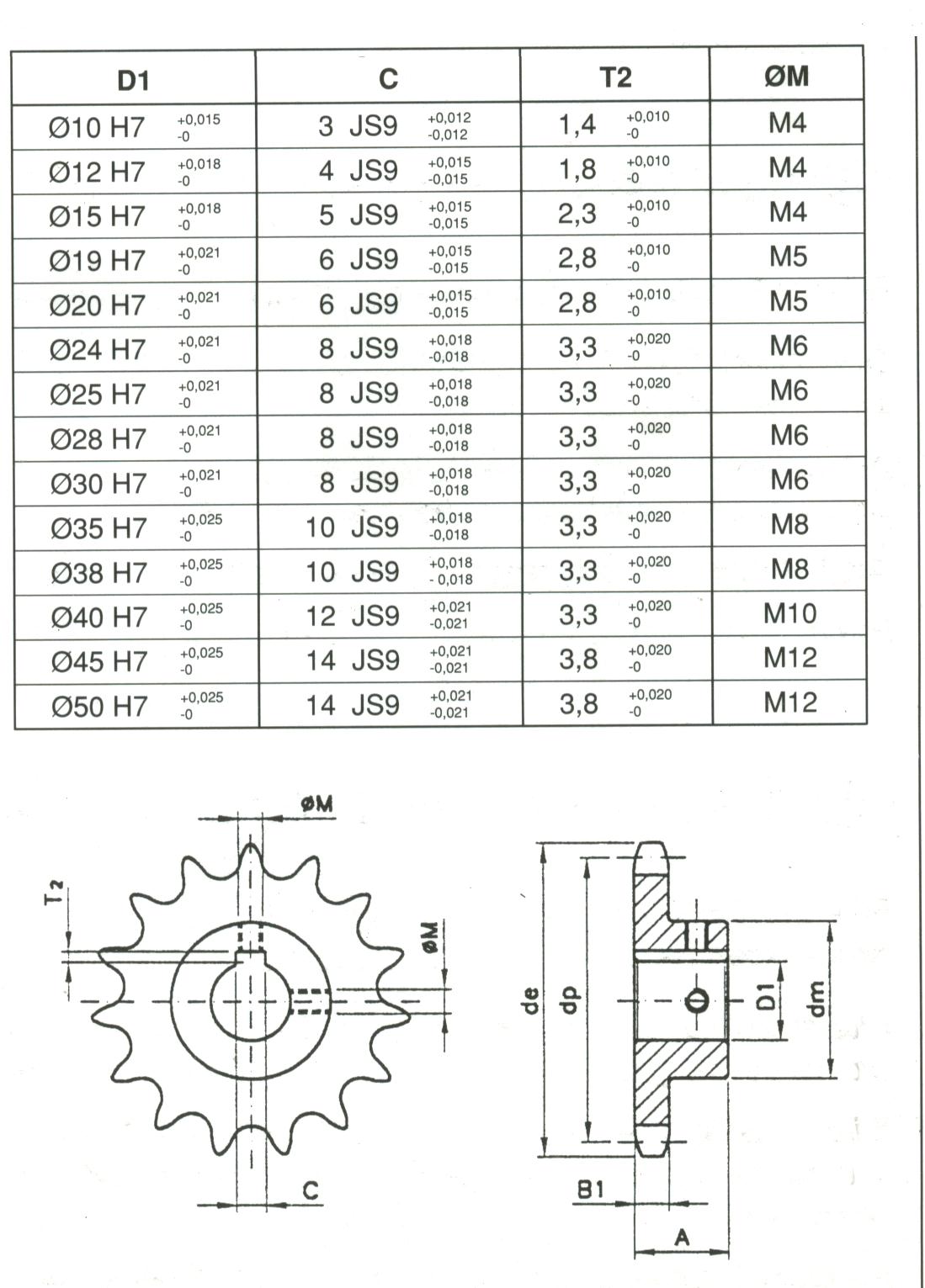

Keyway to DIN6885/BS4235
2 setcrews installed
With*only one set screws at 90 degree to keyway

Finished Bore Sprockets 06B 08B 10B 12B 16B

3/8鈥?x 7/32鈥澛?/strong> 9.525x5.72mm 06B-1 For Chain acc. to DIN8187 Chain聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 mm Picth聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 9.525 Internal width聽聽聽聽聽聽 5.75 Roller dia.聽聽聽聽聽聽聽聽聽聽聽 6.35	Z	de	dp	dm	A	Dl
	13	43,5	39,80	28	25	10-12-15
	14	46,5	42,80	31	25	10-12-15
	15	49,5	45,81	34	25	15-19-20
	16	52,5	48,82	37	28	15-19-20
	17	55,5	51,83	40	28	15-19-20
	18	58,6	54,85	43	28	15-19-20-24-25
	19	61,6	57,87	45	28	15-19-20-24-25
	20	64,6	60,89	46	28	15-19-20-24-25
	21	67,6	63,91	48	28	15-19-20-24-25
	22	70,6	66,95	50	28	15-19-20-24-25
	23	73,7	69,95	52	28	15-19-20-24-25
	24	76,7	72,97	54	28	20-24-25-28-30
	25	79,7	76,00	57	28	20-24-25-28-30
	30	94,8	91,12	60	30	20-24-25-28-30

1/2鈥?x 5/16鈥?/strong> 12.7x7.75mm 08B-1For Chain acc. to DIN8187Chain聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 mm Picth聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 12.7 Internal width聽聽聽聽聽聽聽 7.75 Roller dia.聽聽聽聽聽聽聽聽聽聽聽聽 7.20	Z	de	dp	dm	A	Dl
	12	53,9	49,07	33	28	15-19-20
	13	57,9	53,06	37	28	15-19-20
	14	61,9	57,07	41	28	15-19-20
	15	65,9	61,9	45	28	15-19-20-24-25
	16	69,9	65,10	50	28	15-19-20-24-25
	17	74,0	69,11	52	28	15-19-20-24-25
	18	78,0	73,14	56	28	20-24-25-28-30
	19	82,0	77,16	60	28	20-24-25-28-30
	20	86,0	81,19	64	28	20-24-25-28-30
	21	90,1	85,22	68	28	20-24-25-28-30
	22	94,1	89,24	70	28	20-24-25-28-30
	23	98,1	93,27	70	28	20-24-25-28-30
	24	102,1	97,29	70	28	20-24-25-28-30
	25	106,2	101,33	70	28	20-24-25-28-30
	30	126,3	121,50	80	30	25-28-30

5/8鈥?x 3/8鈥?/strong> 15.875x9.65mm 10B-1For Chain acc. to DIN8187 Chain聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 mm Picth聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 15.875 Internal width聽聽聽聽聽聽聽 9.65 Roller dia.聽聽聽聽聽聽聽聽聽 10.16	Z	de	dp	dm	A	Dl
	12	68,2	61,34	42	30	15-19-20-24-25
	13	73,2	66,32	47	30	15-19-20-24-25
	14	78,2	71,34	52	30	15-19-20-24-25
	15	83,2	76,36	57	30	20-24-25-28-30
	16	88,3	81,37	60	30	20-24-25-28-30
	17	93,3	86,39	60	30	20-24-25-28-30
	18	98,3	91,42	70	30	20-24-25-28-30
	19	103,3	96,45	70	30	20-24-25-28-30
	20	108,4	101,49	75	30	20-24-25-28-30
	21	113,4	106,52	75	30	20-24-25-28-30
	23	123,5	116,58	80	30	25-28-30-35-38-40
	24	128,5	121,62	80	30	25-28-30-35-38-40
	25	133,6	126,66	80	30	25-28-30-35-38-40

3/4鈥?x 7/16鈥?/strong> 19.05x11.68mm 12B-1For Chain acc. to DIN8187Chain聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 mm Picth聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 19.05 Internal width聽聽聽聽 11.68 Roller dia.聽聽聽聽聽聽聽聽 12.07	Z	de	dp	dm	A	Dl
	12	81,8	73,60	52	35	20-24-25
	13	87,8	79,53	58	35	20-24-25-28-30
	14	93,8	85,61	64	35	20-24-25-28-30
	15	99,8	91,63	70	35	20-24-25-28-30
	16	105,8	97,65	75	35	20-24-25-28-30
	17	111,9	103,67	80	35	25-28-30-35
	18	117,9	109,71	80	35	25-28-30-35
	19	123,9	115,75	80	35	25-28-30-35
	20	130,0	121,78	80	35	25-28-30-35
	21	136,0	127,82	90	40	30-35-38-40
	22	142,0	133,86	90	40	30-35-38-40
	23	148,1	139,90	90	40	30-35-38-40
	24	154,1	145,94	90	40	30-35-38-40
	25	160,2	152,00	90	40	30-35-38-40

1" x 17.02mm 25.4x17.02mm 16B-1For Chain acc. to DIN8187 Chain聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 mm Picth聽聽聽聽聽聽聽聽聽聽聽聽聽聽聽 25.4 Internal width聽聽 17.02 Roller dia. 15.88	Z	de	dp	dm	A	Dl
	12	109,7	98,14	69	40	25-28-30
	13	117,7	106,12	78	40	25-28-30
	14	125,7	114,15	84	40	30-35-38
	15	133,7	122,17	92	40	30-35-38-40
	16	141,8	130,20	100	45	30-35-38-40
	17	149,8	138,22	100	45	35-38-40-45-50
	18	157,8	146,28	100	45	35-38-40-45-50
	19	165,9	154,33	100	45	35-38-40-45-50
	20	173,9	162,38	100	45	35-38-40-45-50
	21	182,0	170,43	110	50	35-38-40-45-50
