Locking Assembly K Series Power Locks

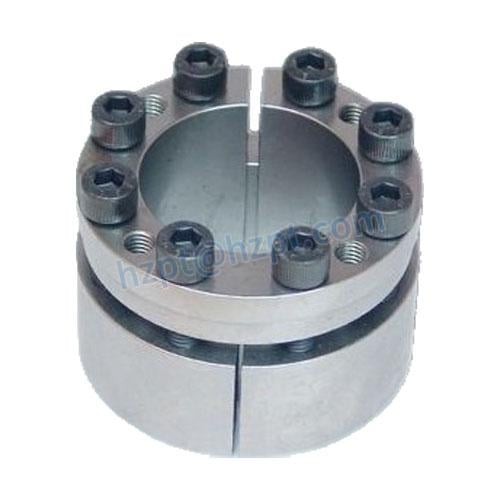

K Series Locking Assembly

K Series locking assembly is an assembly that produces a keyless coupling between a machine part and a shaft. The locking assembly may include several keyless elements. It may include a cap ring with recesses, a nut, and a washer. It is designed to eliminate the need for expensive tools and pressurized equipment. It is also easy to assemble and disassemble.

K Series Locking Assembly Features

• Medium torque
• Self-centering
• Self-locking
• Suited for thin-walled hubs
• No axial movement during clamping

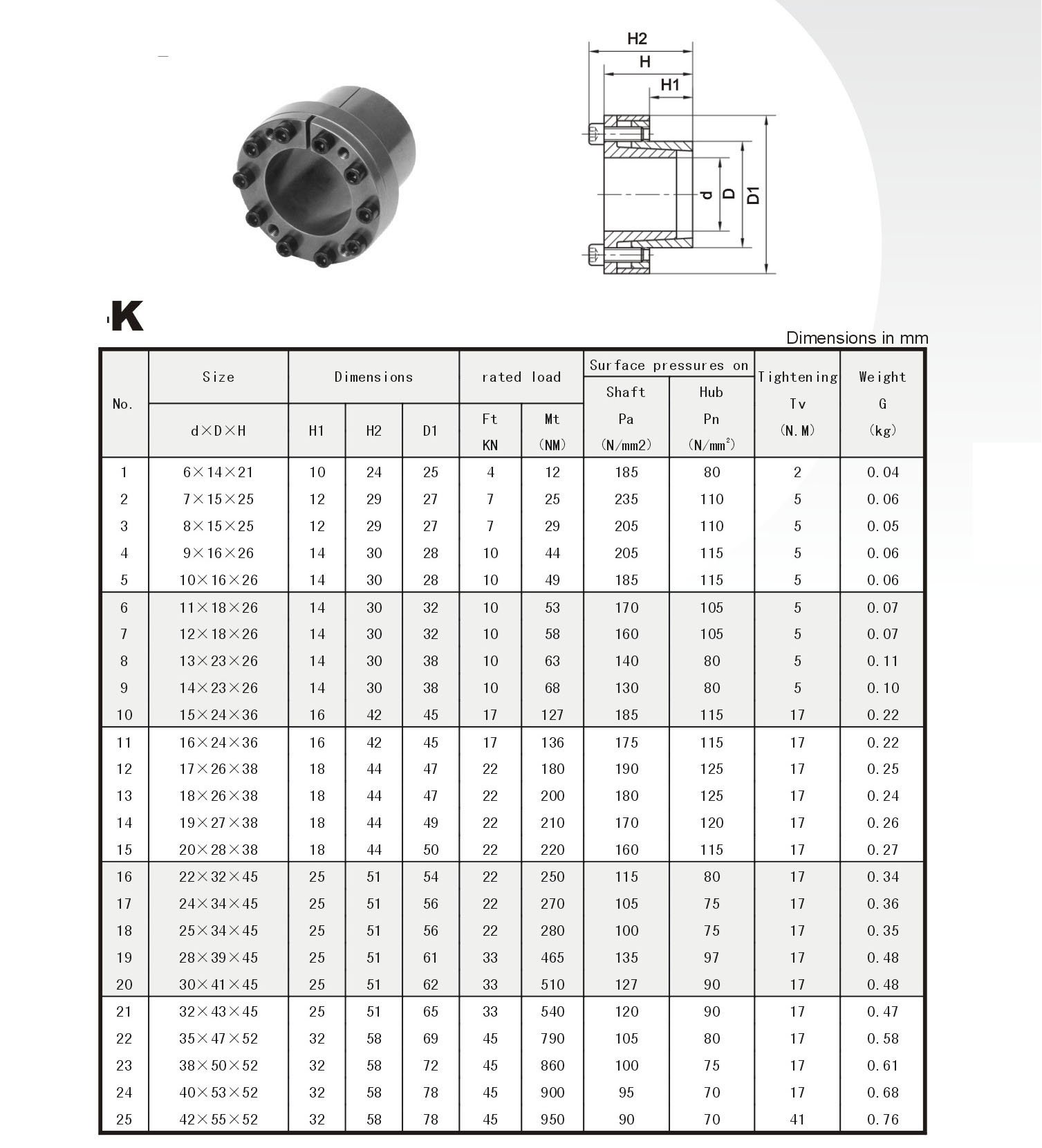

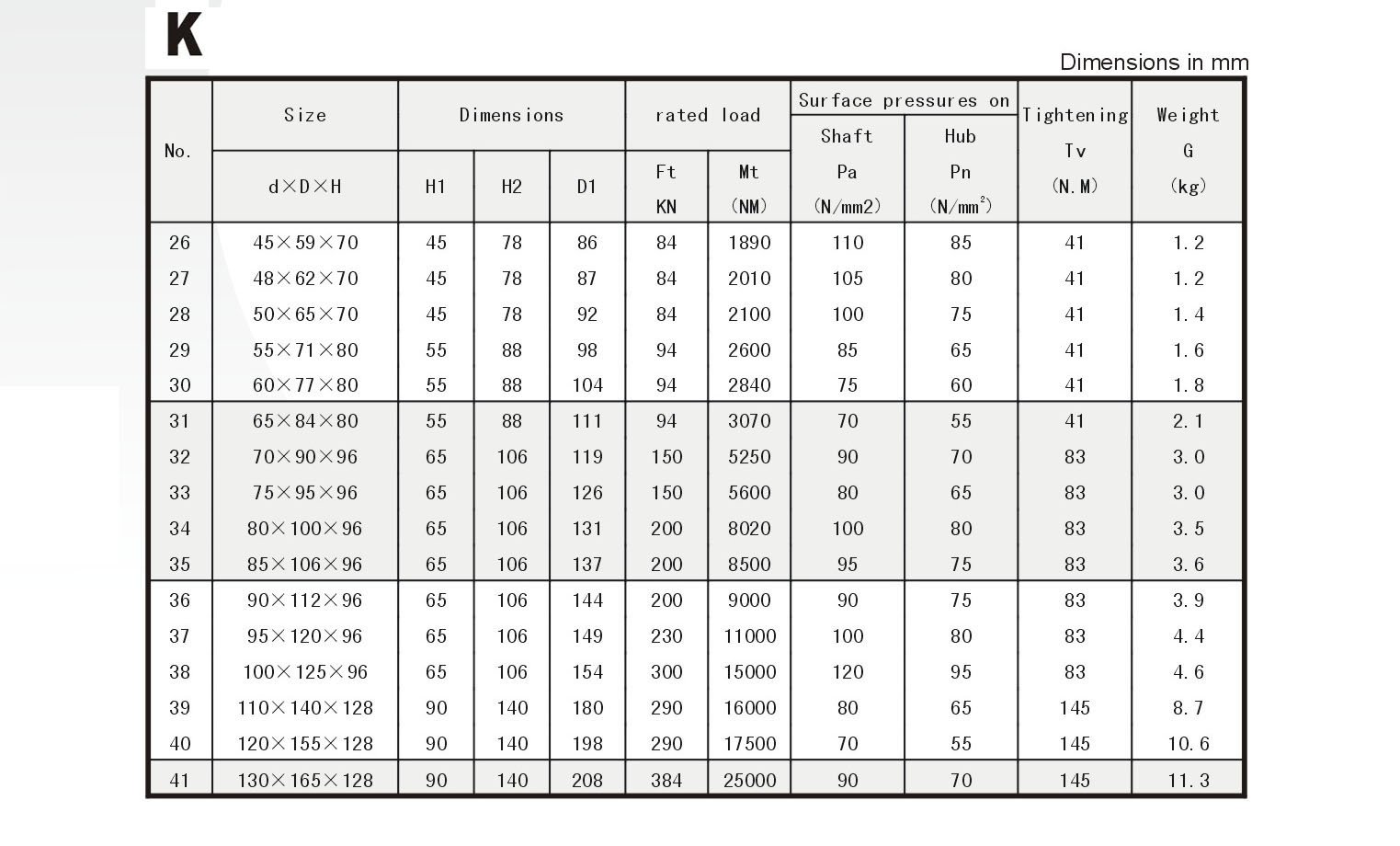

K Series Locking Assembly Specifications

K Series Locking Assembly Technical Qualification

Tolerance: Shaft h8/ Hub H8

Surface Roughness: Ra max 12.5

Ordering Code

K-01 6X14X21

Part No. d X D X H

HZPT offers a wide range of聽locking assemblies of high quality at reasonable prices!聽Contact us聽now if you are interested!

Advantages of Keyless Shaft Locking Assemblies

Keyless shaft locking assemblies are characterized by these advantages as well as features in comparison to the traditional mechanical coupling system of keyless overfilling co-coupling as well as keyed.

• Simple assembly and manufacturing.聽The shaft and hole used for mounting the locking assembly don't require precision manufacturing tolerances, such as interference fit. Moreover, there is no requirement to cool, heat or utilize pressurized equipment to set up the locking device. All you have to do is tighten the screw to the torque specified.
• Easy interchangeability and simple removal.聽When disassembling, loosen up the compression screw and then make use of the ejector screw to remove the load; then, you can move the linkage state up as well as the locking assembly. The linkage assembly is separated.
• The coupling that locks this device is able to withstand the weight of the rigors of heavy loads.聽The structure of the coupling can be modified into different styles to suit.聽In order to meet the load, A locking assembly isn't enough, but it is also several tandem combos.
• This locking system is a precise gapless, keyless connection.聽The reliable elimination of the transmission of keys due to the stress concentration roll key as well as other disadvantages.聽It features easy and rapid installation, a long lifespan, as well as is not difficult to corrode.聽It is not prone to sliding around in the working, and won't be damaged.
• The locking assembly is easily adjusted with no fixation axial within the axial installation to the desired axial size as well as the relative location of the components.
• As the application, different types of mechanical couplings could be replaced by this locking system.聽Make the transmission structure simpler or make it an integral component of mechanical components, like the elastic diaphragm couplings that are clearance-free.
• The locking assembly operates in a temperature range of -30oC up to 200oC and is constructed from various materials according to the environment in which it is used and various media.
