S Series Locking Assemblies

聽S Series Locking Assemblies

Features of S Series Locking Assembly

• Medium torque
• Self-centering
• Self-locking
• Suited for axial locking of other components
• No axial movement during clamping

Technical Qualification of S Series Locking Assembly

Tolerance: Shaft h8/ Hub H8

Surface Roughness: Ra max 12.5

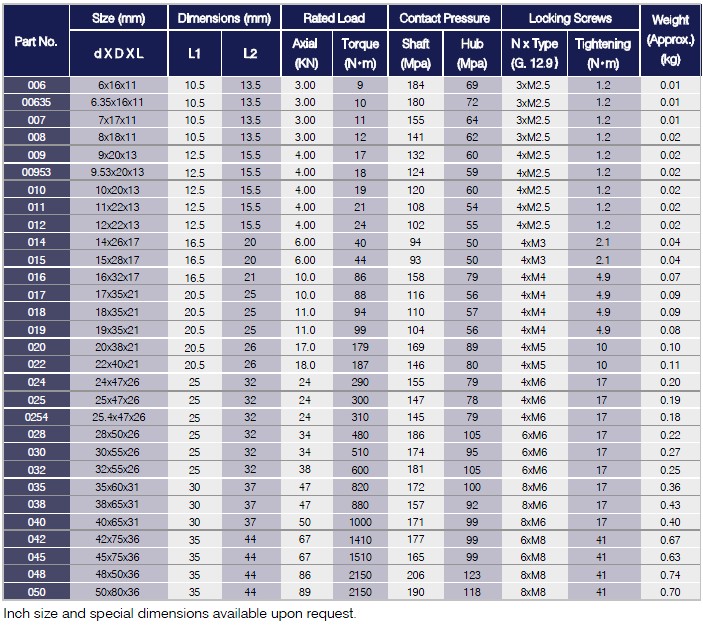

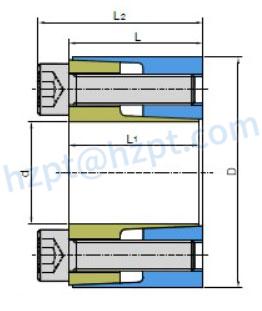

Specifications of S Series Locking Assembly

(Screw head height=Screw diameter)

Advantages of S Series Locking Assembly

S Series Locking Assembly mainly has the following advantages:

• high alignment accuracy;
• easy installation/adjustment/dismantling;
• high strength, stable and reliable coupling;
• can protect equipment from damage when overloaded, especially suitable for transferring heavy loads.
• Widely used in heavy machinery, wind power generation, packaging machinery, printing machinery, CNC machine tools, automation equipment and other fields.

Ordering Code

S-006 6X16X11

Part No. d X D X L
