Product Description

SUS FB Standard Sprockets (Japanese Standard) SUS FBN25B

聽

Chain Type	No.25	(1/4inch)
Pitch	(P)	6.35 mm
Internal Width	(W)	3.18 mm
Roller Dia.	(Dr)	3.30 mm
Teeth width	(T)	2.8 mm

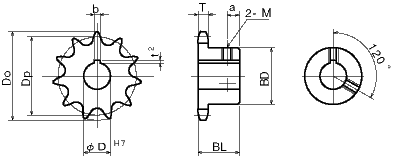

Outside Dia. Do	Pitch Dia. Dp	Hub		a	Weight (kg)	Sprockets No.		Bore Dia. H7
Outside Dia. Do	Pitch Dia. Dp	BD	BL	a	Weight (kg)	Type	Teeth No.	Bore Dia. H7
36	32.55	21	16	6	0.06	SUS FBN25B	16	10
38	34.56	23	16	6	0.07		17	10
40	36.57	25	16	6	0.07		18	10
42	38.58	26	16	6	0.08		19	10,12
44	40.59	28	16	6	0.08		20	10,12
46	42.61	30	18	7	0.09		21	12,15
48	44.62	30	18	7	0.10		22	12,15
50	46.63	30	18	7	0.11		23	12,15
52	48.65	30	18	7	0.12		24	12,15
54	50.66	30	18	7	0.14		25	12,15
56	52.68	30	18	7	0.14		26	12,15
58	54.70	30	18	7	0.15		27	12,15
60	56.71	30	18	7	0.15		28	12,15
64	60.75	30	18	7	0.16		30	12,15
68	64.78	30	18	7	0.20		32	12,15
