Product Description

SUS FB Standard Sprockets (Japanese Standard) SUS FBN60B

聽

Chain Type	No.60
Pitch	(P)	19.05 mm (3/4inch)
Internal width	(W)	12.70 mm
Roller Dia.	(Dr)	11.91 mm
Teeth width	(T)	11.7 mm

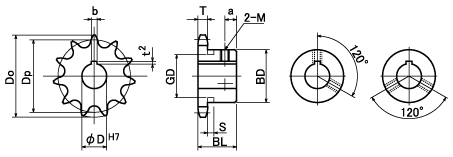

Outside Dia. Do	Pitch Dia. Dp	Hub		a	Weight (kg)	Sprockets No.		Bore H7
Outside Dia. Do	Pitch Dia. Dp	BD	BL	a	Weight (kg)	Type	Teeth No.	Bore H7
68	61.65	*49	32	6	0.49	SUS FBN60B	10	20,22,25
76	67.62	*51	32	6	0.60		11	20,22,25
83	73.60	51	32	8	0.69		12	20,22,25
89	79.60	57	32	8	0.81		13	20,22,25,28
95	85.61	62	32	8	0.96		14	20,22,25,28
101	91.62	68	32	8	1.10		15	20,22,25,28,30,32,35,38
107	97.65	73	32	8	1.30		16	25,28,30,32,35,38
113	103.67	73	32	8	1.40		17	25,28,30,32,35,38
119	109.71	83	40	12	2.00		18	25,28,30,32,35,38,40
126	115.74	83	40	12	2.10		19	25,28,30,32,35,38,40
132	121.78	83	40	12	2.20		20	25,28,30,32,35,38,40
138	127.82	83	40	12	2.30		21	30,35,40
144	133.86	83	40	12	2.50		22	30,35,40
150	139.90	83	40	12	2.50		23	30,35,40
156	145.95	83	40	12	2.60		24	30,35,40
162	151.99	83	40	12	2.70		25	30,35,40
193	182.25	83	40	12	3.30		30	30,35,40
