SUS FB Standard Sprockets SUS FBN80B
SUS FB Standard Sprockets (Japanese Standard) SUS FBN80B聽 Chain Type
No.80Pitch
(P)TD>
25.4 mm (1inch)Internal width
(W)
15.88 mmRoller Dia.
(Dr)
15.88 mmTeeth width
(T)

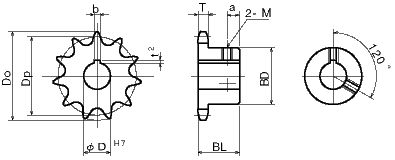

14.6 mm Outside Dia.
Do
Pitch Dia.
Dp
Hub
a
Weight
(kg)
Sprockets No.
bore
H7BD
BL
Type
Teeth No.93
82.19
52
40
12
1.02
SUS FBN......
SUS FB Standard Sprockets (Japanese Standard) SUS FBN80B
聽 |
| Chain Type | No.80 | |
| Pitch | (P)TD> | 25.4 mm (1inch) |
| Internal width | (W) | 15.88 mm |
| Roller Dia. | (Dr) | 15.88 mm |
| Teeth width | (T) | 14.6 mm |
| Outside Dia. Do |
Pitch Dia. Dp |
Hub | a | Weight (kg) |
Sprockets No. | bore H7 |
||
| BD | BL | Type | Teeth No. | |||||
| 93 | 82.19 | 52 | 40 | 12 | 1.02 | SUS FBN80B | 10 | 25,30 |
| 110 | 98.14 | 67 | 40 | 12 | 1.60 | 12 | 25,30 | |
| 118 | 106.14 | 77 | 40 | 12 | 1.90 | 13 | 25,30 | |
| 127 | 114.15 | 77 | 40 | 12 | 2.15 | 14 | 25,30 | |
| 135 | 122.17 | 93 | 40 | 12 | 2.30 | 15 | 25,30 | |
| 143 | 130.20 | 93 | 40 | 12 | 2.50 | 16 | 30,35 | |
| 176 | 162.37 | 93 | 40 | 12 | 3.60 | 20 | 35,40 | |
|
