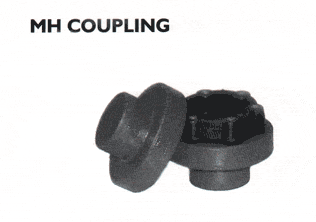

MH Couplings

MH Couplings

MH series is a flexible coupling built based on synthetic rubber with two similar bodies of cast iron. The high-quality cast iron flange is mainly used for power transmission and for the protection of flexible rubber. Its flexible rubber offers excellent durability and quality coupling performance. MH couplings consist of two flanges and elastic rings, capable of compensating for all types of shaft misalignment. The elastic ring is made of synthetic rubber with a steel core reinforcement to increase the reliability and maximum operating speed of the coupling. The damping properties of the rubber absorb and suppress torsional vibrations and operate effectively in the temperature range of -40 to +100 掳C. Rubber is also resistant to oil, dirt, grease, moisture, ozone and many chemical solvents.

In addition, the low-noise system runs smoothly and the MH coupling is easy to install and simple to maintain. It is also suitable for applications such as pumps, fans, compressors, vehicles, transportation equipment, construction workers, cement mixers, tractors, transmission machinery, metalworking machinery, road rollers, etc.

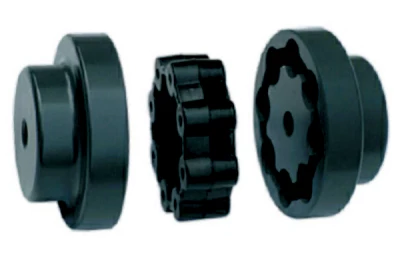

Construction of MH Couplings

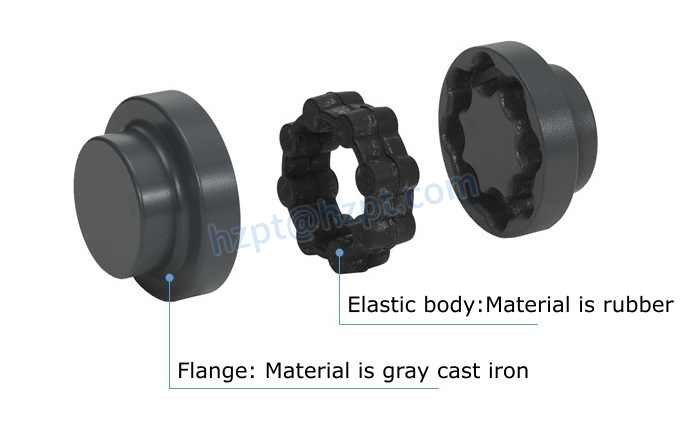

Flange: Material is gray cast iron (FC200).

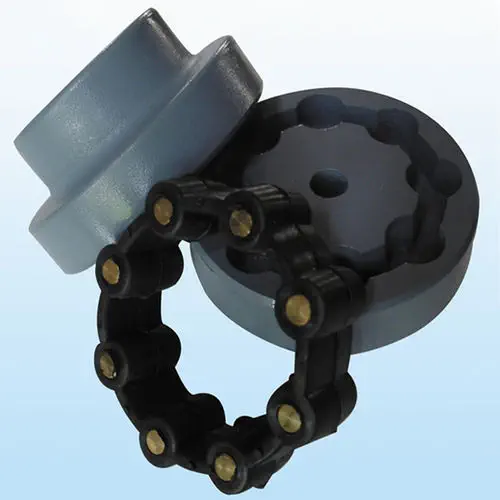

Elastic body: Standard type consisting of synthetic rubber alone and super type (MHP type) consisting of synthetic rubber with an iron core for reinforcement.

The China MH Coupling that we produce has great flexibility and excellent shock mitigation performance. They are also easy to install and maintenance-free.

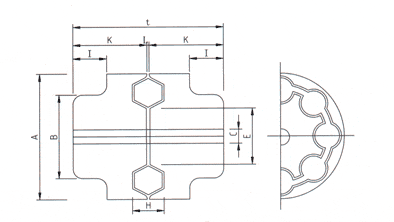

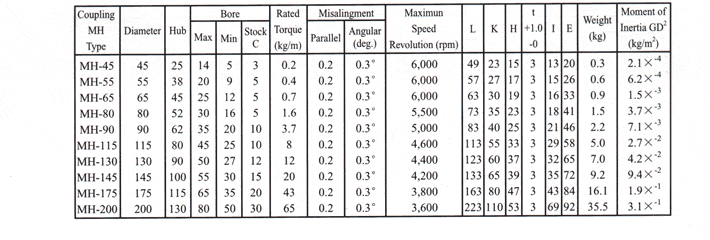

MH Coupling Specifications

Applications of MH Couplings

Various pumps Reducer Machine tools Conveyor system Fan Speed changer Chemical equipment Injection molding system Mixer Wood works machine Construction machine Compression machine Generator Textile machine Car wash machine Compressor Paper making machine

There are several MH coupling manufacturers, and you can choose the one that meets your needs. HZPT is one of the leading coupling manufacturers in China. We have high-durability and high-performance MH couplings for sale. Contact us聽now if you are interested.
