NK Standard Sprockets B Type NK11SB
NK Standard Sprockets B Type NK11SB
聽Chain
No.11Pitch
(P)
3.7465 mmInternal Width
(W)
1.83 mmOutside Dia.
(Dr)
2.285 mmTeeth Width
(T)
1.6 mm Sprocket No.
Outside Dia.
Do
Pitch Dia.
Dp

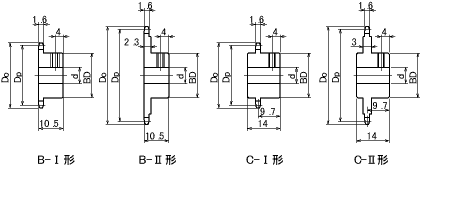

Form
Bore Dia.
Hub
Set
Screws
Weight
(g)Type
Z
Min.
Max
BD
BLNK11SSB
12
16.2
14.48
B-I
4
6
9.4
10.5
M3X0.5
5.915
19......
NK Standard Sprockets B Type NK11SB
聽
| Chain | No.11 | |
| Pitch | (P) | 3.7465 mm |
| Internal Width | (W) | 1.83 mm |
| Outside Dia. | (Dr) | 2.285 mm |
| Teeth Width | (T) | 1.6 mm |
| Sprocket No. | Outside Dia. Do |
Pitch Dia. Dp |
Form | Bore Dia. | Hub | Set Screws |
Weight (g) |
||||
| Type | Z | Min. | Max | BD | BL | ||||||
| NK11SSB | 12 | 16.2 | 14.48 | B-I | 4 | 6 | 9.4 | 10.5 | M3X0.5 | 5.9 | |
| 15 | 19.9 | 18.02 | 9 | 13 | 11.5 | ||||||
| 16 | 21.1 | 19.2 | 14 | 13.5 | |||||||
| 18 | 23.5 | 21.58 | 11 | 16 | 17.7 | ||||||
| 20 | 25.9 | 23.95 | 6 | 13 | 19 | M4X0.7 | 23.3 | ||||
| 24 | 30.7 | 28.7 | 25.7 | ||||||||
| 28 | 35.5 | 33.46 | 28.7 | ||||||||
| 30 | 37.9 | 35.84 | B-II | 6 | 13 | 19 | 29.7 | ||||
| 34 | 42.7 | 40.6 | 37.9 | ||||||||
| 36 | 45.1 | 42.99 | 40.7 | ||||||||
| 40 | 49.8 | 47.75 | 46.5 | ||||||||
| 48 | 59.4 | 57.28 | 60.5 | ||||||||
| 12 | 16.2 | 14.48 | C-I | 4 | 6 | 9.4 | 14 | M3X0.5 | 7.4 | ||
| 15 | 19.9 | 18.02 | 9 | 13 | 14.7 | ||||||
| 16 | 21.1 | 19.2 | 14 | 17.3 | |||||||
| 18 | 23.5 | 21.58 | 11 | 16 | 22.8 | ||||||
| 20 | 25.9 | 23.95 | 6 | 13 | 19 | M4X0.7 | 30.3 | ||||
| 24 | 30.7 | 28.7 | 32.7 | ||||||||
| 28 | 35.5 | 33.46 | 35.7 | ||||||||
| 30 | 37.9 | 35.84 | C-II | 39.3 | |||||||
| 34 | 42.7 | 40.6 | 48.9 | ||||||||
| 36 | 45.1 | 42.99 | 52.4 | ||||||||
| 40 | 49.8 | 47.75 | 59.9 | ||||||||
| 48 | 59.4 | 57.28 | 77.8 | ||||||||
