SUS FB Standard Sprockets (Japanese Standard) SUS FBP11B

SUS FB Standard Sprockets SUS FBP11B 聽

Chain Type	No.11
Pitch	(P)	3.7465 mm
Internal Width	(W)	1.83 mm
Roller Dia.	(Dr)	2.285 mm
Teeth width	(T)	1.6 mm

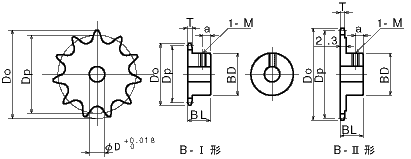

Outside Dia. Do	Pitch Dia. Dp	Hub		a	Form	Sprockets No.		Bore dia. H7	Weight (g)
Outside Dia. Do	Pitch Dia. Dp	BD	BL	a	Form	Type	Teeth No.	Bore dia. H7	Weight (g)
16.2	14.475	9.4	10.5	4	B-1Form	SUS FBP11B	12	5	5.90
19.9	18.020	13	10.5	4			15	5,6	11.50
21.1	19.204	14	10.5	4			16	5,6,8	13.50
23.5	21.575	16	10.5	4			18	5,6,8	17.70
25.9	23.949	19	10.5	4			20	8,10	23.30
30.7	28.703	19	10.5	4			24	8,10	25.70
35.5	33.462	19	10.5	4			28	8,10	28.70
37.9	35.842	19	10.5	4	B-2Form		30	8,10	29.70
42.7	40.604	19	10.5	4			34	8,10	37.90
45.1	42.986	19	10.5	4			36	8,10	40.70
49.8	47.751	19	10.5	4			40	8,10	46.50
59.4	57.283	19	10.5	4			48	8,10	60.50
