Product Description

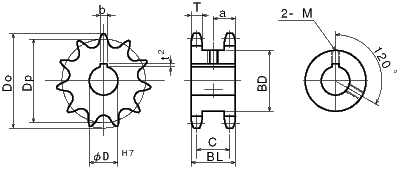

FB Single Double Sprockets (Japanese Standard) FBN 40SD

聽

Chain	No.40
Pitch	(P)	12.7 mm聽 (1/2inch)
Internal width	(W)	7.95 mm
Roller dia.	(Dr)	7.95 mm
Tooth width	(T)	7.2 mm聽聽 (C) 27.8銆€mm

Outside dia. Do	Pitch dia. Dp	Hub		a	Weight (kg)	Sprocket No.		Bore聽^dia. H7
Outside dia. Do	Pitch dia. Dp	BD	BL	a	Weight (kg)	Type	Teeth No.	Bore聽^dia. H7
55	49.07	34	35	17.5	0.33	FBN 40SD	12	15,18
59	53.07	38	35	17.5	0.40		13	18,20
63	57.07	42	35	17.5	0.49		14	18,20
67	61.08	46	35	17.5	0.57		15	20,25
71	65.10	50	35	17.5	0.66		16	20,25
76	69.12	54	35	17.5	0.76		17	25,28,30
80	73.14	59	35	17.5	0.89		18	25,28,30,35
84	77.16	63	35	17.5	1.00		19	25,28,30,35
88	81.18	67	35	17.5	1.14		20	25,28,30,35
92	85.21	71	35	17.5	1.23		21	25,28,30,35
