Plate Wheels for Conveyor Chains P50 P75

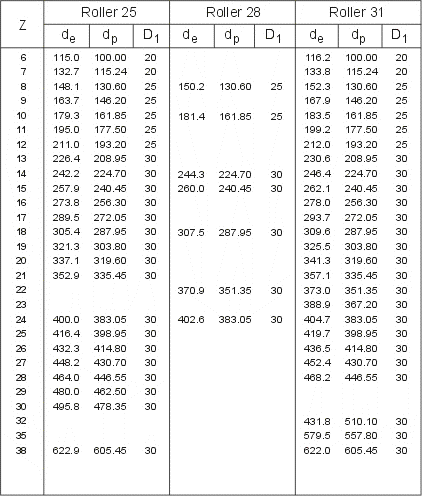

Plate wheels for Conveyor Chains P50

plate wheels

• Pitch: 50 mm
• Internal width: 11.5 mm
• Roller: 25mm
• Tooth width B: 10.5 mm

Chain

• Pitch: 50 mm
• Internal width: 15 mm
• Roller: 28 mm
• Tooth width B: 13.8 mm

Chain

• Pitch: 50 mm
• Internal width: 15 mm
• Roller: 31 mm
• Tooth width B: 13.8 mm

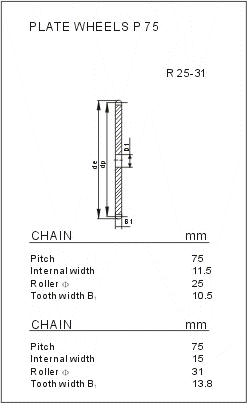

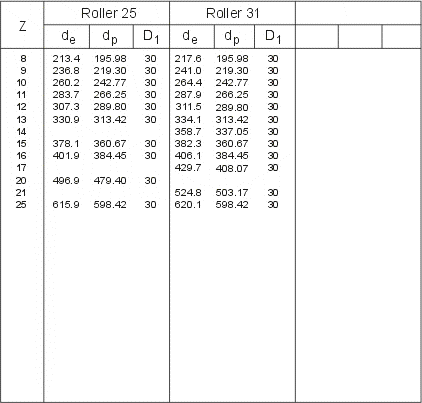

Plate wheels for Conveyor Chains P75

R25-31

Chain

• Pitch: 75 mm
• Internal width: 11.5 mm
• Roller: 25 mm
• Tooth width B: 10.5 mm

Chain

• Pitch: 75 mm
• Internal width: 15 mm
• Roller: 31 mm
• Tooth width B: 13.8 mm
