Plate Wheels for Conveyor Chains P20 P30
Plate wheels for Conveyor Chains P20
plate wheels聽 20*16 mm For Chain ACC. DIN8164
plate wheelsTooth radius r: 20 mm
Radius width C: 1.7 mm
Tooth width B: 14.5 mmChainPitch: 20mm
Internal width: 16mm
Roller: 12mmPlate wheels for Conveyor Chains P30
plate wheels 30*17.02 mm For Chain ACC. DIN8164
pla......
Plate wheels for Conveyor Chains P20
plate wheels聽 20*16 mm For Chain ACC. DIN8164
plate wheels
- Tooth radius r: 20 mm
- Radius width C: 1.7 mm
- Tooth width B: 14.5 mm
Chain
- Pitch: 20mm
- Internal width: 16mm
- Roller: 12mm

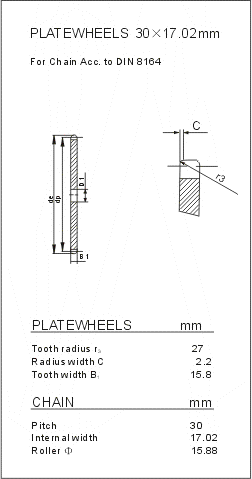

Plate wheels for Conveyor Chains P30
plate wheels 30*17.02 mm For Chain ACC. DIN8164
plate wheels
- Tooth radius r: 27 mm
- Radius width C: 2.2 mm
- Tooth width B: 15.8 mm
Chain
- Pitch: 30 mm
- Internal width: 17.02 mm
- Roller: 15.88 mm
