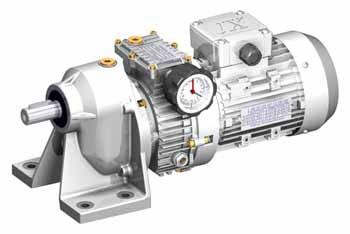

TXF Series Planet Cone-disk Stepless Speed Variator

TXF Series Planet Cone-disk Stepless Speed Variator

TXF005/071, TXF010/80

A stepless mechanical speed variator is the ideal choice for any task that needs an adjustable output speed.聽These devices consist of two conical disks which move in opposite directions and are able to regulate the speeds of an engine or fan or other gadget.聽They are also maintenance-free mechanical speed variators come with a life-time lubrication system.

1. Model & mark

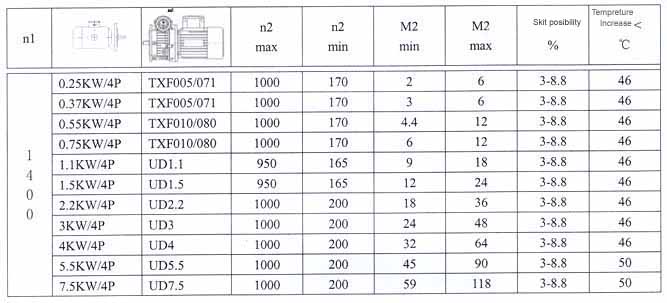

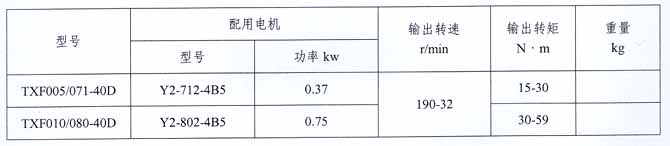

2. Basic variator characteristic table

3. Performance parameter for basic model & first gear speed reducer

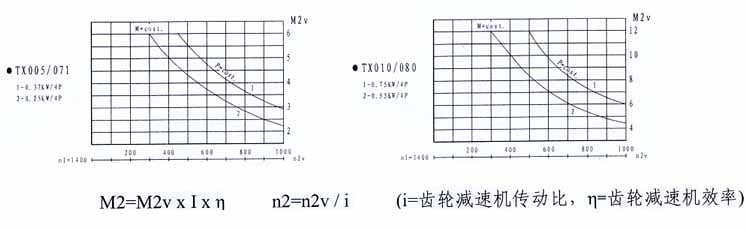

4. Touque curve drawing

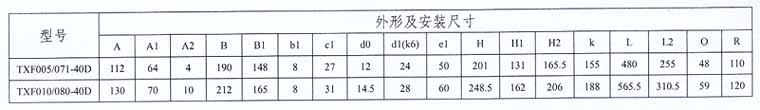

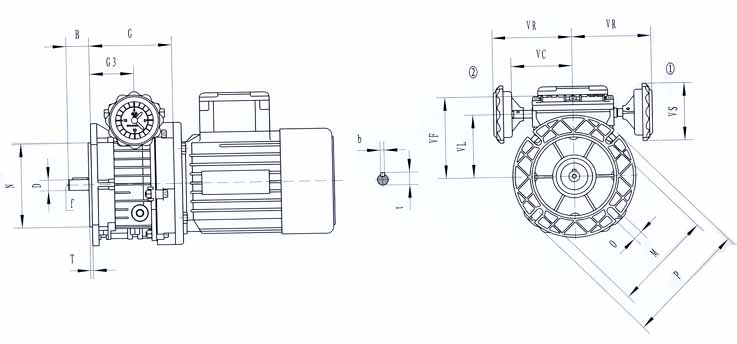

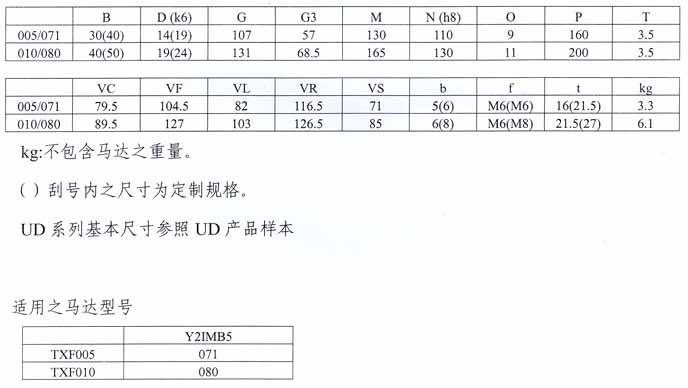

5. Basic model size table

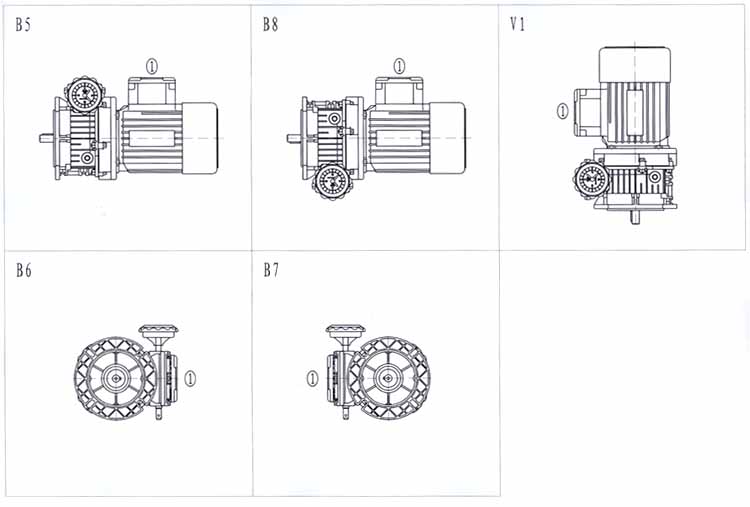

6. TXF installation direction drawing

7. Model & mark of basic model & first gear speed reducer

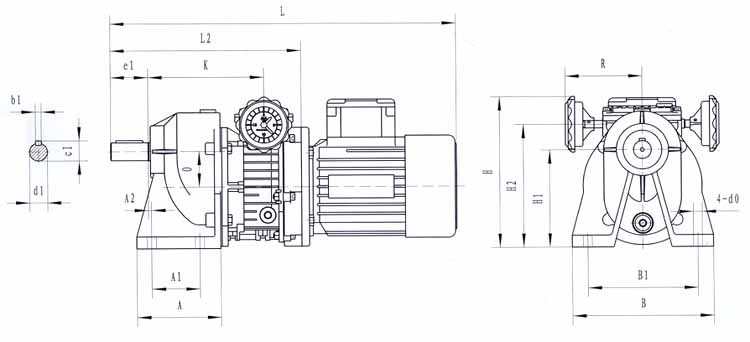

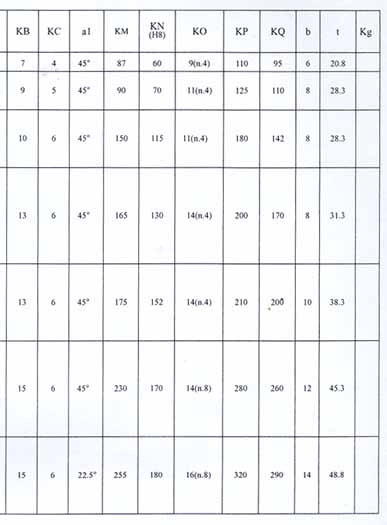

8. TXF & first gear speed reducer size table

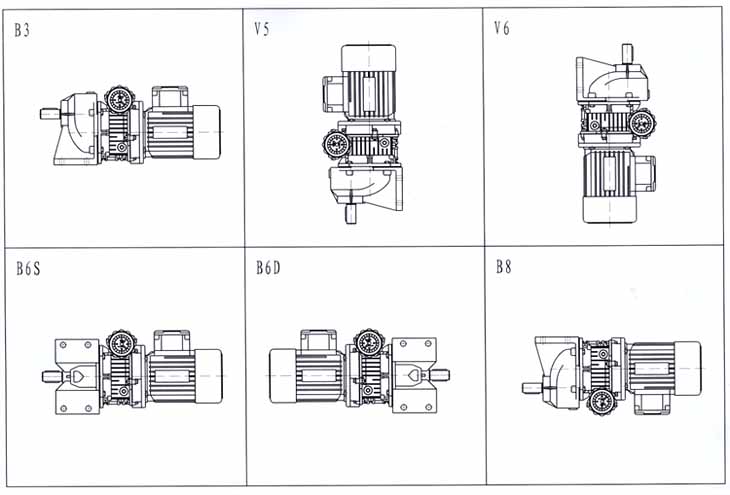

9. Installation direction drawing of basic

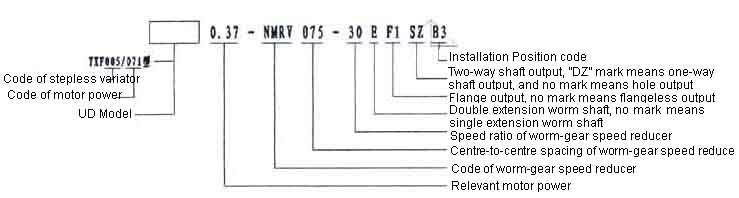

10. Model & mark of basic model & EP-NMRV

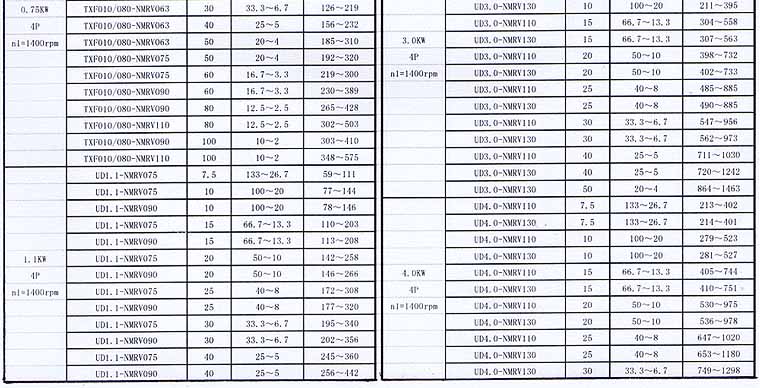

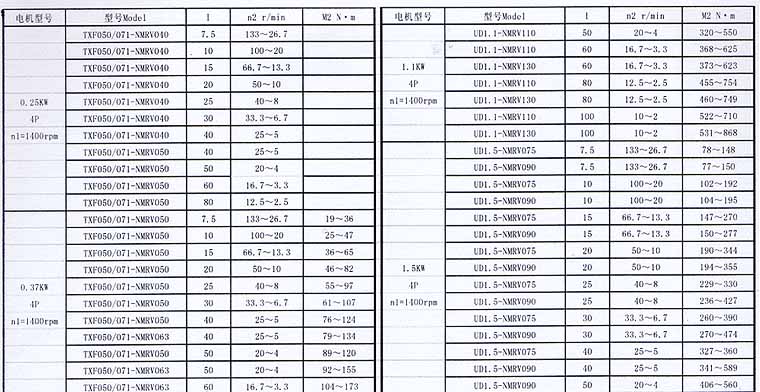

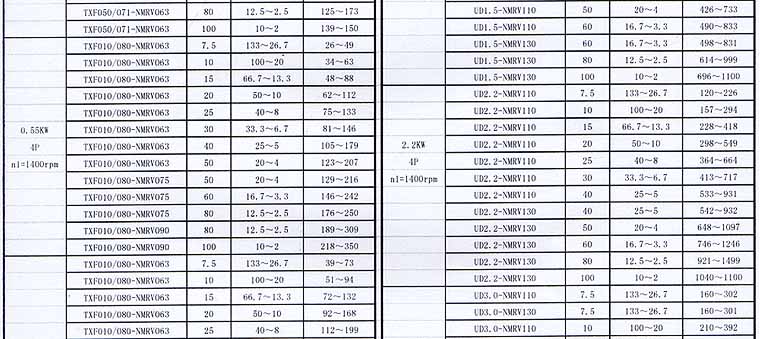

11. Characteristic table of basic model & EP-NMRV worm-gear speed reducer

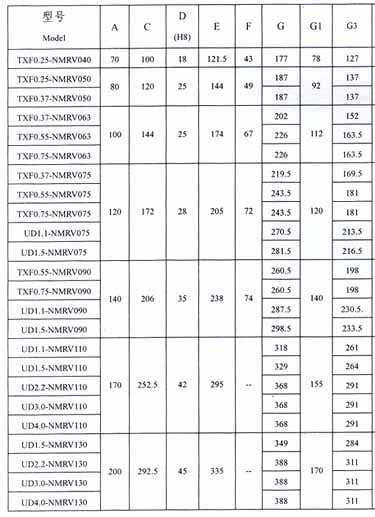

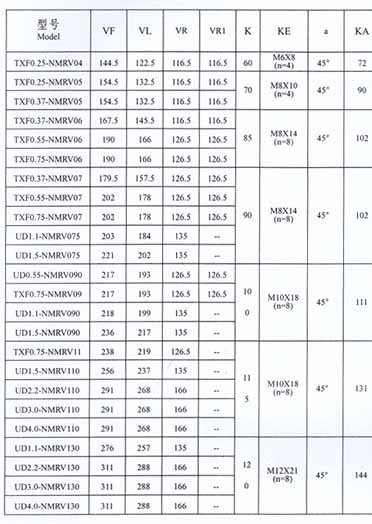

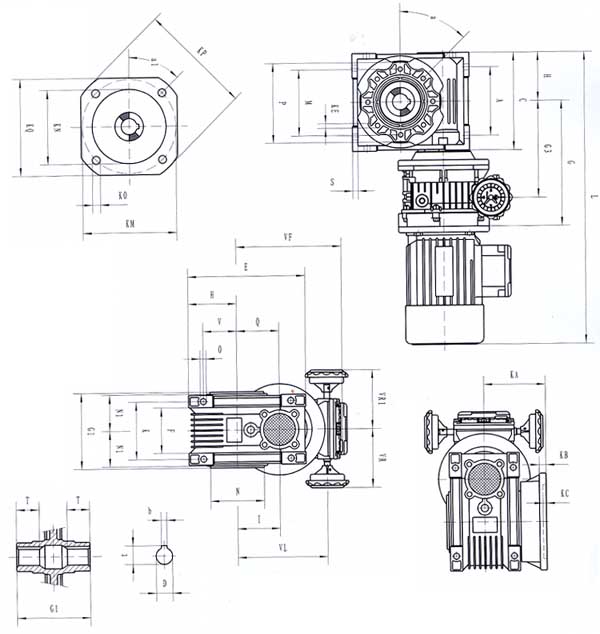

12.Combined outline & installation size for base model & EP-NMRV

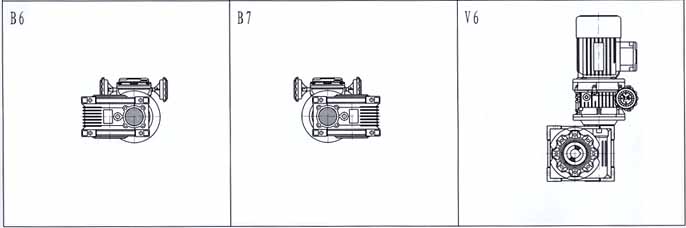

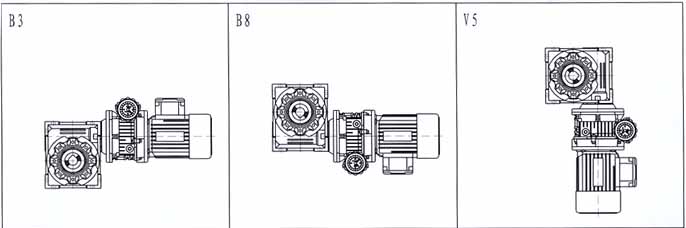

13. Combined Installation direction drawing of basic model & EP-NMRV

If you are in need of one of these products, please contact us! HZPT, one of the leading variable speed drive manufacturers in China, manufactures these devices at a reasonable price and comes with reliable quality.
