Product Description

Cyclo Drive Reducer BLED Type Cycloidal Gearbox

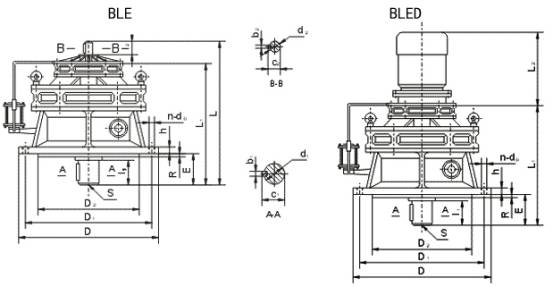

Appearance and installation dimension

Frame	Installation dimension								Shaft end dimension								Outer side dimension				Weight Kg
	D₁	D₂	E	h	R	S	聽Hole		Output shaft				Input shaft				D	Double shaft style	Flange style
							聽n	聽d₀	d₁	b₁	c₁	l₁	d₂	b₂	c₂	l₂		L	L₁	L₂
聽120	230	200	80	15	4	M10	6	11	45	14	48.5	64	15	5	17	22	260	368	309	According to motor size	72
聽130	聽310	270		20	5	M12		13	55	16	59	75					340	423	351		87
聽131													18	6	22.5	35		453	374		95
聽141	聽360	320	99	22			8	15	70	20	74.5	92					400	521	451		145
聽152	聽450	400	115	30		M16	12	18	90	25	95	108	22		24.5	40	490	616	540		215
聽153													30	8	33	55		656	574		230
聽163	聽520	455	173	35	8	M20		24	100	28	106	130					580	781	660		440
聽174	聽590	520	180	40	10				120	32	127	165	35	10	38	60	650	865	766		700
聽184	聽800	680	215	45		2-M20		34	140	36	148	200					880	1081	972		1280
