S Series Single Standard Worm Gear Reducer

S(WPS)Shaft DirectionSIZE RATIO A AB B BB CC E F H HL LL M N G Z INPUT SHAFT OUTPUT SHAFT KG LHS U T脳V LS S W脳Y40 1/10 1/20 1/30 1/40 1/50 1/60 142 85 112 74 40 70 80 135 100 60 90 100 12 10 25 12 4脳2.5 28 14 5脳3 3.8 ---50 175 105 145 95 50 95 110 180 130 80 120 140 15 11 30 12 4脳2.5 40 17 5脳3 7 0.4......

Send Inquiry

Product Description

S(WPS)

Shaft Direction
S Series Single Standard Worm Gear Reducer

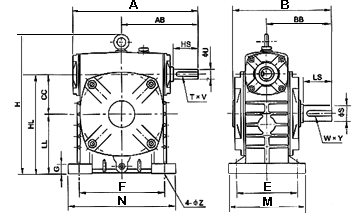

SIZE	RATIO	A	AB	B	BB	CC	E	F	H	HL	LL	M	N	G	Z	INPUT SHAFT			OUTPUT SHAFT			KG	L
SIZE	RATIO	A	AB	B	BB	CC	E	F	H	HL	LL	M	N	G	Z	HS	U	T脳V	LS	S	W脳Y	KG	L
40	1/10 1/20 1/30 1/40 1/50 1/60	142	85	112	74	40	70	80	135	100	60	90	100	12	10	25	12	4脳2.5	28	14	5脳3	3.8	---
50		175	105	145	95	50	95	110	180	130	80	120	140	15	11	30	12	4脳2.5	40	17	5脳3	7	0.4
60		195	120	165	110	60	105	120	205	150	90	130	150	20	11	40	15	5脳3	50	22	7脳4	10.5	0.5
70		234	140	195	130	70	115	150	235	175	105	150	190	25	15	40	18	5脳3	60	28	7脳4	14.5	0.7
80		264	160	210	140	80	135	180	265	200	120	170	220	25	15	50	22	7脳4	65	32	10脳4.5	22	1.1
100		322	190	230	155	100	155	220	327	250	150	190	260	25	15	50	25	7脳4	75	38	10脳4.5	36	2.3
120		385	230	285	185	120	180	260	388	300	180	230	320	30	18	65	30	7脳4	85	45	12脳4.5	63	4.5
135		435	260	320	210	135	200	290	445	350	215	250	350	30	18	75	35	10脳4.5	95	55	15脳5	80	6.0
155		507	302	387	252	155	220	320	483	390	235	280	390	38	20	85	40	10脳4.5	110	60	15脳5	114	6.2
175		550	325	407	262	175	250	350	540	435	260	310	430	40	20	85	45	12脳4.5	110	65	18脳6	150	8.0
200		670	350	480	305	200	290	390	610	490	290	360	480	42	22	95	50	12脳4.5	125	70	20脳7	218	9.0
250		810	420	560	360	250	380	480	755	600	350	460	560	48	27	110	60	15脳5	155	90	24脳8	363	17.0
