Product Description

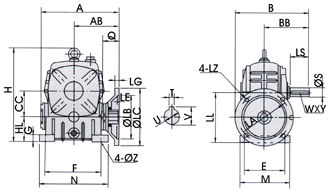

DA(WPDA)

Shaft Direction
DA Series Single Standard Worm Gear Reducer WPDA

SIZE	KW	RATIO	A	AB	B	BB	CC	E	F	G	H	HL	LL	M	N	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT			Kg
																	LA	LB	LC	LE	LG	LZ	Q	U	T脳V	LS	S	W脳Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	165	95	175	95	50	95	110	15	180	50	100	120	140	11	115	95	140	5	10	M8	25	11	4脳12.5	40	17	5脳3	7
60	0.37		185	105	190	110	60	105	120	20	205	60	120	130	150	11	130	110	160	5	12	M8	35	14	5脳16.3	50	22	7脳4	11
70	0.37		209	115	210	130	70	115	150	20	235	70	140	150	190	15	130	110	160	5	12	M8	35	14	5脳16.3	60	28	7脳4	15
	0.75				230												165	130	200		15	M10	45	19	6脳21.8
80	0.75		242	135	240	140	80	135	180	20	265	80	160	170	220	15	165	130	200	5	15	M10	45	19	6脳21.8	65	32	10脳4.5	23
	1.5																						55	24	8脳27.3
100	1.5		310	175	255	155	100	155	220	25	363	100	200	190	260	15	165	130	200	5	15	M10	55	24	8脳27.3	75	38	10脳4.5	38
120	2.2		361	205	310	185	120	180	260	30	424	120	240	230	320	18	215	180	250	5	18	M12	65	28	8脳31.3	85	45	12脳4.5	65
	3.0
135	3.0		412	235	335	210	135	200	290	30	481	135	270	250	350	18	215	180	250	5	18	M12	65	28	8脳31.3	95	55	15脳5	84
	4.0
155	5.5		442	250	402	252	155	220	320	32	536	135	290	280	380	20	265	230	300	5	22	M12	85	38	10脳41.3	110	60	15脳5	120
