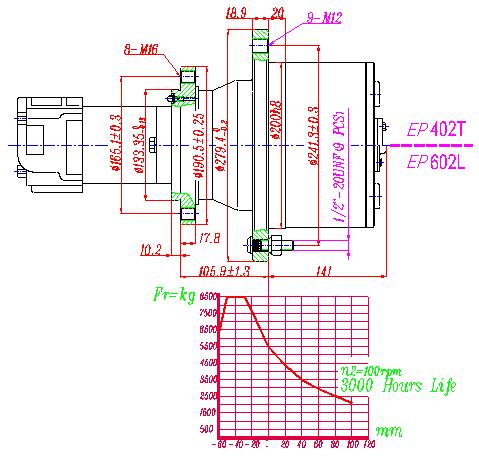

EP402T Planetary Track Drive EP602L Planetary Wheel Drives

EP402T2-**-WO-** TRACK DRIVES EP602L2-**-WO-** WHEEL DRIVESTechnical specificationMax.Output Torque (N.m)Ratio (i)Recommend Hydraulic MotorMax. input speed (rpm)Brake torque (N.m)Brake work pressure (bar)EP402TEP402WEP602L7000----700018.6 24.4 29.3 37.1EATON, 2K SAE A adopt 蠁25 Shaft Z13,DP16/32 Spl......

Send Inquiry

Product Description

EP402T2--WO- TRACK DRIVES
EP602L2--WO- WHEEL DRIVES

Technical specification

Max.Output Torque (N.m)			Ratio (i)	Recommend Hydraulic Motor	Max. input speed (rpm)	Brake torque (N.m)	Brake work pressure (bar)
EP402T	EP402W	EP602L
7000	----	7000	18.6 24.4 29.3 37.1	EATON, 2K SAE A adopt 蠁25 Shaft Z13,DP16/32 Spline	4000	----	----

- Input rotation opposite output rotation.
- Other ratio and other input type can be specially designed.
- If with manual disconnect device, please add mark聽鈥淢鈥澛?/strong>at the end of the product model.
- Without brake.
