EP405T Planetary Track Drive EP405W Winch Drive EP605L Wheel Drives

EP405T2,T3 TRACK DRIVES-(705C2H) EP405W2,W3 WINCH DRIVES EP605L2,L3 WHEEL DRIVESTechnical specificationMax.Output Torque (N.m)Ratio (i)Recommend Hydraulic MotorMax. input speed (rpm)Brake torque (N.m)Brake work pressure (bar)EP405TEP405WEP605L1000070001000021.5* 29.9* 48.3 55.0 68.5 79.5EATON, 2K SA......

Send Inquiry

Product Description

EP405T2,T3 TRACK DRIVES-(705C2H)
EP405W2,W3 WINCH DRIVES
EP605L2,L3 WHEEL DRIVES

Technical specification

Max.Output Torque
(N.m)

Ratio

(i)

Recommend Hydraulic Motor

Max. input speed
(rpm)

Brake torque
(N.m)

Brake work pressure
(bar)

EP405T

EP405W

EP605L

10000

7000

10000

21.5*
29.9*
48.3
55.0
68.5
79.5

EATON, 2K
SAE B adopt
A2FE32
A2FM56

4000

270

20-50

- Input rotation opposite output rotation.
- Other ratio and other input type can be specially designed. 鍏跺畠鐨勫噺閫熸瘮鍜岃緭鍏ョ被鍨嬪彲鐗规畩璁捐銆?/li>

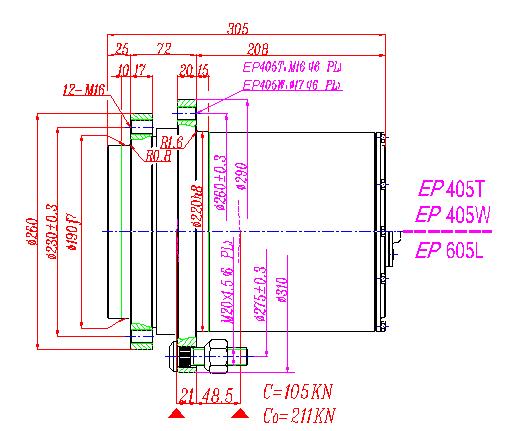

- Gear box with * marked ratio is 2 stage. When the gearbox is 2 stages, the dimension 208 should be changed to 175, and 305 to 272.
- If with manual disconnect device, please add mark聽鈥淢鈥澛?/strong>at the end of the product model.
