Locking Assembly HC Series Power Locks

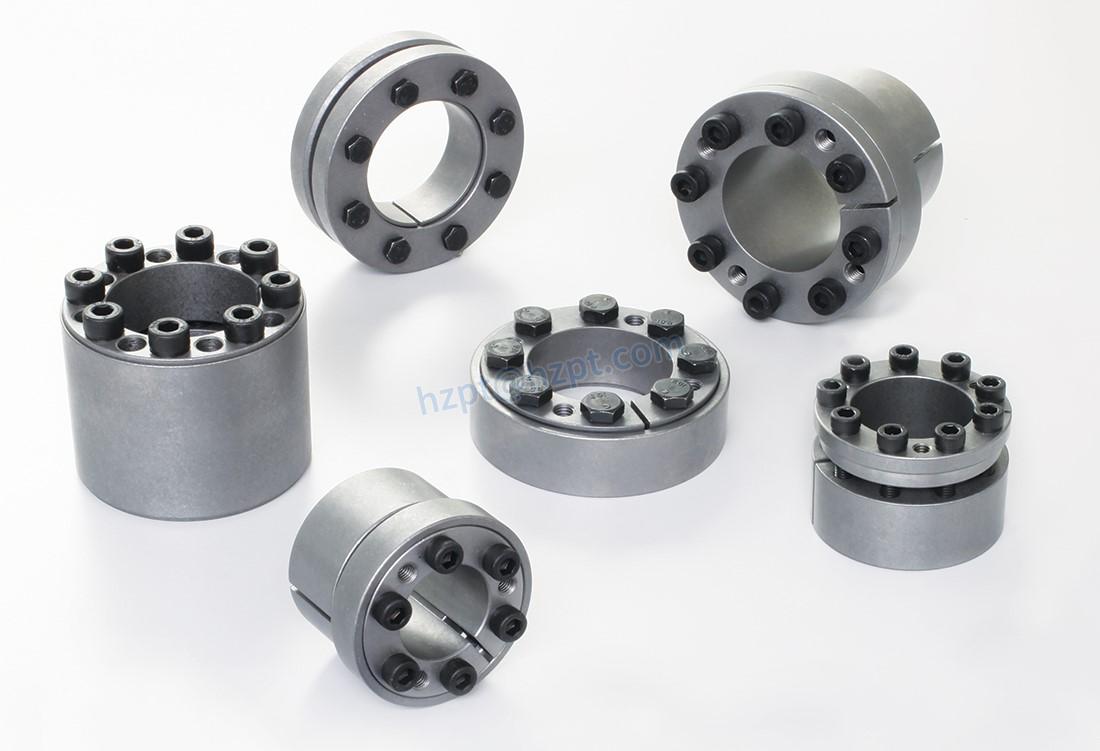

HC Series Locking Assembly

HC series locking assembly is a kind of keyless coupling device. The principle and use of the HC series locking assembly are to generate a huge holding force between the inner ring and the shaft and between the outer ring and the hub through the action of high-strength tension bolts so as to realize the keyless connection between the parts and the shaft. When under load, torque, axial force, or the combined load of the two is transmitted by the joint pressure of the locking assembly, the machine part, and the shaft and the accompanying frictional force.

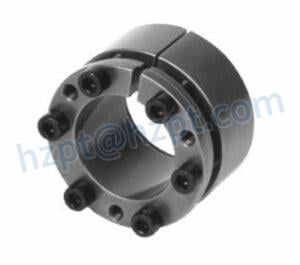

HC1 Series Locking Assembly

Features of HC1 Locking Assembly

• High torque
• Self-centering
• Self-locking
• Axial movement during clamping

Technical Qualification of HC1 Locking Assembly

Tolerance: Shaft h8/ Hub H8

Surface Roughness: Ra max 12.5

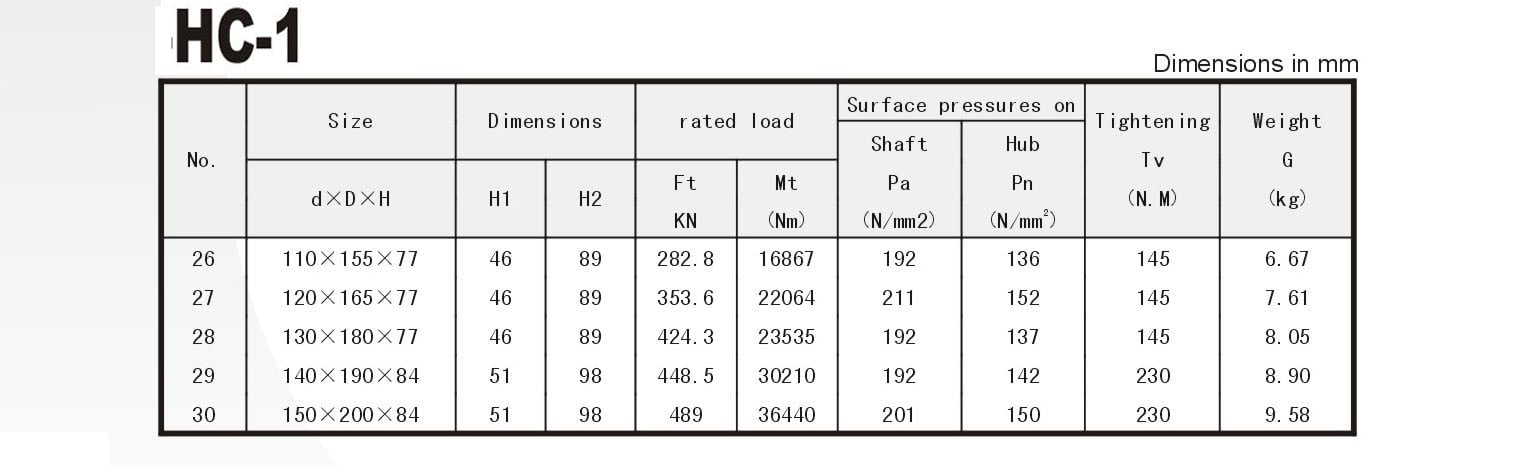

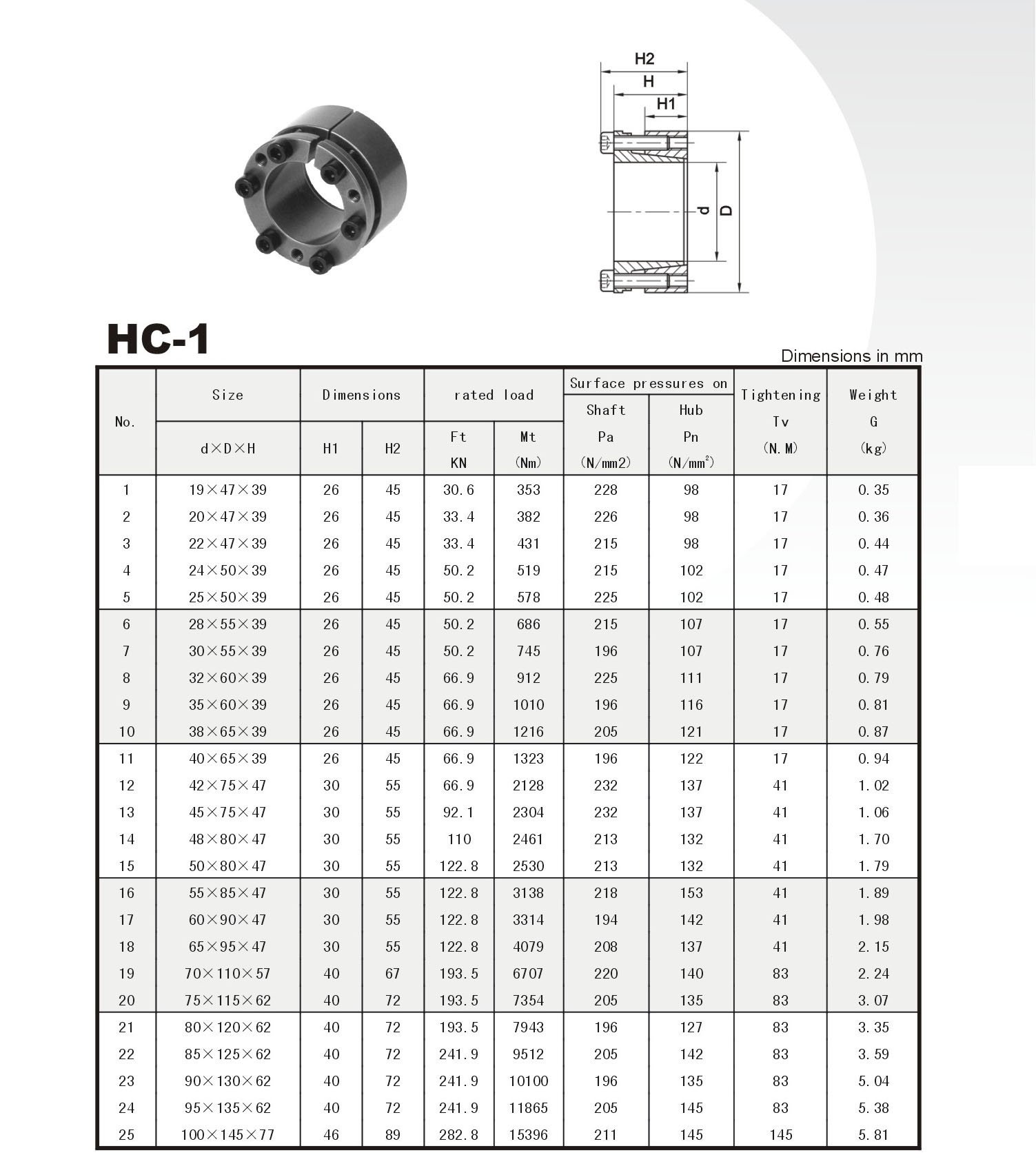

Specifications of HC1 Locking Assembly

HC2 Series Locking Assembly

Features of HC2 Locking Assembly

• High torque
• Self-centering
• Self-locking
• No axial movement during clamping

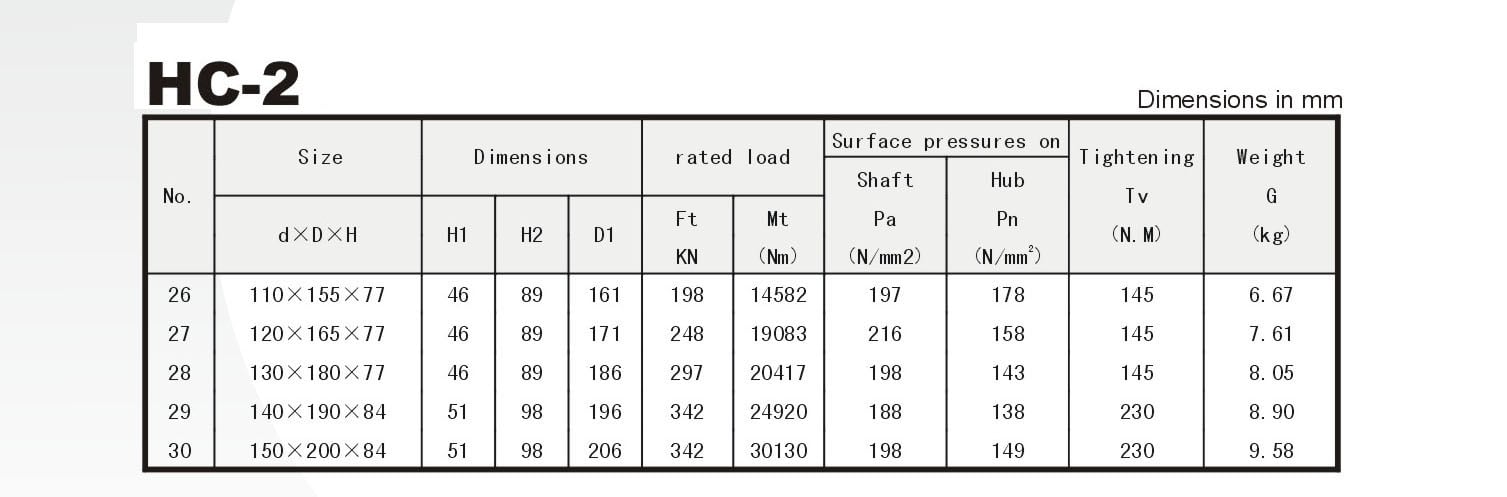

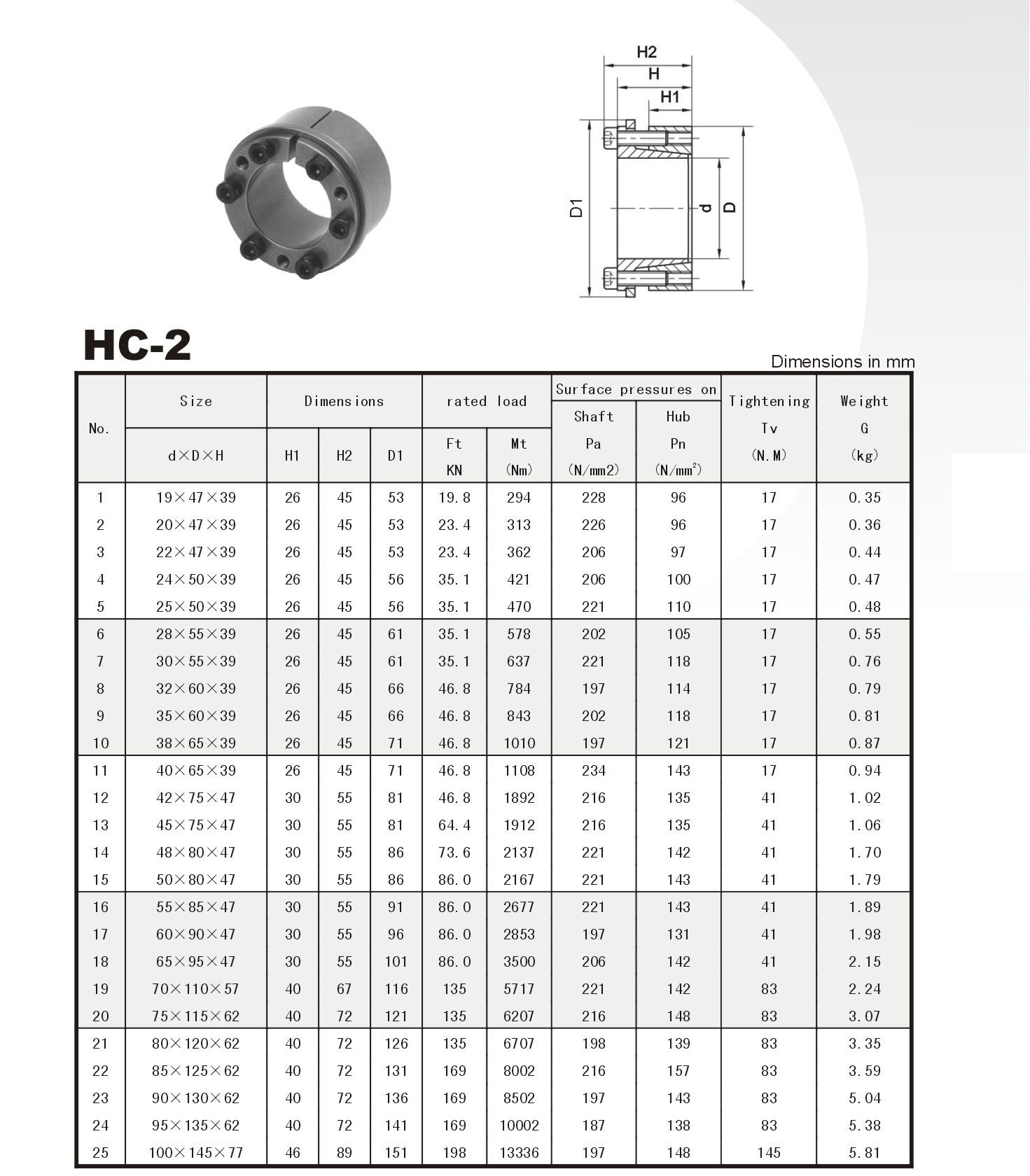

Specifications of HC2 Locking Assembly

Advantages of HC Series Locking Assembly

HC Series Locking Assembly mainly has the following advantages:

• high alignment accuracy;
• easy installation/adjustment/dismantling;
• high strength, stable and reliable coupling;
• can protect equipment from damage when overloaded, especially suitable for transferring heavy loads.
• Widely used in heavy machinery, wind power generation, packaging machinery, printing machinery, CNC machine tools, automation equipment and other fields.

HZPT offers a wide range of聽keyless locking assemblies聽of high quality at low prices!聽Contact us聽now if you are interested!
