Locking Assembly R Series Power Locks

R Series Locking Assembly

Applications of Locking Assemblies

The keyless locking assembly produced by us can be used in many industries.

• Packaging machinery
• Textile machinery
• Mining machinery
• Metallurgical machinery
• Printing machinery
• Tobacco machinery
• Forging machinery
• Engineering machinery
• Various types of machine tools and interchangeable mechanical drive couplings such as pulley, sprocket, gear, bevel wheel, impeller, timing belt pulley, propeller, small and large fans, blowers or directly with the shaft, hub linkage and other kinds of transmission linkage, etc.

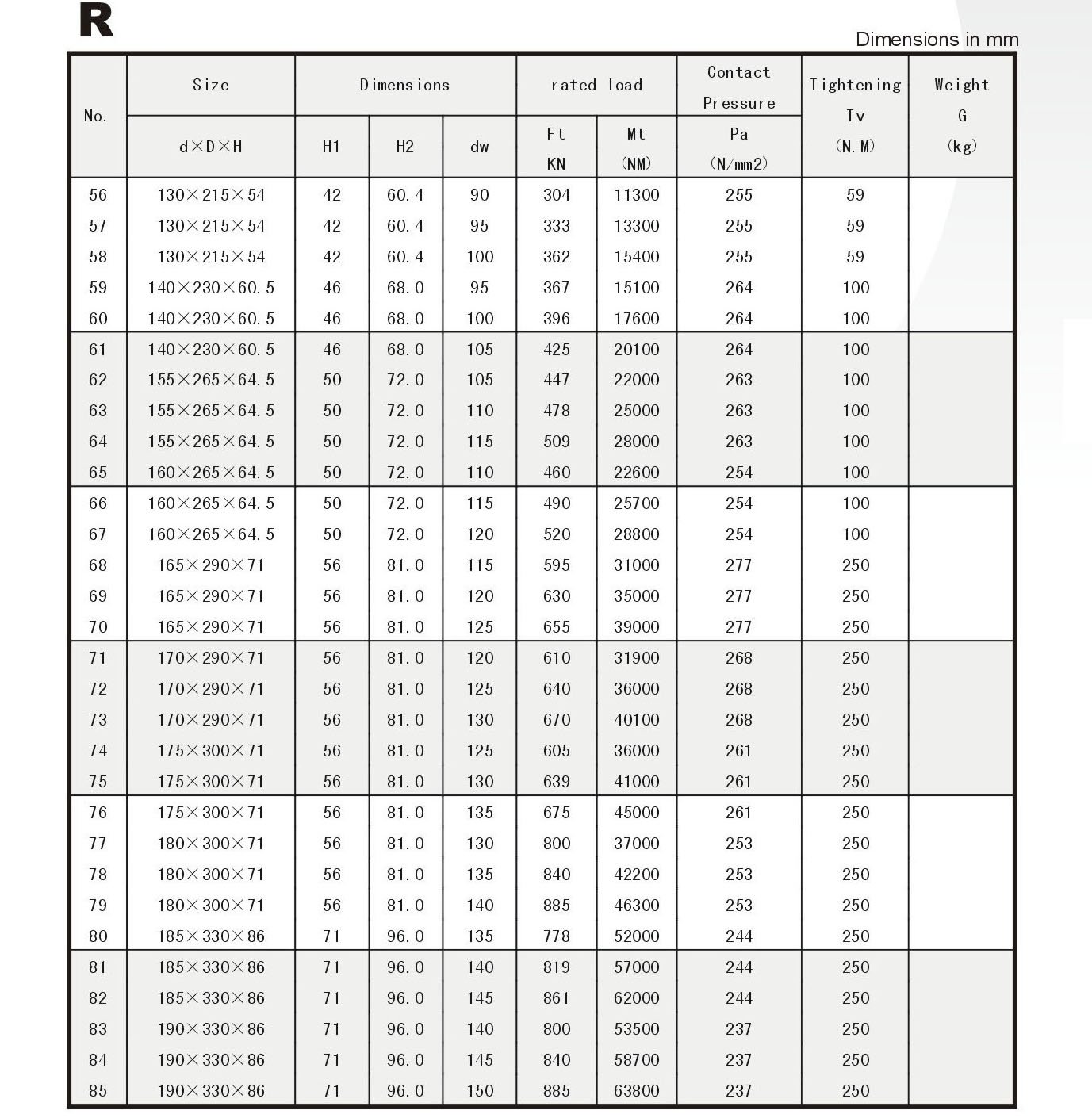

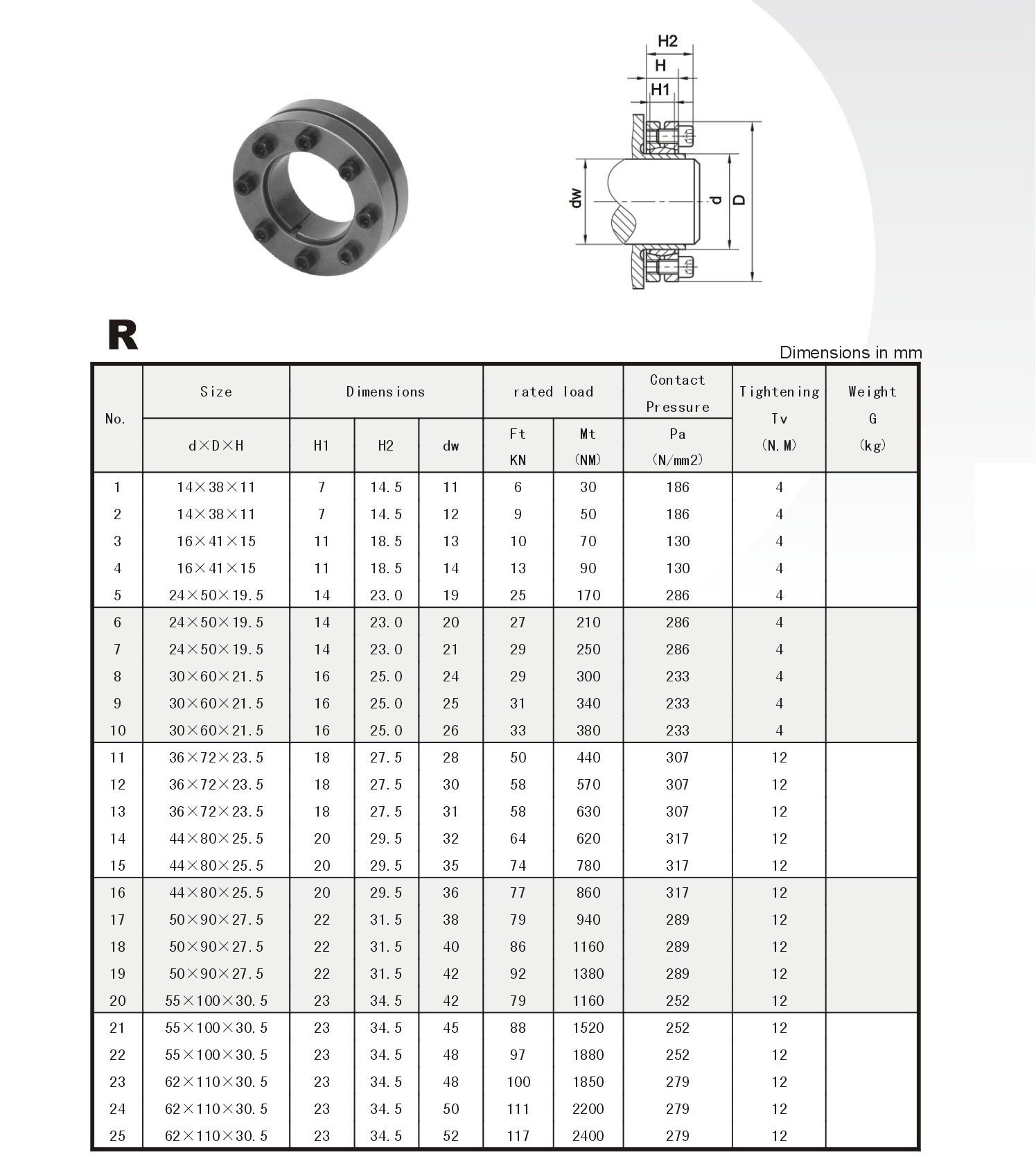

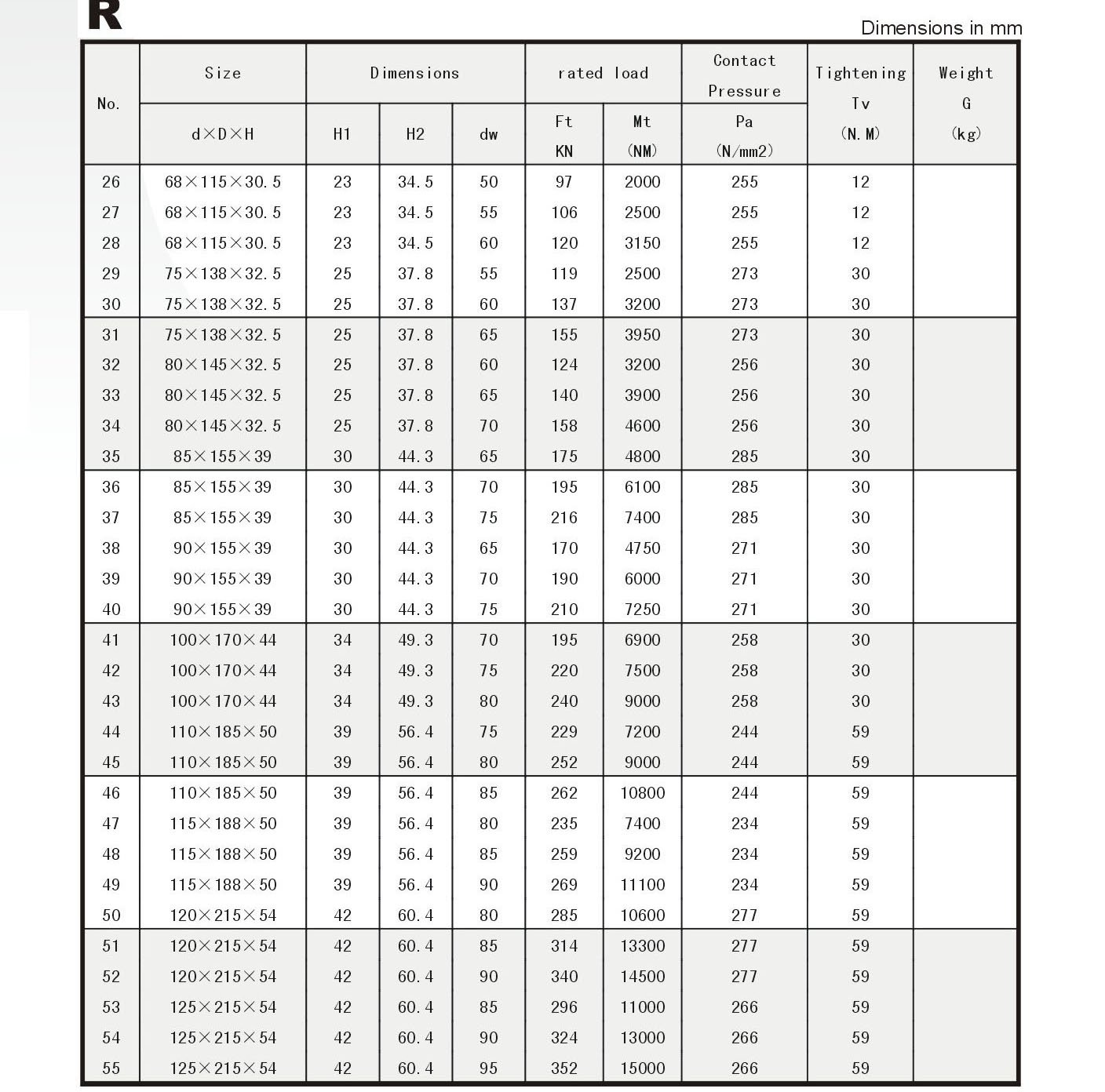

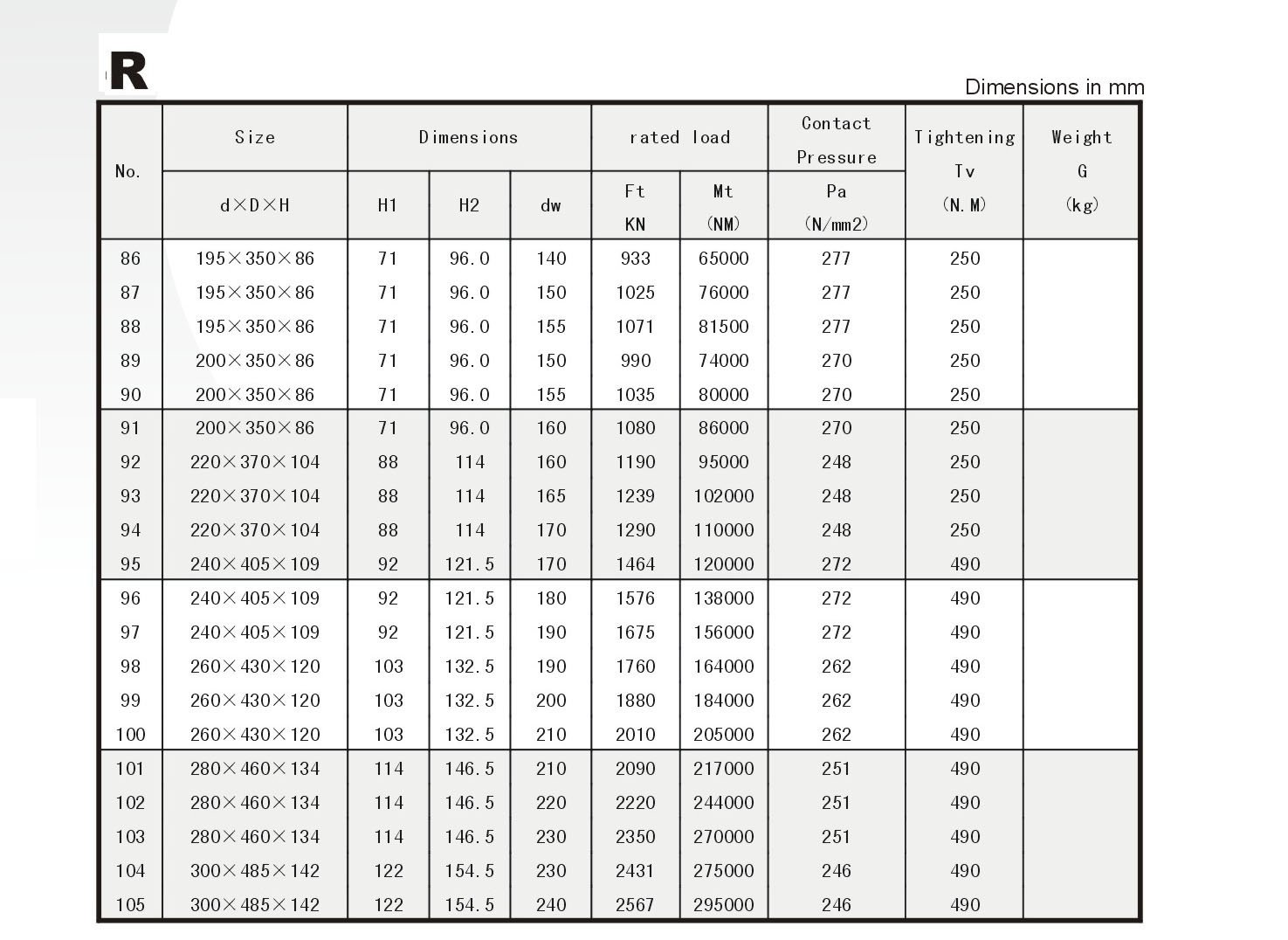

R Series Locking Assembly Specifications

R Series Locking Assembly Features

• Very high torque
• External type
• Easy installation
• No axial movement during clamping

R Series Locking Assembly Technical Qualifications

Tolerance: Shaft h8/ Hub H8

Surface Roughness: Ra max 12.5

Ordering Code

R-014 14X38X11

Part No. d X D X H

HZPT offers a wide range of聽shrink discs聽of high quality at low prices!聽Contact us聽now if you are interested!
