Locking Assembly W Series Power Locks

W Series Locking Assembly

W Series Locking Assembly Features

• Low torque
• Not self-centering
• Self-releasing
• Suited for thin-walled hubs
• Axial movement during clamping

W Series Locking Assembly Technical Qualification

Tolerance: Shaft h8/ Hub H8

Surface Roughness: Ra max 12.5

How Does a Locking Assembly Work锛?/strong>

The locking assembly is a kind of keyless locking device which is realized by tightening the pressure and friction force between the inclusion surface by tightening the high-strength bolts in the coupling of wheel and shaft, and is a kind of keyless coupling structure of transmission parts. Under the action of axial force, the inner jacket of the coupling assembly shrinks and rises to make the shaft and hub close together and generate enough friction to transmit torque, so as to achieve the purpose of the mechanism operation, and the keyless locking assembly itself does not transmit any torque and load.

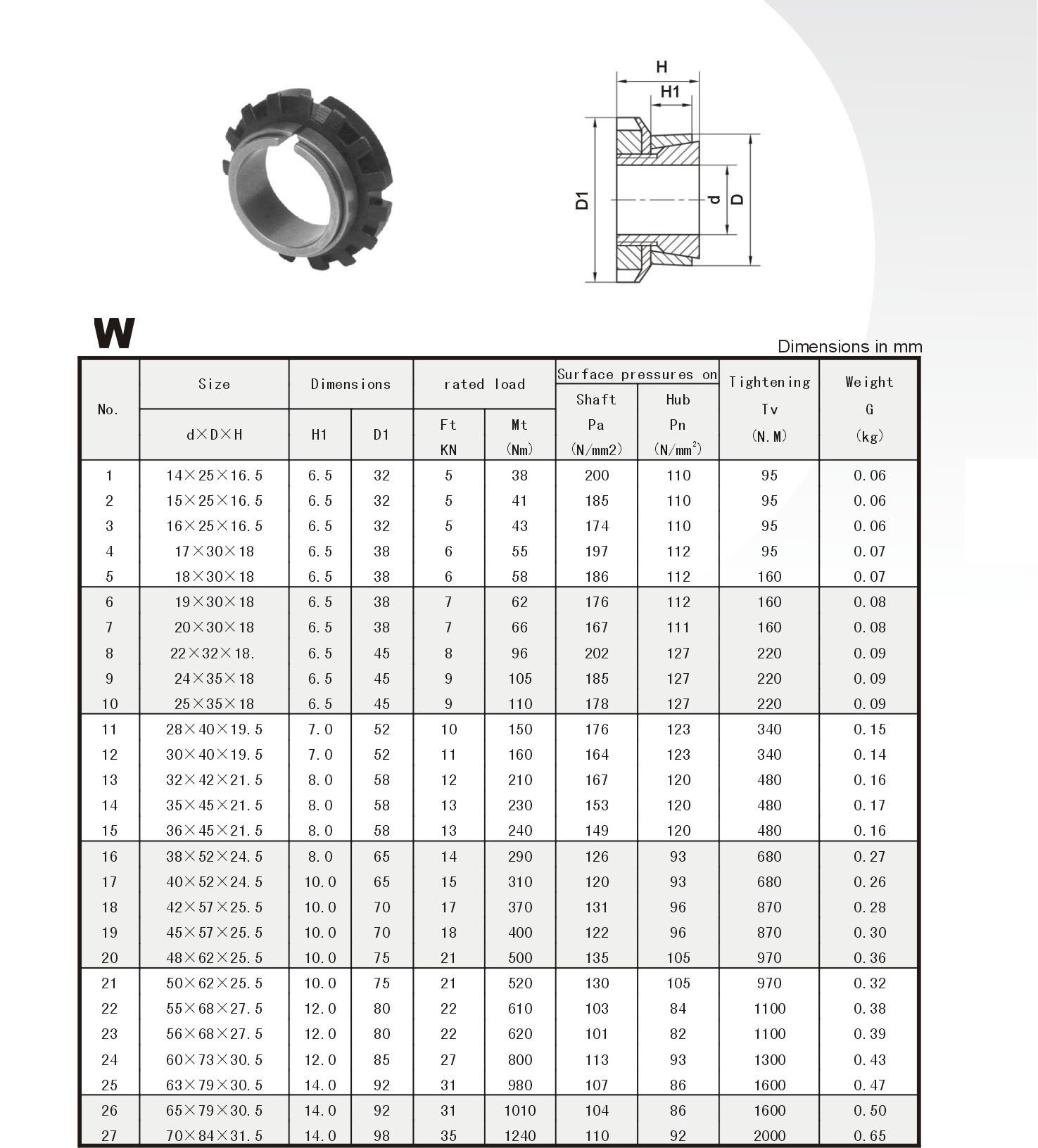

Ordering Code

W-014 14X25X16.5

Part No. d X D X H

HZPT offers a wide range of聽locking assemblies of high quality at reasonable prices! Contact us聽now if you are interested!
