Product Description

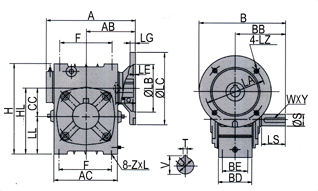

FCWD	Shaft Direction

SIZE	KW	RATIO	A	AB	AC	B	BB	BD	BE	CC	F	H	HL	LL	Z脳L	FLANGE						INPUT HOLE			OUTPUT SHAFT			KG
																LA	LB	LC	LE	LG	LZ	Q	U	T脳V	LS	S	W脳Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	165	95	115	175	95	64	50	50	85	150	115	65	M6脳20	115	95	140	5	10	M8	25	11	4脳12.5	40	17	5脳3	7
60	0.37		185	105	126	190	110	74	55	60	105	177	135	75	M8脳20	130	110	160	5	12	M8	35	14	5脳16.3	50	22	7脳4	11
70	0.37		209	115	155	210	130	84	65	70	125	215	160	90	M10脳25	130	110	160	5	12	M8	35	14	5脳16.3	60	28	7脳4	14
	0.75					203										165	130	200		15	M10	45	19	6脳21.8
80	0.75		242	135	174	240	140	94	70	80	140	250	185	105	M12脳28	165	130	200	5	15	M10	45	19	6脳21.8	65	32	10脳4.5	22
	1.5																					55	24	8脳27.3
100	1.5		310	175	224	263	163	114	90	100	180	310	230	130	M12脳30	165	130	200	5	15	M10	55	24	8脳27.3	75	38	10脳4.5	36
120	2.2		361	205	264	310	185	134	100	120	220	370	275	155	M14脳32	215	180	250	5	18	M12	65	28	8脳31.3	85	45	12脳4.5	63
	3.0
135	3.0		412	235	304	335	210	144	110	135	260	425	320	185	M16脳35	215	180	250	5	18	M12	65	28	8脳31.3	95	55	15脳5	80
	4.0
155	5.5		442	250	330	402	252	170	120	155	280	461	358	203	M16脳35	265	230	300	5	22	M12	85	38	10脳41.30	110	60	15脳5	114
