DKS Series Single Standard Worm Gear Reducer

DKSShaft DirectionSIZE KW RATIO A AB B CC E F H HL LL M N G Z FLANGE INPUT HOLE OUTPUT SHAFT KGLA LB LC LE LG LZ Q U T脳V S W脳Y50 0.18 1/10 1/20 1/30 1/40 1/50 1/60 155 84 107 50 95 110 180 130 80 120 140 15 11 115 95 140 5 10 M8 25 11 4脳12.8 20 6脳22.8 860 0.37 170 92 117 60 105 120 205 150 90 130 15......

Send Inquiry

Product Description

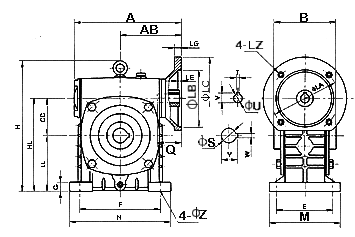

DKS	Shaft Direction

SIZE	KW	RATIO	A	AB	B	CC	E	F	H	HL	LL	M	N	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																LA	LB	LC	LE	LG	LZ	Q	U	T脳V	S	W脳Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	155	84	107	50	95	110	180	130	80	120	140	15	11	115	95	140	5	10	M8	25	11	4脳12.8	20	6脳22.8	8
60	0.37		170	92	117	60	105	120	205	150	90	130	150	20	11	130	110	160	5	12	M8	35	14	5脳16.3	25	8脳28.3	10.5
70	0.37		206	110	131	70	115	150	235	175	105	150	190	25	15	130	110	160	5	12	M8	35	14	5脳16.3	30	8脳33.3	17
	0.75															165	130	200		15	M10	45	19	6脳21.8
80	0.75		232	128	144	80	135	180	265	200	120	170	220	25	15	165	130	200	5	15	M10	45	19	6脳21.8	35	10脳38.3	26
	1.5																					55	24	8脳27.3
100	1.5		266	145	175	100	155	220	327	250	150	190	260	25	15	165	130	200	5	15	M10	55	24	8脳27.3	40	12脳43.3	38
120	2.2		340	182	200	120	180	260	388	300	180	230	320	30	18	215	180	250	5	18	M12	65	28	8脳31.3	45	14脳48.8	60
	3.0
135	3.0		375	200	212	135	200	290	445	350	215	250	350	30	18	215	180	250	5	18	M12	65	28	8脳31.3	60	18脳64.4	85
	4.0
155	5.5		442	236	312	155	220	320	483	390	235	280	390	38	20	265	230	300	5	20	M12	85	38	10脳41.3	70	20脳74.9	120
175	7.5		465	240	334	175	250	350	550	435	266	310	430	40	20	265	230	300	6	18	M12	85	38	10脳41.3	80	22脳85.4	150
