EMG Helical Gearboxes

EMG Helical Gearboxes

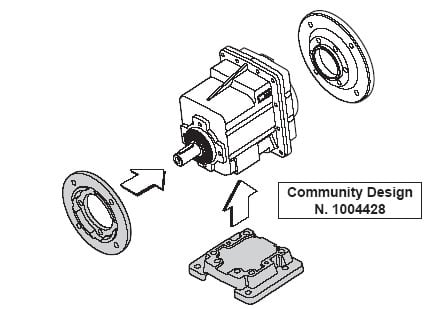

Technical Characteristics

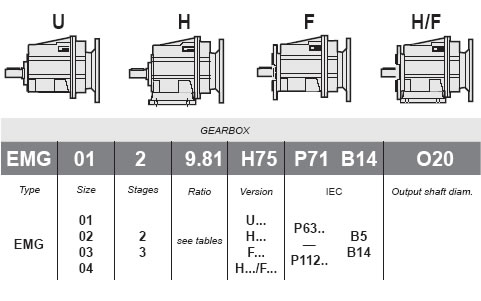

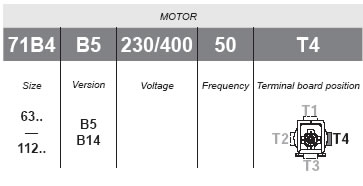

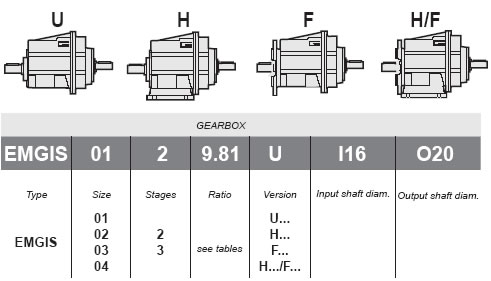

Designation

Mounting positions

All EMG reduction units are supplied complete with synthetic lubricant
viscosity 320. For this reason they can be installed in any
assembly position and do not require maintenance.

N.B.

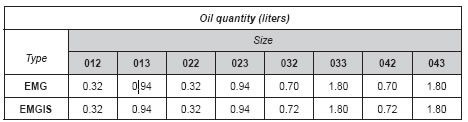

The oil quantity does not depend on mounting position.

Radial Loads

n1 [min ] -1 Input speed
n2 [min ] -1 Output speed
i Ratio
P1 Input power
Mn Nominal output torque
sf Service factor
R2 Permitted output radial load

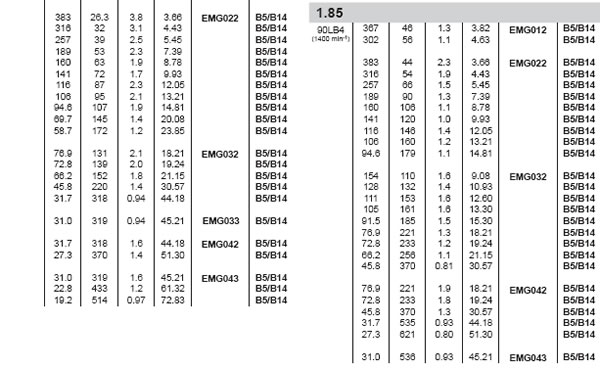

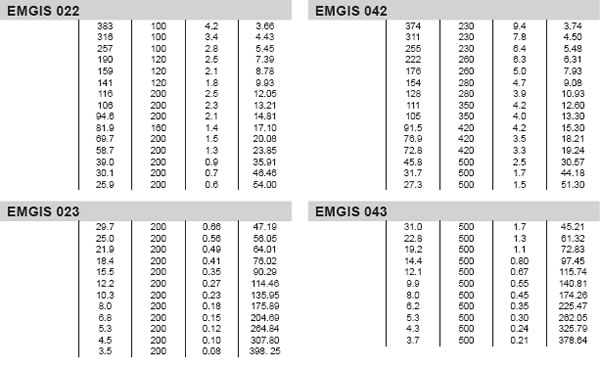

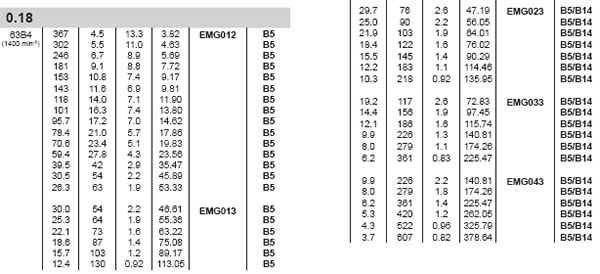

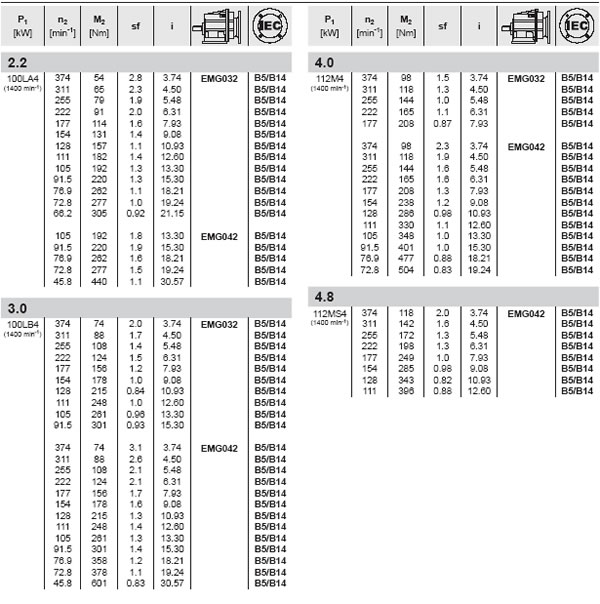

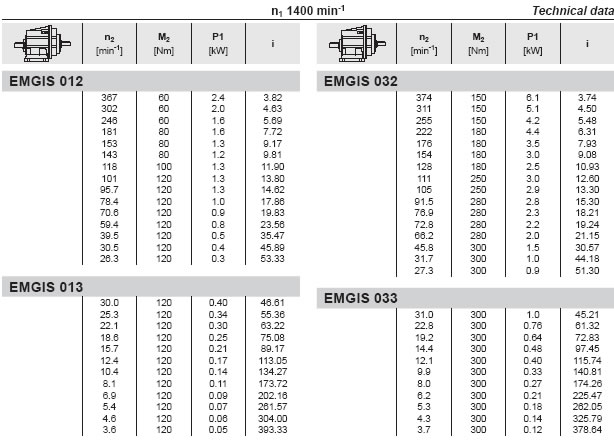

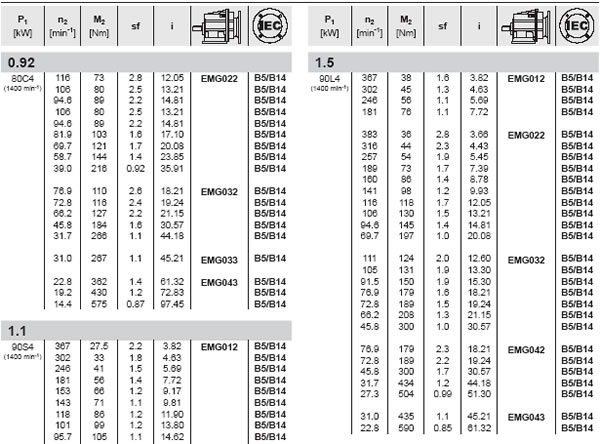

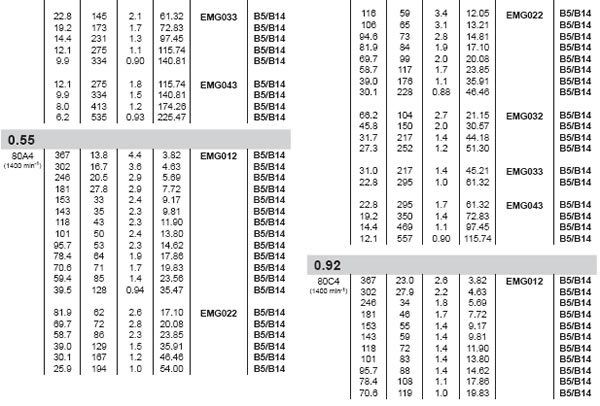

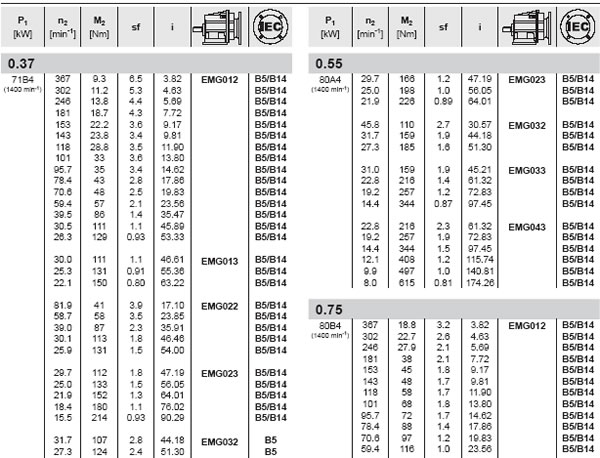

Technical data

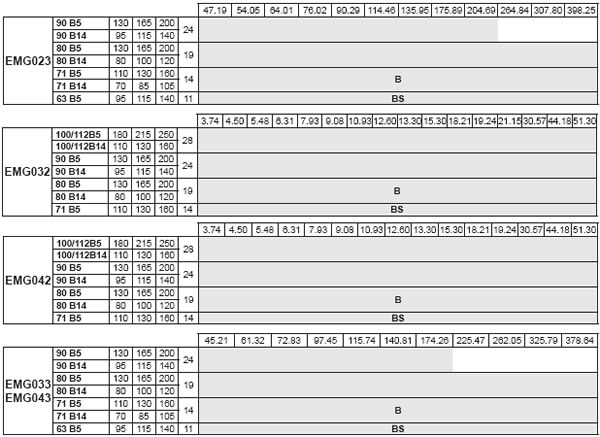

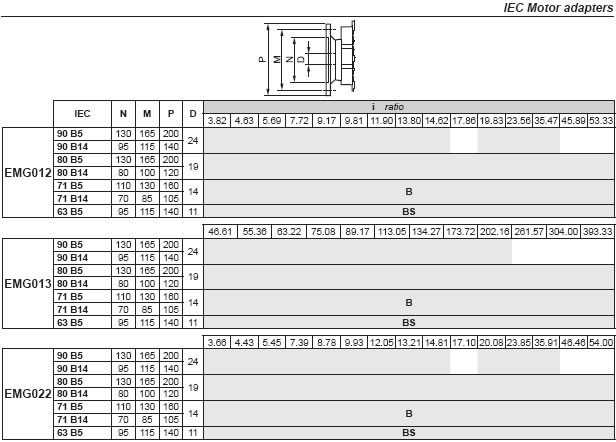

IEC Motor adapters

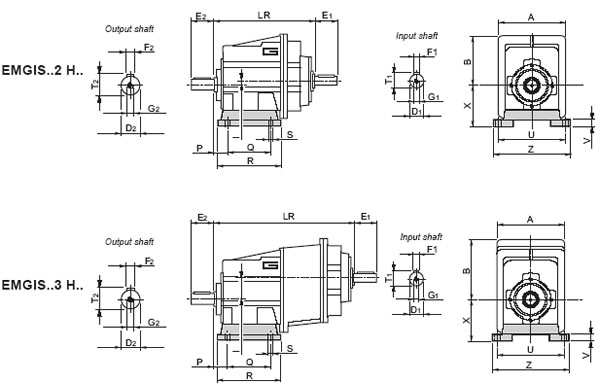

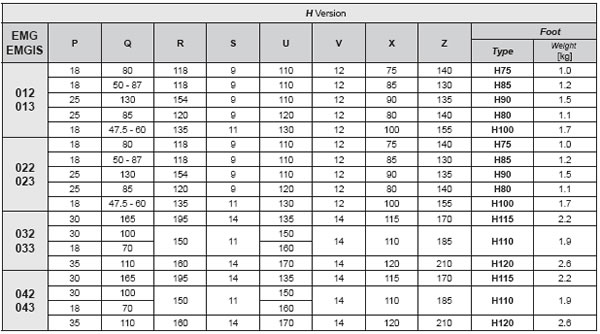

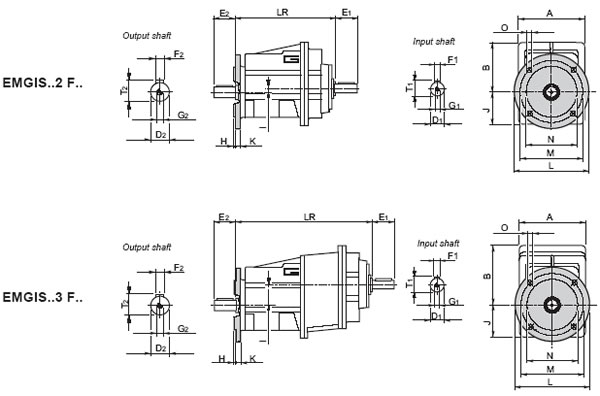

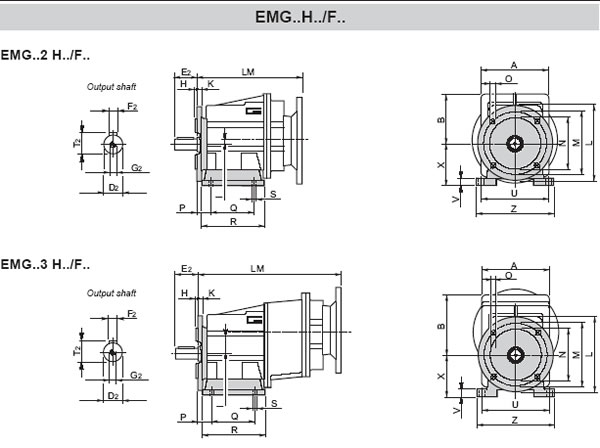

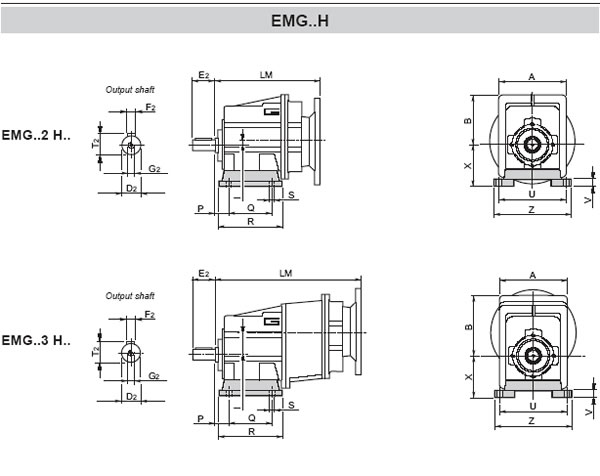

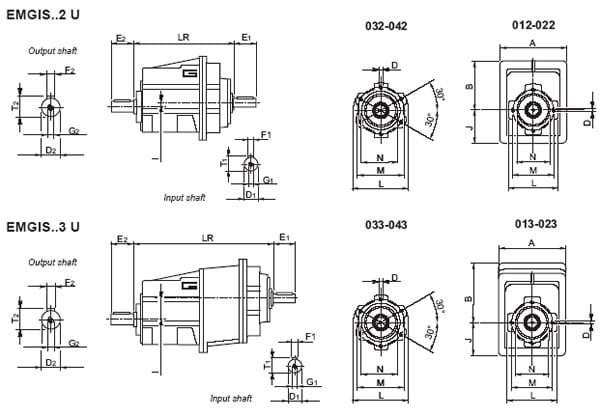

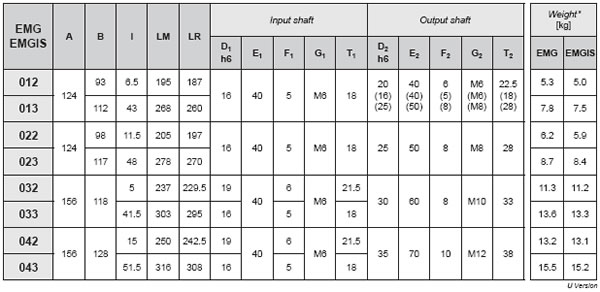

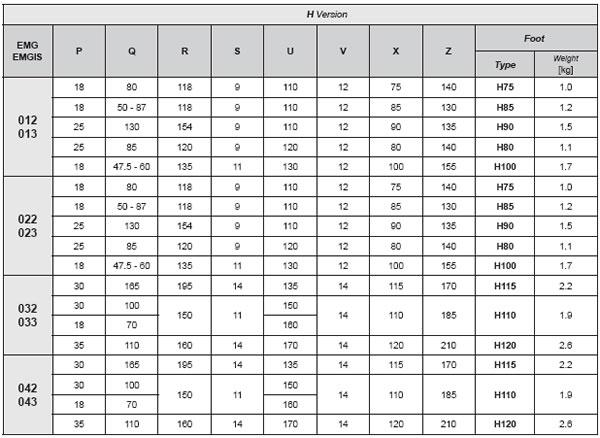

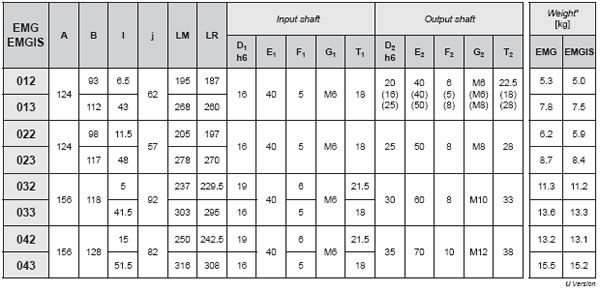

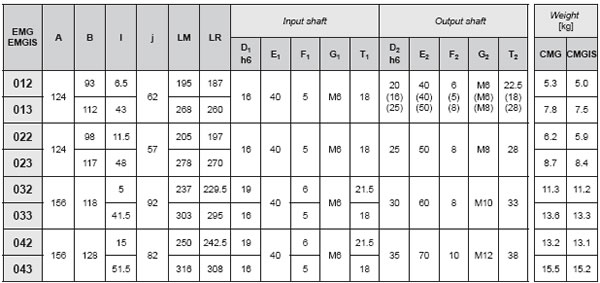

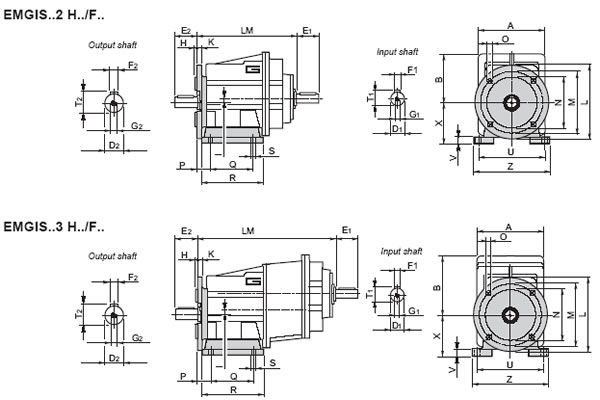

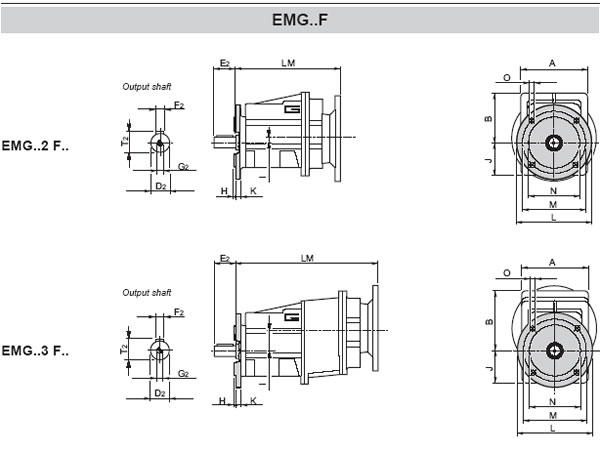

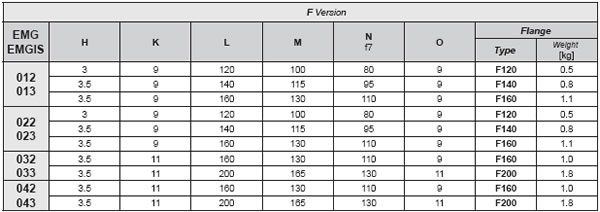

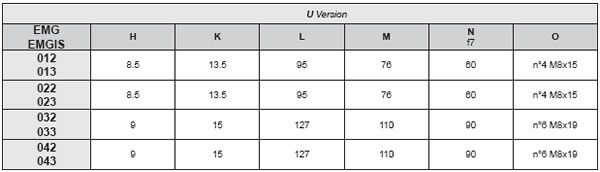

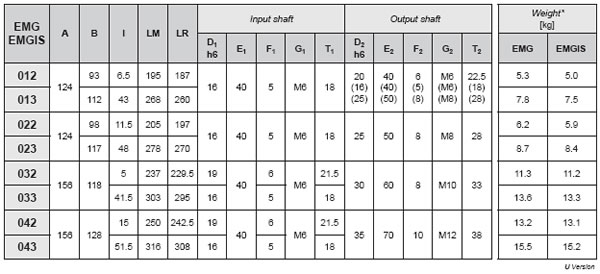

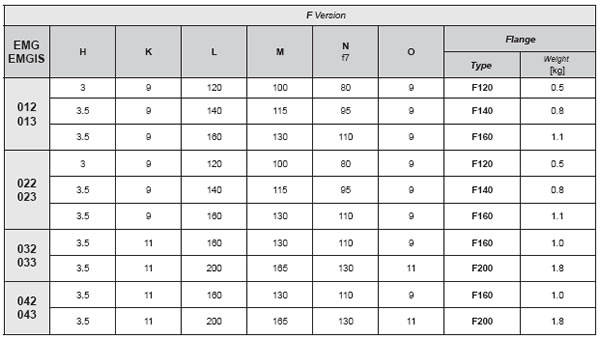

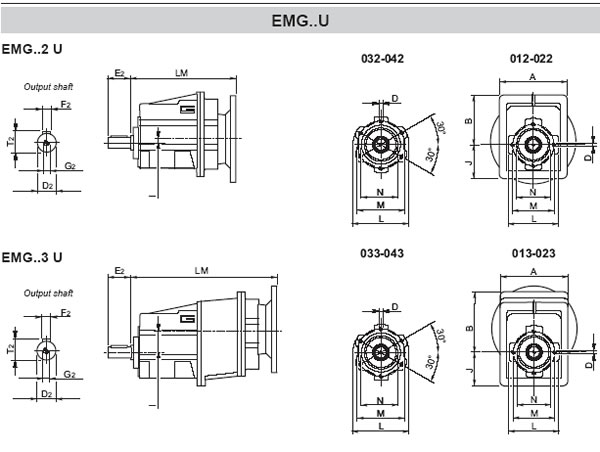

Dimensions
