EP406AT3 Planetary Track Drive EP406AW3 Winch Drives

EP406AT3 Planetary Track Drive EP406AW3 Winch Drives

EP406AT3 TRACK DRIVES (GFT17T3 1000) EP406AW3 WINCH DRIVES (GFT17W3 1000)Technical specificationMax.Output Torque (N.m)Ratio (i)Recommend Hydraulic MotorMax. input speed (rpm)Brake torque (N.m)Brake work pressure (bar)EP406AT3EP406AW3180001250070.3 80.0 94.5 110.9 136.1 173 219.4A2FE28路32 A2FE45路56路......
Send Inquiry
Product Description

EP406AT3 TRACK DRIVES (GFT17T3 1000)
EP406AW3 WINCH DRIVES (GFT17W3 1000)

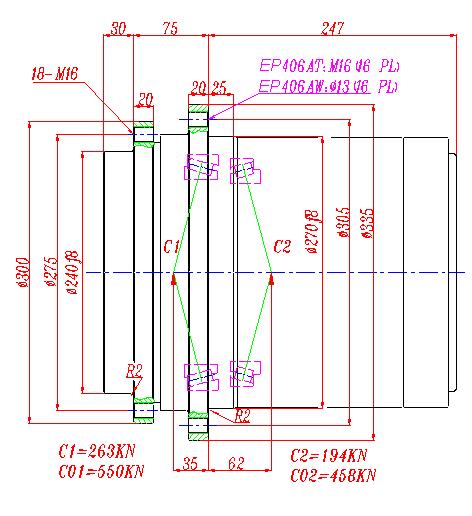

EP406AT3 Planetary Track Drive EP406AW3 Winch Drives

Technical specification

Max.Output Torque
(N.m)

Ratio
(i)

Recommend Hydraulic Motor

Max. input speed
(rpm)

Brake torque
(N.m)

Brake work pressure
(bar)

EP406AT3

EP406AW3

18000

12500

70.3
80.0
94.5
110.9
136.1
173
219.4

A2FE28路32
A2FE45路56路63
A6VE28路55

4000

430

20-50
  1. Input rotation opposite output rotation.
  2. Other ratio and other input type can be specially designed.
