Product Description

EP700L4, EP701L4 Yaw and Pitch drive
EP703AL4, EP705AL4 Yaw and Pitch drive

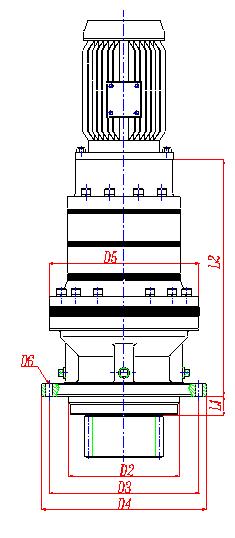

Dimension	Type
	EP700L4	EP701L4	EP703AL4	EP705AL4
D2	150	150	175	175
D3	195	195	245	245
D4	220	220	270	270
D5	185	185	245	245
D6	10-褎13	10-褎13	12-褎13	12-褎13
L1	31	31	32	32
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Nominal Output Torque	Peak Static Output Torque	Ratio
	(N.m)	(N.m)	(i)
EP700L	1000	2000	297--2153
EP701L	2000	4000	297--2153
EP703AL	2500	5000	278--1866
EP705AL	5000	10000	278--1866
