Product Description

EP705L, EP706L SLEW DRIVES
EP707L, EP709L SLEW DRIVES

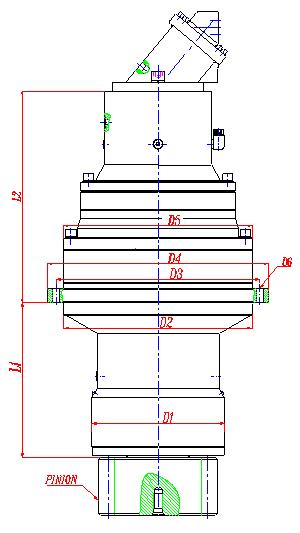

Dimension	Type
	EP705L	EP706L	EP707L	EP709L
D1	180	200	230	250
D2	195	250	280	280
D3	245	325	314	380
D4	290	360	348	420
D5	245	292	345	345
D6	12-褎13	10-褎17	12-褎17	12-褎17
L1	171	225	295	295
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	Recommend Hydraulic Motor	Max. input speed	Brake torque	Brake work pressure
	Excavator	Crane	(i)	Recommend Hydraulic Motor	(rpm)	(N.m)	(bar)
EP705L	5000	6500	12.4鈥?74.5	SAE A路B 路C adopt	3500	50-400	20-50
EP706L	7700	12000	13.5鈥?42.5	SAE D路E adopt		50-1000
EP707L	10500	165000	12.6鈥?57.7	A2FE 45路56路63
EP709L	16000	26000	12.6鈥?57.7	A2FE 80路90
