Product Description

EP706AL, EP707AL SLEW DRIVES
EP709AL, EP711AL SLEW DRIVES

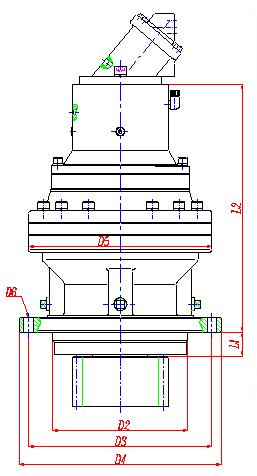

Dimension	Type
	EP706AL	EP707AL	EP709AL	EP711AL
D2	230	240	280	320
D3	335	335	385	500
D4	365	365	420	560
D5	300	345	345	425
D6	14-褎17	14-褎17	14-褎22	18-褎22
L1	55	60	60	70
L2	Size according to motor type
Pinion data	Pinion data according to customer

Technical specification

Type	Max.Output Torque		Ratio	Recommend Hydraulic Motor	Max. input speed	Brake torque	Brake work pressure
	Excavator	Crane	(i)	Recommend Hydraulic Motor	(rpm)	(N.m)	(bar)
EP706AL	7700	12000	13.5鈥?42.5	SAE A路B路C路D路E adopt A2FE 45路56路63 A2FE 80路90 A2FE 107路125	3500	50-1000	20-50
EP707AL	10500	165000	12.6鈥?57.7
EP709AL	16000	26000	12.6鈥?57.7
EP711AL	32000	45000	14.0鈥?23.0		2500	400-3200
