Gearbox for Agricultural Machinery 200 Series

Gearbox for Agricultural Machinery 200 Series

Features:

• Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
• Precision machined for exact gear mesh and bearing preload
• Precision forged gears are offered in three ratios: 1:1, 1.5:1 and 2:1
• Tapered roller bearings provide increased load capacity and bearing life
• 1" shaft made of high strength steel standard
• Filled with 80W90 gear lubricant and leak tested before shipment
• The 200 Series weighs 12/15 lbs. including oil
• Contact Ever-Power Gearbox for your special requirements

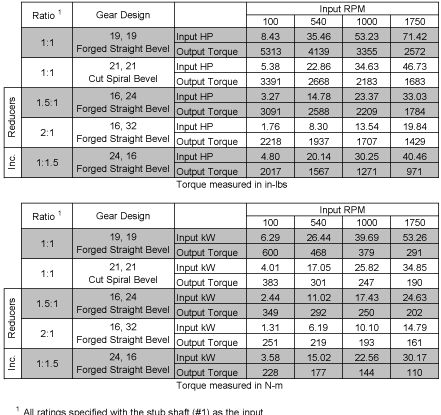

RATING CHART

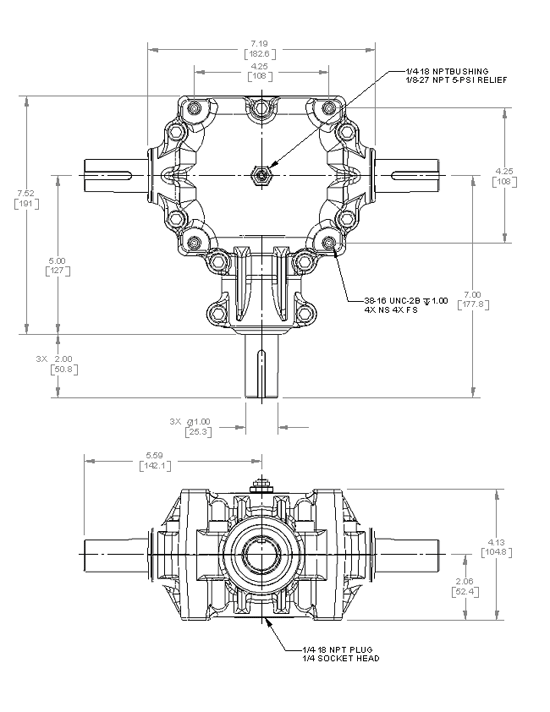

DRAWING FOR 200 SERIES
