Gearbox for Agricultural Machinery Type XL Series
TYPE
TYPE
TYPEXL-2
XL-S-8
XL-S-020XL-101
XL-150
XL-080-INVXL-014
XL-082
XL-014-FLXL-012
XL-010
XL-022XL-S-9
XL-080
XL-90XL-010.012
XL-010.010
XL-022.010XL-101-INV
XL-S8-C2
XL-11S-C2XL-014-FL
VT-030
F.T.I.1500
Description :
TYPE XL-012
TYPE XL-010
TYPE XL-022
TYPE XL-010.012
TYPE XL-010.010
T......
| TYPE | TYPE | TYPE |
| XL-2 | XL-S-8 | XL-S-020 |
| XL-101 | XL-150 | XL-080-INV |
| XL-014 | XL-082 | XL-014-FL |
| XL-012 | XL-010 | XL-022 |
| XL-S-9 | XL-080 | XL-90 |
| XL-010.012 | XL-010.010 | XL-022.010 |
| XL-101-INV | XL-S8-C2 | XL-11S-C2 |
| XL-014-FL | VT-030 | F.T.I.1500 |
Description :
TYPE XL-012
TYPE XL-010
TYPE XL-022
TYPE XL-010.012
TYPE XL-010.010
TYPE XL-022.010
TYPE XL-2
TYPE XL-S-020
TYPE XL-S-8
TYPE XL-S-9
TYPE XL-080
TYPE XL-90
TYPE XL-101
TYPE XL-150
TYPE XL-080-INV
TYPE XL-101-INV
TYPE XL-S8-C2
TYPE XL-11S-C2
TYPE XL-014
TYPE XL-014-FL
TYPE XL-082
TYPE XL-014-FL.XL-082
TYPE VT-030
TYPE F.T.I.1500
TYPE F.T.F.101802

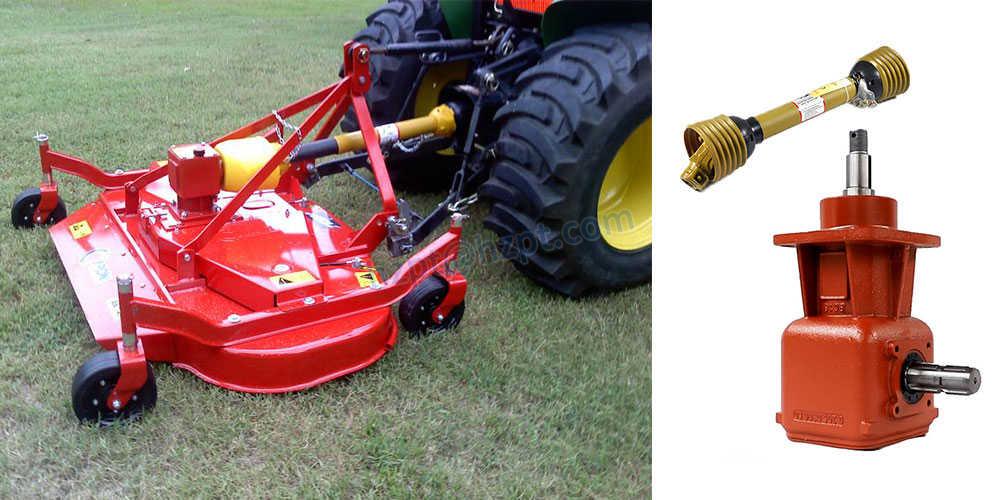

PTO Shafts for Agricultural Gearboxes
Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also provided by the use of internal yokes.
The聽agricultural聽PTO聽gearbox聽is designed to change the output speed of a PTO shaft. It can be used as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft's speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.
