Gearbox for Agricultural Machinery H130 Series

Gearbox for Agricultural Machinery H130 Series

Features:

• Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
• Precision machined for exact gear mesh and bearing preload
• Precision forged gears are offered in a 1.6:1 ratio
• Tapered roller bearings provide increased load capacity and bearing life
• 1.375" shaft made of high strength steel standard
• Filled with 80W90 gear lubricant and leak tested before shipment
• The H Series weighs 35/40 lbs. including oil
• Contact Ever-Power Gearbox for your special requirements

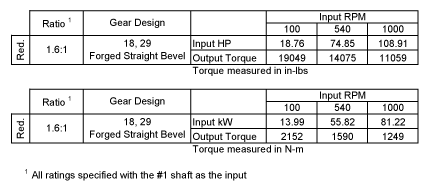

RATING CHART

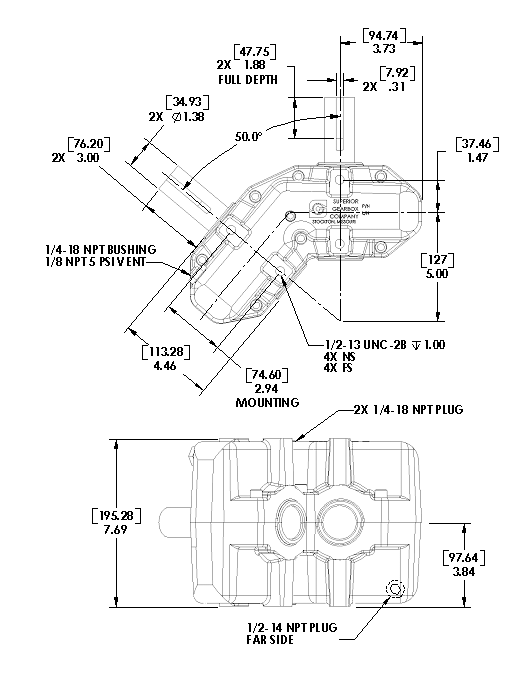

DRAWING AND SHAFT ALIGNEMENT FOR H-130
