Product Description

WK Series Worm Gear Reducer FCWK 聽聽聽聽聽聽聽聽

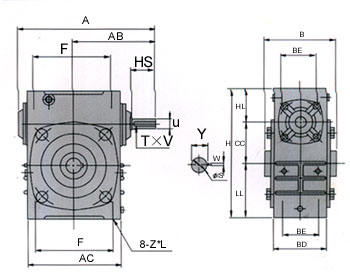

WK	Shaft Direction

SIZE	RATIO	A	AB	B	AC	F	BD	BE	CC	LL	HL	H	Z脳L	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	AC	F	BD	BE	CC	LL	HL	H	Z脳L	HS	U	T脳V	S	W	Y	KG
50	1/10 1/20 1/30 1/40 1/50 1/60	175	105	107	115	85	70	50	50	65	35	150	M6脳18	30	12	4脳2.5	20	6	22.8	6
60		195	120	117	126	105	80	55	60	75	42	177	M8脳20	40	15	5脳3	25	8	28.3	85
70		234	140	131	155	125	90	65	70	90	55	215	M10脳25	40	18	5脳3	30	8	33.3	12.5
80		264	160	144	174	140	100	70	80	105	65	250	M12脳28	50	22	7脳4	35	10	38.3	20
100		322	190	175	224	180	120	90	100	130	80	310	M12脳30	50	25	7脳4	40	12	43.3	33
120		385	230	200	264	220	140	100	120	155	95	370	M14脳32	65	30	7脳4	45	14	48.8	50
135		435	260	212	304	260	150	110	135	185	105	425	M16脳35	75	35	10脳4.5	60	18	64.4	77
155		494	302	312	330	280	170	120	155	203	103	461	M16脳35	85	40	10脳4.5	70	20	74.9	100
175		548	325	334	370	320	186	140	175	223	123	521	M16脳35	85	45	12脳4.5	80	22	85.4	140
200		688	350	346	420	360	200	150	200	245	130	575	M18脳35	95	50	12脳4.5	85	22	90.4	200
