Agricultural Lawn Mower Gearbox EP-966109

Agricultural Lawn Mower Gearbox EP-966109

The right angle gearbox for lawn mowers driven by a hydraulic motor is a new type of gearbox independently developed by the HZPT machinery factory according to the requirements of customers. High-precision hard-tooth surface gear design with first-stage bevel gear transmission. It has the characteristics of high bearing capacity, stable operation, and low noise. It is mainly used in lawnmowers. Various speed ratios and input and output configurations can be selected according to needs.

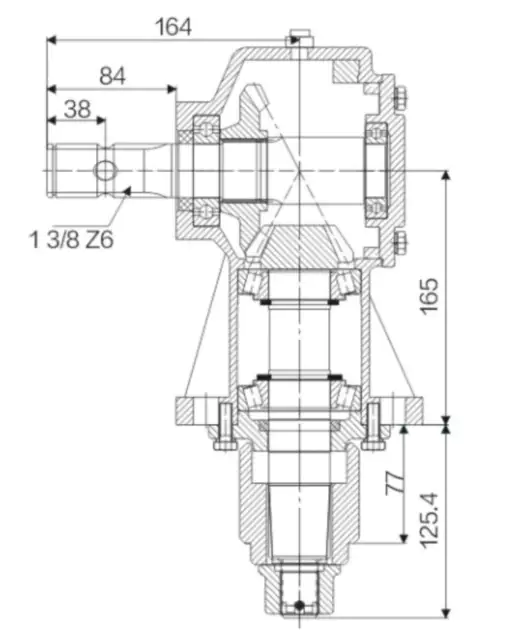

Agricultural Lawn Mower Gearbox Specification

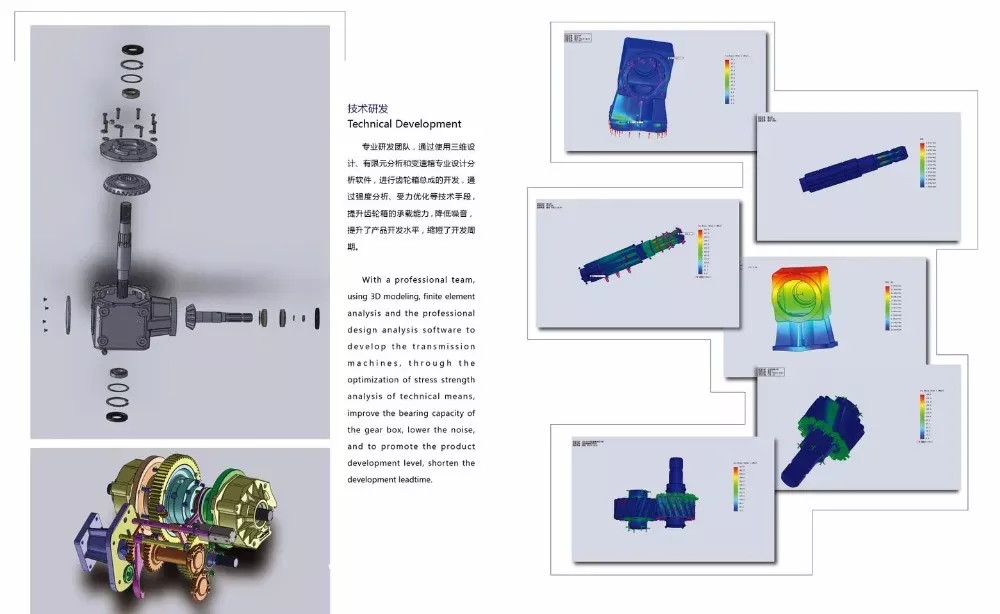

Lawn Mower Gearbox Parts Design

Agricultural Lawnmower Gearbox Features

1) Transmission ratio: Different ratios as customized.
2) Professional: Professional QC department and inspection equipment to control dimension and backlash, and noise well.
3) ODM & OEM: The technology Dpt. can make design the gearbox and develop new craft according to the customer's requirement.
4) Warranty period: One and a half years to two years.
5) Experience: 20 years of experience, safe, reliable, economical, and durable.
6) Packing and Delivery control: All of our workers are well-trained to guarantee the high quality of our gearboxes, and 100% of products are inspected before delivery.

We promise to supply you with perfect design, professional quality control, competitive prices, and excellent services.

Lawn Mower Gearbox Repair and Maintenance

Most problems with lawn mower gearbox drive equipment are caused by a lack of service and maintenance. Operators can check a few things before using their equipment.

Always maintain proper oil levels. If the mower gearbox speed is low, the bearing will not be fully lubricated. If the lawnmower gearbox is too full, it will generate heat, causing the box to heat up and possibly damage the seals.

Check the free clearance of the input and output shafts. If there is any free space, it may be a sign of bearing wear or a change in bearing preload Settings. Excessive clearance will result in oil seal failure, resulting in lubricant loss and bearing and gear damage. In most cases, bearing preload can be reset to eliminate all radial clearance by rehashing or tightening the bearing adjustment nut.

Most lawn mower gearboxes require an air vent to prevent pressure from building up inside the housing. Check regularly to make sure the respirator is working properly. If the pressure in the box increases, the oil seal will break, and lubricant loss will occur.

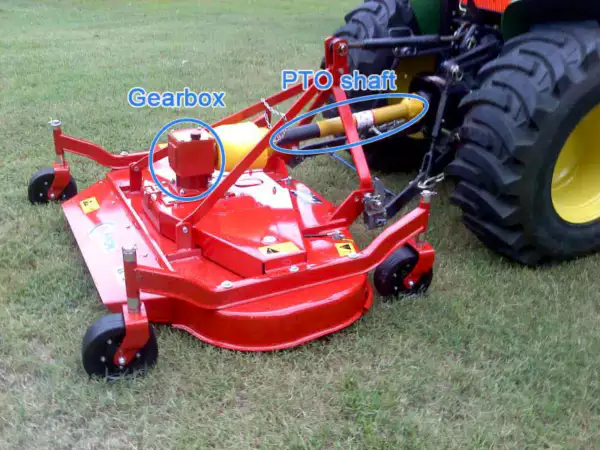

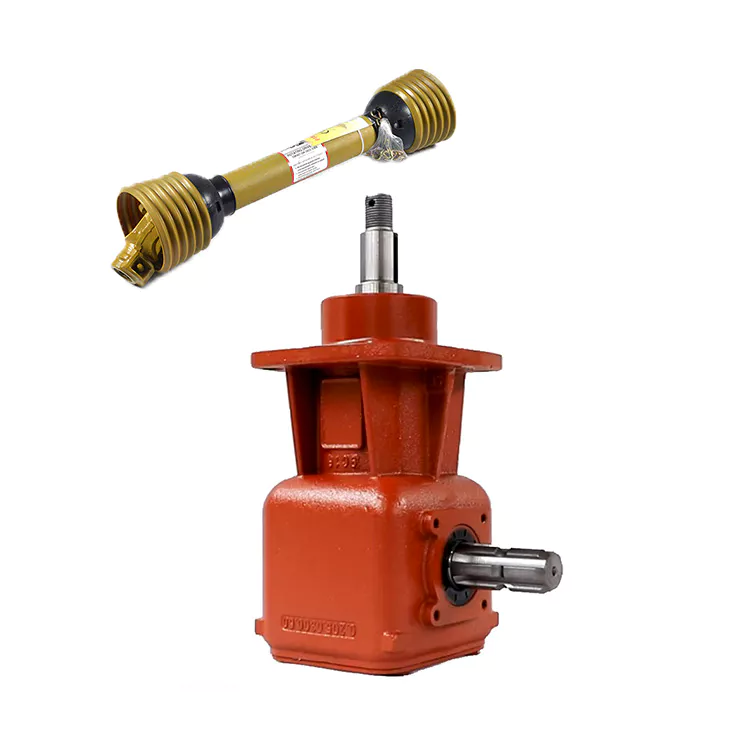

We Also Supply PTO Shafts

A PTO shaft is an extremely sophisticated mechanism that allows implements to draw energy from an engine. It works with a mechanical, agricultural gearbox. A PTO shaft can be mounted on a vehicle's transmission and is an essential system part. A high-quality PTO shaft should be durable enough to withstand torsion and minimize vibration. HZPT manufactures a wide range of durable PTO shafts for agricultural gearboxes to meet all your requirements.

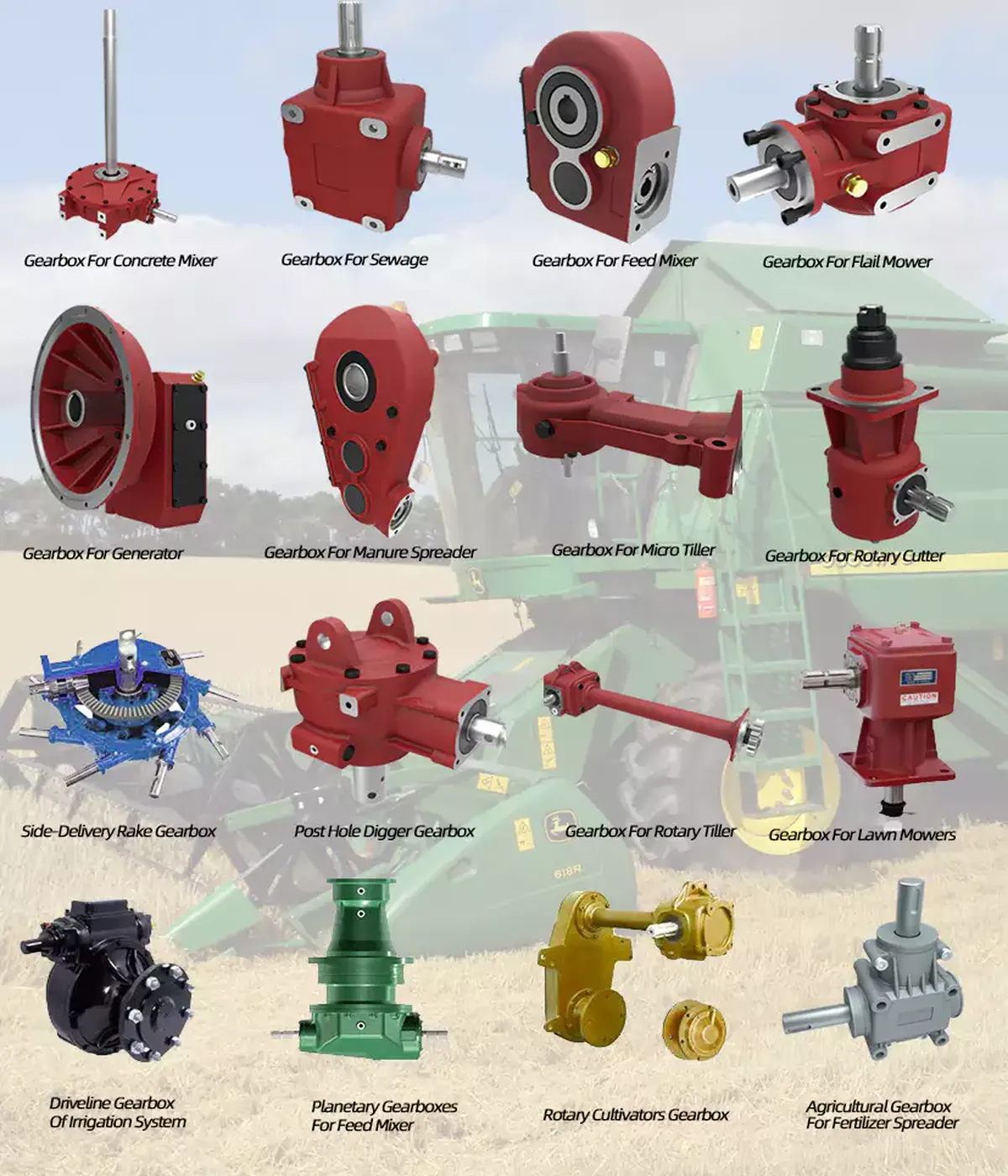

Other Agricultural Gearboxes

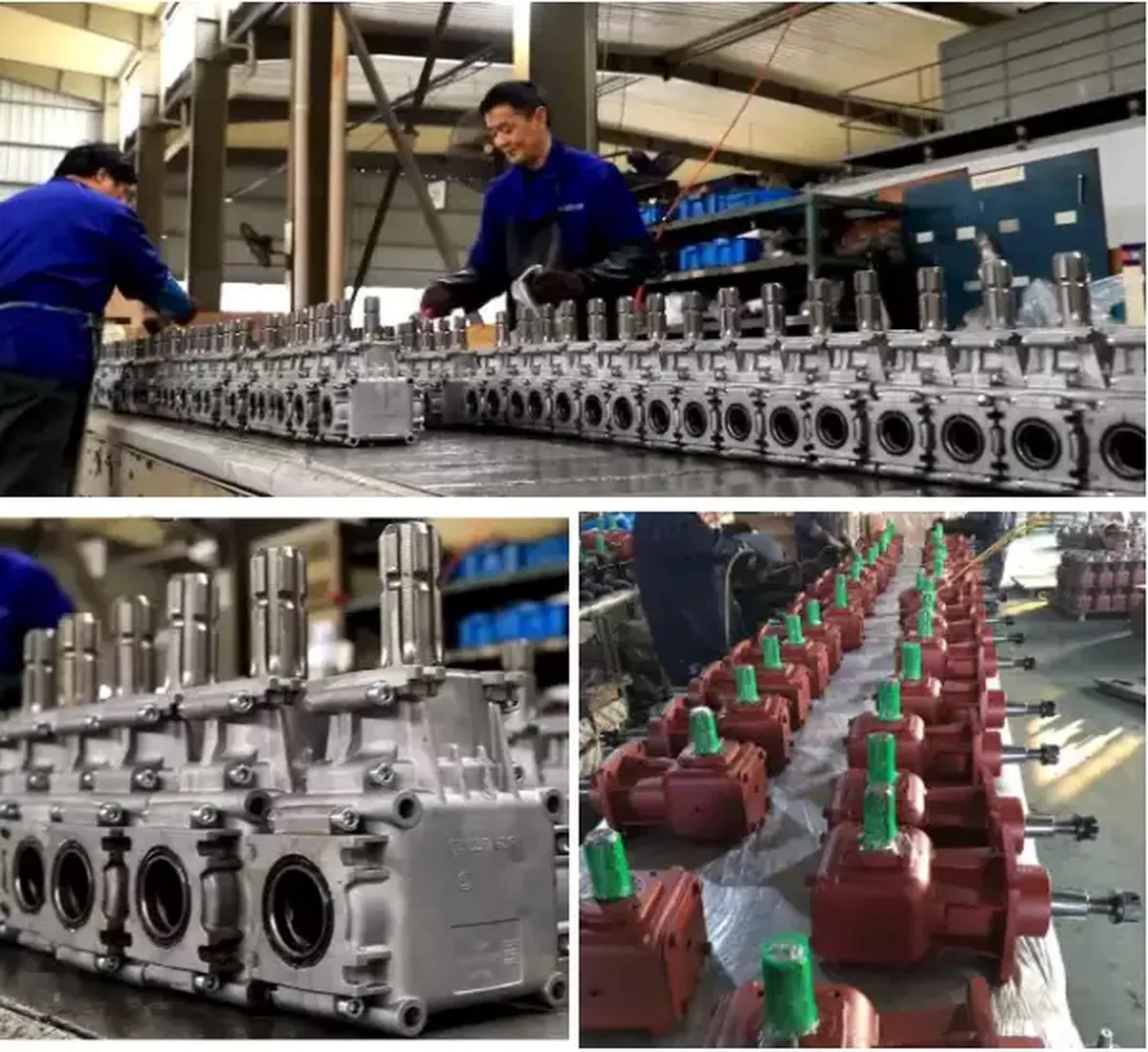

Agricultural Lawn Mower Gearbox Suppliers

Taizhou HZPT Transmission Machinery Co., Ltd. is devoted to R&D and manufacturing and personnel training on various gearboxes, reducers, and engineering machinery, including bevel gearboxes, agricultural gearboxes, planetary gearboxes, helical gearboxes, cycloidal gearboxes, worm gearboxes. HZPT offers reliable agricultural gearbox solutions for almost any farming application. The agricultural gearbox is the main mechanical component of the kinematic chain of farming machines. We make high-quality for all kinds of agriculture gearboxes. Vast choices include the agricultural machine application of rotary cutters, fertilizer spreaders, feed mixers, post-hole diggers, flail mowers, rotary tillers, etc. Welcome to contact us by phone or email.

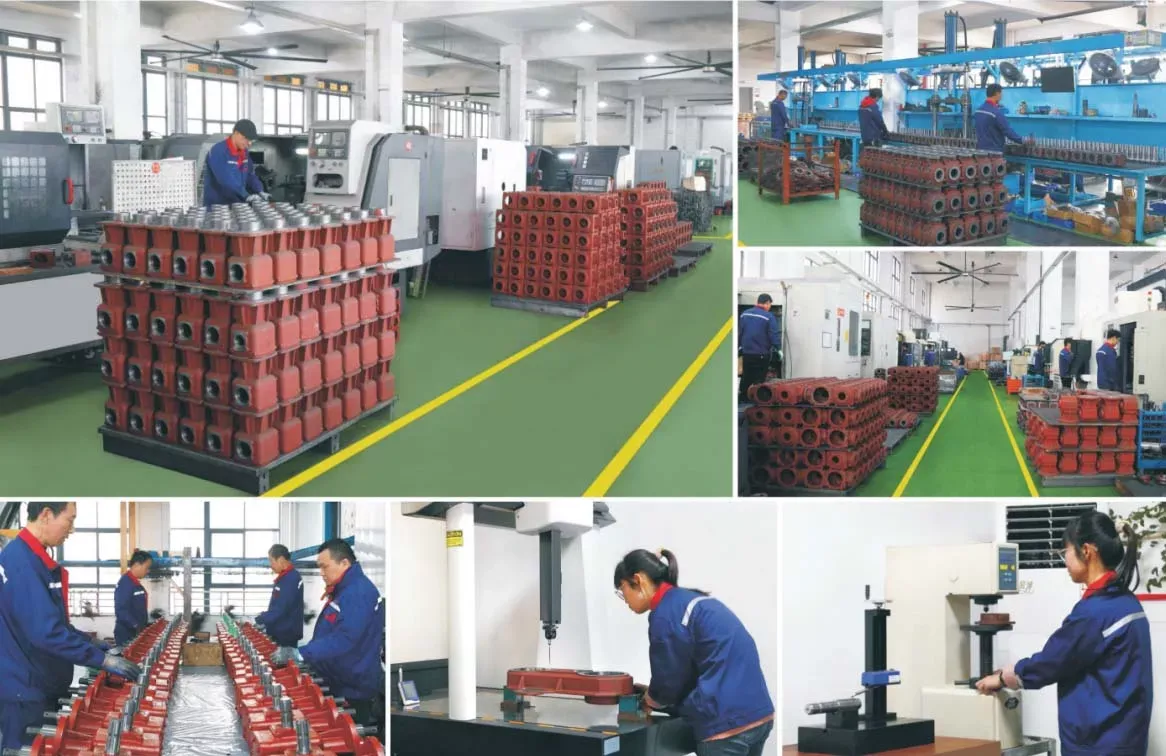

Agricultural Gearbox Production Workshop

HZPT's factory is located in Zhejiang, China. Have a professional team and advanced equipment. CNC workshop, gear hobbing workshop, insert workshop, gear cutter milling machine, heat treatment workshop, assembly workshop and automatic spray painting line form a complete assembly line.

FAQ
