Cyclo Drive Reducer BWD Type Gearbox

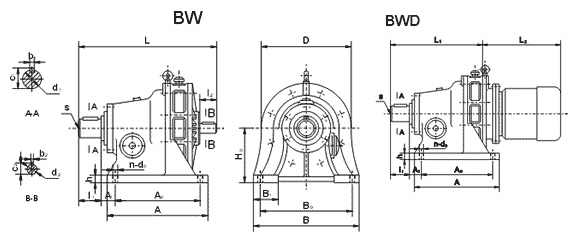

Appearance and installation dimension聽聽聽聽聽聽聽聽聽聽(mm)

Frame	Center height	聽Installation dimension								Shaft end dimension
		A₁	A₀	B₁	B₀	h	s	Hole		聽Output shaft				聽Input shaft
		A₁	A₀	B₁	B₀	h	s	n	d₀	d₁	b₁	c₁	l₁	d₂	b₂	c₂	l₂
09	80	17	76	30	120	12	M8	4	11	22	6	24.5	30	15	5	17	25
10	100	58	90	35	150	14			11	30	8	33	35	15	5	17	22
11	120	69	110	55	240	16			16	35	10	38	56	18	6	20.5	35
12	140	73	150	60	280	20	M10		16	45	14	48.5	71	22	6	24.5	40
13	160	78	200	75	340	25	M12		17	55	16	59	80	30	8	33	55
14	200	53	320	90	340	25	M12		22	70	20	74.5	102	35	10	38	60
15	240	39	380	90	420	32	M16		22	90	25	95	120	45	14	48.5	70
16	290	45	480	80	560	35	M20		26	100	28	106	140	50		53.5	82
16A	280	45	440	80	500	35			26	100	28	106	140	50		53.5	82
17	325	80	500	120	630	40			30	120	32	127	165	55	16	59	100
18	420	122	330脳2	160	800	50	2-M20	6	32	140	36	148	210	70	20	74.5	120

(mm)

Frame	聽Outer side dimension								Weight kg
	A	B	H	D	Double Shaft style	Flange style
	A	B	H	D	L	L₁	L₂	B₂
09	100	144	160	140	203	142	According to motor size		6.5
10	120	185	184	168	215	155			14
11	160	280	240	200	269	191			29
12	200	320	275	240	340	255			45
13	250	390	356	300	409	294			80
14	380	400	425	340	487	369			135
15	440	470	529	430	581	440			210
16	560	620	614	500	676	443			400
16A	520	560	614	500	724	443			400
17	600	690	706	580	795	639			660
18	810	880	883	710	1030	819			1180

Note:Matching tolerance of shaft聽d₁/d₂is h6

Configutation of single-stage Reduction Horizontal Type Reducers

Cyclo Drive Reducer BWD Type Gearbox

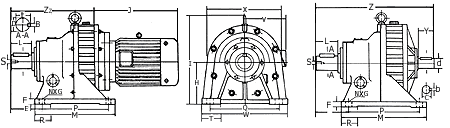

Model BWD,BW(Single Stage Reduction)Contour and Installation Dimensions

Frame No.	Contour dimensions(mm)							Installstion Dimensions(mm)										Size of Shaft End(mm)
Frame No.	M	W	Z1	Z2	I	X	JV	P	E	R	F	Q	T	S	N	G	H	B	T	D	L	b	c	d	r
10	110	140	182	129	114	127	According to the Dimensions of Medium Flange and Motor	80	74	35	12	115	36	M4	4	11	80	6	20.5	18js6	28	5	16	14js6	25
12	120	185	215	165	190	168		90	93	-	15	150	35	M8	4	11	100	8	33	30js6	35	5	17	15js6	22
15	160	250	262	200	260	210		120	120	-	18	210	50	M8	4	15	120	10	38.5	35k6	56	6	22.5	20js6	30
18	230	290	335	260	300	245		180	125	-	20	240	60	M8	4	15	140	14	49	45k6	75	8	28	25js6	40
22	280	330	393	311	350	290		220	155	-	20	290	65	M10	4	17	160	16	60	55k6	90	8	33	30js6	45
27	380	400	462	359	430	350		320	153	65	25	340	70	M12	4	22	200	20	76	70m6	100	10	38.5	35k6	60
33	440	470	545	432	520	420		380	155	100	32	420	80	M16	4	22	240	24	97	90m6	116	14	49	45k6	70
39	520	560	668	528	605	500		440	200	150	35	500	90	M20	4	26	280	28	108	100m6	140	16	55	50k6	80
45	600	690	783	594	706	580		500	245	150	45	630	105	M24	4	28	325	28	116	110m6	165	16	60	66k6	82
55	810	880	966	733	880	735		330*2	322	-	50	800	140	M33	6	36	420	36	140	130m6	200	20	76	70k6	105
65	900	1030	1120	-	1008	855		375*2	354	-	55	920	170	M36	6	40	490	40	171	150m6	240	24	87	80k6	130
