Product Description

Cyclo Drive Reducer XWD Type Cycloidal Gearbox

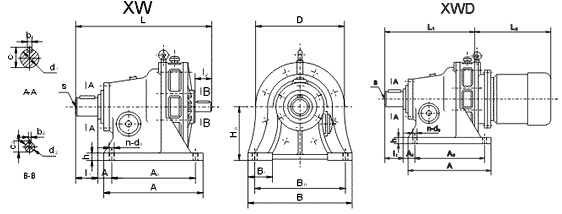

Appearance and installation dimension

(mm)

Frame	Center height	聽Installation dimension								聽Shaft end dimension
		A₁	A₀	B₁	B₀	h	s	Hole		聽Output shaft				聽Input shaft
		A₁	A₀	B₁	B₀	h	s	n	d₀	d₁	b₁	c₁	l₁	d₂	b₂	c₂	l₂
1	100	25	90	40	150	12	M8	4	12	25	8	31	35	15	5	17	25
2	100	67	90	45	180	15			12	25	8	28	34	15	5	17	25
3	140	96	100	55	250	20			16	35	10	38	55	18	6	20.5	35
4	150	95	145	65	290	22	M10			45	14	48.5	74	22	6	24.5	40
5	160	115	150	75	370	25	M12			55	16	59	91	30	8	33	45
6	200	36	275	75	380	30			22	65	18	69	89	35	10	38	54
7	220	36	320	85	420	30				80	22	85	109	40	12	43	65
8	250	35	380	100	480	35	M16			90	25	95	120	45	14	48.5	70
9	290	45	480		560	40	M20		26	100	28	106	141	50	14	53.5	80
10	325	80	500		630	45	M20		30	110	28	116	150	55	16	59	100
11	420	122	330脳2	160	800	50	2-M20	6	32	130	32	137	202	70	20	74.5	120

(mm)

Frame	聽Outer side dimension								Weight kg
	A	B	H	D	Double Shaft style	Flange style
	A	B	H	D	L	L₁	L₂	B₂
1	120	180	175	150	202	141	According to motor size		8
2	120	210	184	168	218	155			14
3	150	290	240	200	269	191			29
4	195	330	275	240	340	125			45
5	260	420	356	300	401	302			92
6	335	430	425	340	468	358			131
7	380	470	460	360	522	397			165
8	440	530	529	430	581	440			245
9	560	620	614	500	674	529			390
10	600	690	706	580	806	608			564
11	810	880	883	710	1022	811			1160

Note:Matching tolerance of shaft聽d₁/d₂聽is h6
