EP20100.131.00 Rotary Tiller Cultivator Gearbox for Agricultural

ITEM	EP20100.131.00 Rotary Tiller Gearbox
Ratio	1.31:1
Teeth	16/21
Module	聽7.0
Power(HP)	100
Rated Input	600rpm

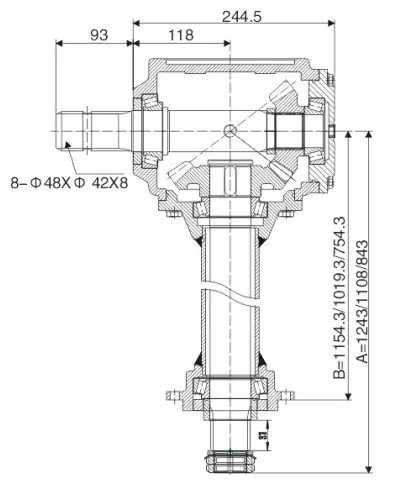

Input/Output Description	8-蠁 48x 蠁 42x8
Weight(N.W)	58KG

Scaling new heights in the agricultural industry, we are working towards empowering our farmers with the latest agricultural implement and equipment. Ensuring that our customers are benefited from our products, we offer optimum quality machinery that is durable and can be easily handled. These are scientifically designed by the manufacturers using the utmost quality factor inputs and advanced technology as per the international quality standards.

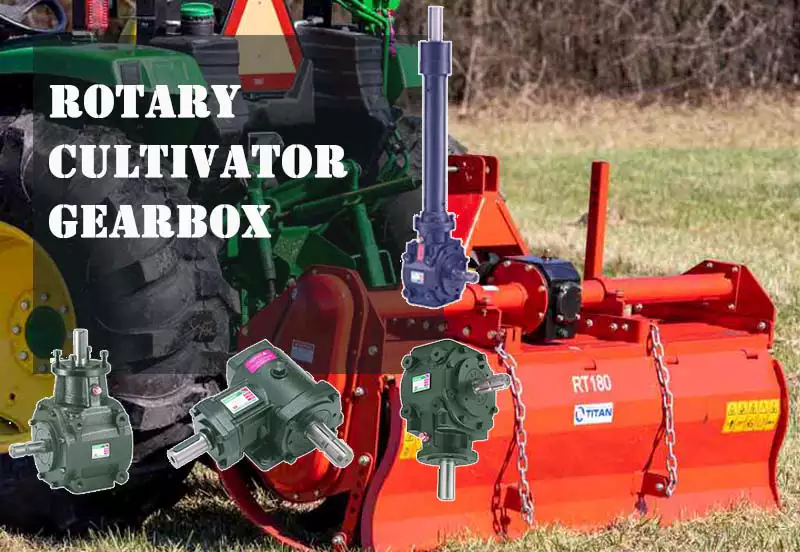

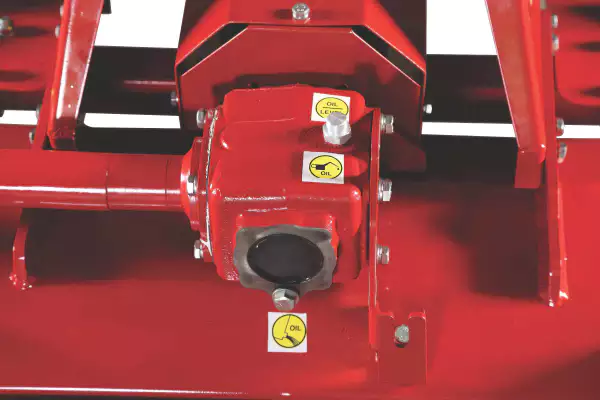

Rotary tiller gearbox is an adopted middle gear transmission system, mounted with a tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy fields. It can reduce the time, laboring, cost, etc. during operation

1. Transmission: Gear driven.
2. Graphite gearbox is made of cast iron.聽 Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. Easier and more reliable.
5. Side protection plates are added to the rear deflection. This device prevents the soil from flying out.
6.The tilling height can be adjustable.
7. The structure is firm and stable due to the heavyweight.

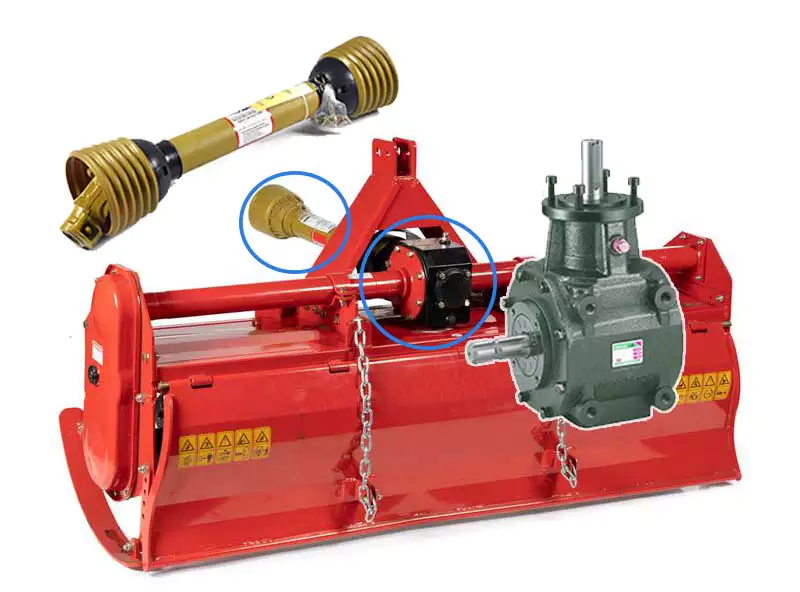

PTO Shafts for Agricultural Cultivator Gearbox

Agricultural equipment such as tractors, combines, and harvesters use PTO shafts. These components are subjected to high loads and stress, and it is vital to find out why they failed in the first place. Constant compression of the shaft can damage connecting shafts and even the tractor and implement. A PTO shaft for an agricultural gearbox is an integral part of an agricultural implement or tractor. And PTO shaft for the agricultural gearbox is secured with a safety shield at both ends and can be found on implements and tractors. A PTO shaft can be welded to the drive end by using a universal joint, while the rear shaft can be welded directly to the tractor.

If you also need the PTO drive shafts, please contact us!

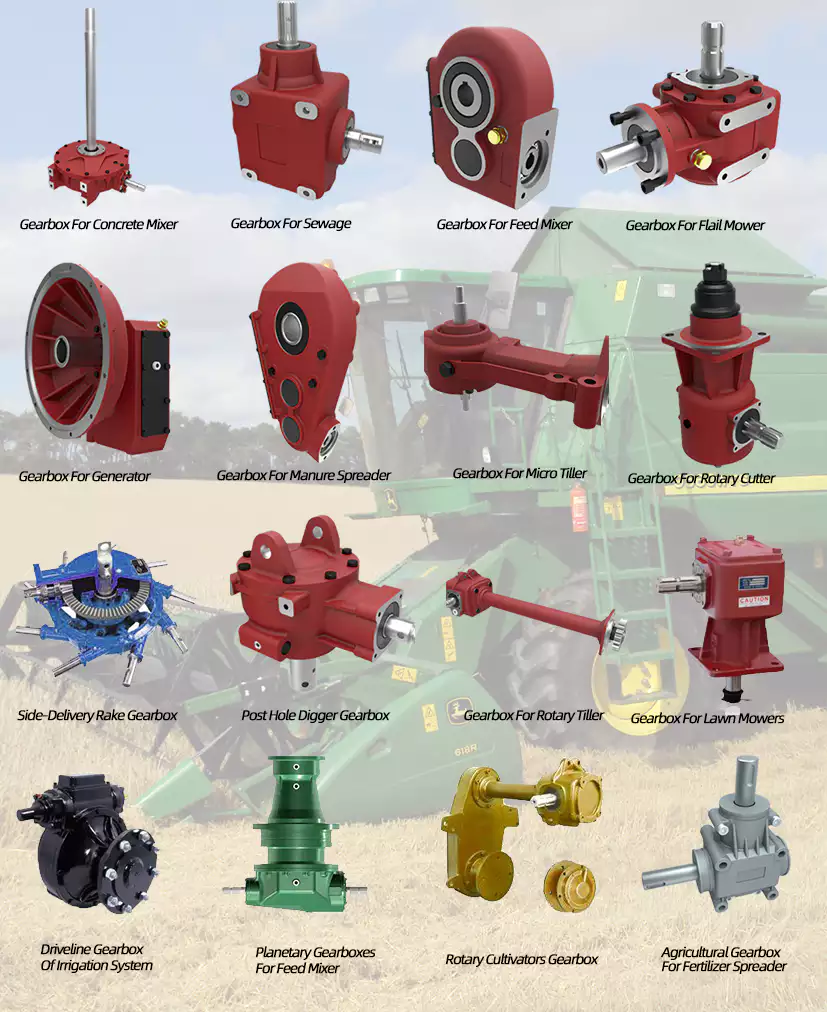

Other Agricultural Gearboxes

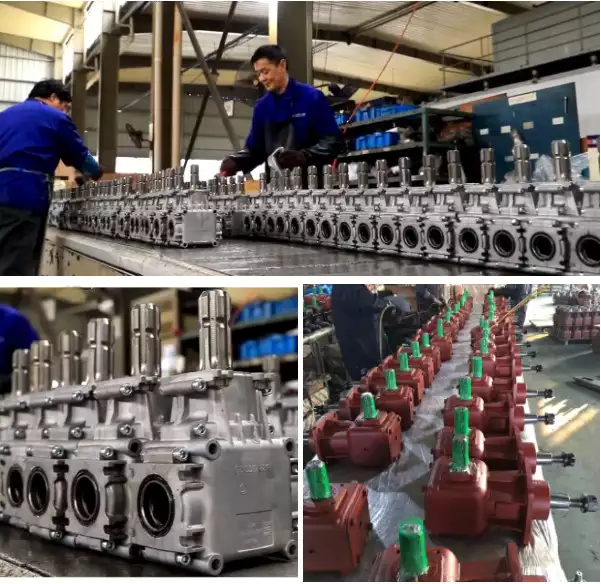

Agricultural Gearbox Production Workshop

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
