EP606L2/L3 Planetary Wheel Drives

EP606L2锛孡3 WHEEL DRIVES(606W..V)Technical specificationMax.Output Torque (N.m)Ratio (i)Recommend Hydraulic MotorMax. input speed (rpm)Brake torque (N.m)Brake work pressure (bar)EP606L18000EP606L228.3 35 43.2A2FE28路32 A2FE45路56路63 A6VE28路55400043020-50EP606L363.2 74 82.6 94 110.5 135.8Input rotation ......

Send Inquiry

Product Description

EP606L2锛孡3 WHEEL DRIVES(606W..V)

Technical specification

Max.Output Torque (N.m)		Ratio (i)	Recommend Hydraulic Motor	Max. input speed (rpm)	Brake torque (N.m)	Brake work pressure (bar)
EP606L
18000	EP606L2	28.3 35 43.2	A2FE28路32 A2FE45路56路63 A6VE28路55	4000	430	20-50
	EP606L3	63.2 74 82.6 94 110.5 135.8

- Input rotation opposite output rotation.
- Other ratio and other input type can be specially designed.

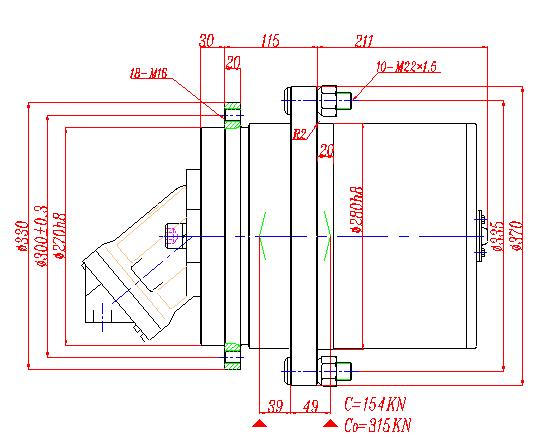

- When the gearbox is 2 stages, the dimension 211 should be changed to 159.
- If with manual disconnect application, please add mark聽鈥淢鈥澛?/strong>at the end of product model.
