Product Description

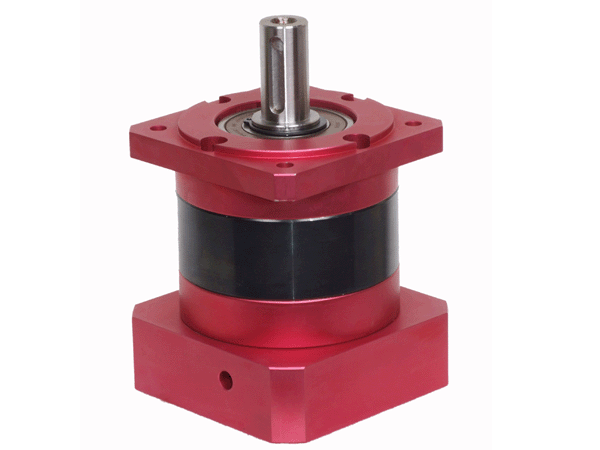

PLF Planetary Gearbox

PLF Planetary gearboxes technical data 锛?/p>

Type		PLF40	PLF60	PLF90	PLF115	PLF142	Ratio	Stages
Nominal output torqueT_2N	Nm	25	66	158	337	950	3	1
		27.5	71.5	172.5	360	1030	4
		27.5	71.5	172.5	360	1030	4
		23	53	124	300	850	5
		10	26	67	150	510	8
		- -	- -	- -	150	510	10
		25	66	158	337	950	9	2
		25	66	158	337	950	12
		25	66	158	337	950	15
		27.5	71.5	172.5	360	1030	16
		27.5	71.5	172.5	360	1030	20
		23	53	124	300	850	25
		27.5	71.5	172.5	360	1030	32
		23	53	124	300	850	40
		10	26	67	150	510	64
		25	66	158	337	950	60	3
		27.5	71.5	172.5	360	1030	80
		27.5	71.5	172.5	360	1030	100
		25	66	158	337	950	120
		27.5	71.5	172.5	360	1030	160
		23	53	124	300	850	200
		27.5	71.5	172.5	360	1030	256
		23	53	124	300	850	320
		10	26	67	150	510	512
Emergency stop	Nm	T_2Not=2T_2N

Type		PL40	PL60	PL90	PLF115	PLF142	stages
Fr_max.for10.000h	N	185	280	490	1250	3500
Fa_max.for10.000h	N	280	480	800	1900	5200
Efficiency with full load	%	96					1
		94					2
		90					3
Average lifetime	h	20000
Weight	Kg	0.35	0.90	2.10	6.00	19.00	1
		0.45	1.10	2.60	7.80	24.00	2
		0.55	1.30	3.10	9.50	29.00	3

Type		PLF40	PLF60	PLF90	PLF115	PLF142	Ratio
Moment of inertia	kgcm²	0.031	0.135	0.77	2.63	12.14	3
		0.022	0.093	0.52	1.79	7.78	4
		0.019	0.078	0.45	1.53	6.07	5
		0.017	0.065	0.39	1.32	4.63	8
		0.03	0.131	0.74	2.62	12.15	9
		0.029	0.127	0.72	2.56	12.37	12
		0.023	0.077	0.71	2.53	12.35	15
		0.022	0.088	0.5	1.75	7.47	16
		0.019	0.075	0.44	1.5	6.65	20
		0.019	0.075	0.44	1.49	5.81	25
		0.017	0.064	0.39	1.3	6.36	32
		0.016	0.064	0.39	1.63	5.28	40
		0.016	0.064	0.39	1.3	4.5	64
		0.029	0.076	0.51	2.57	7.5	60
		0.019	0.075	0.5	1.5	7.5	80
		0.019	0.075	0.44	1.49	7.4	100
		0.029	0.064	0.7	2.5	7.3	120
		0.016	0.064	0.39	1.3	6.5	160
		0.016	0.064	0.39	1.3	6.2	200
		0.016	0.064	0.39	1.3	5.7	256
		0.016	0.064	0.39	1.3	5.4	320
		0.016	0.064	0.39	1.3	5.2	512

Banklash		arcmin(鍒?	PLF40	PLF60	PLF90	PLF115	PLF142	stages
	precision		<5	<3	<3	<3	<5	1
	criterion		<10	<8	<8	<8	<10	1
	precision		<8	<5	<5	<5	<8	2
	criterion		<12	<10	<10	<10	<12	2
	precision		<10	<8	<8	<8	<10	3
	criterion		<15	<12	<12	<12	<15	3

		PLF40	PLF60	PLF90	PLF115	PLF142
Torsinal rigidity	Nm/arcmin	0.7	1.8	4.4	9.2	26.7
Noise	dB(A)	55	58	60	65	70
Max.input speed	min^-1	10000	8000	6000	6000	6000
Advised input speed	min^-1	4500	4000	4000	3500	3000

PLF Planetary Gearbox

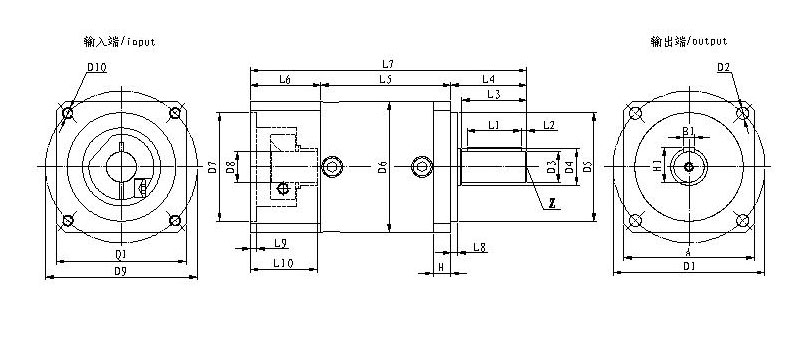

PLF Planetary gearboxes dimensions锛?/p>

	Type		PLF40			PLF60			PLF90			PLF115¹			PLF142²
	stages		1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
A	Flange length		45			60			90			120			175
D1	Flange holes circle		50			70			100			130			185
D2	Mounting threadx depth	4?/font>	蠁3.5			蠁5.5			蠁6.5			蠁8.5			蠁11
D3	Output shaft deameter	h6	10			14			20			25			40
D4	Shaft root		12			17			25			35			55
D5	Output centering	h7	26			50			80			110			130
D6	Body diameter		40			60			80			115			160
D7	Input pinion bore	H7	30			50			70			110			114.3
D8	Input pinion bore	F7	8			14			19			22			35
D9	Hole circle		46			70			90			145			200
D10	Mounting threadx depth		M4?0			M5?2			M6?5			M8?0			M12?5
Q1	Input flange	鈻?/td>	40			60			80			120			175
L1	Key length		15			25			30			40			65
L2	Distance from shaft end		4			2.5			3			5			7.5
L3	Shaft length from output		23			30			36			50			80
L4	Shaft length from output		26			35			40			55			87
L5	Body length		38	50.7	63.2	47	60.5	74	60	78.5	96	99.5	126.5	154	173.5	223	263.5
L6	Motor flange length		24.3			32			44			39			25
L7	Overall length		88.5	101	113.5	114	127.5	141	144	162.5	180	193.5	220.5	248	285.5	335	375.5
L8	Spigot depth		2			3			3			4			5
L9	Motor location depth		6			6.5			6.5			6.5			3.5
L10	Motor shaft length		25			30			40			55			79
B1	Key width		3			5			6			8			12
H1	Key height		11.2			16			22.5			28			43
H	Flange length		6			8			10			14			15
Z	Orient holes		M3?			M5?2			M6?6			M10?2			M12?5

*For longer motor shafts L6 apEPLies:The measure L6 and L10 will be lengthen by the same amount as the motor shaft.
Hornwork 1锛塱=10 hour锛孉=鈻?20锛孡5=96锛孡7=191锛汬ornwork 2锛塱=10 hour锛孡5=178锛孡7=290銆?/p>
