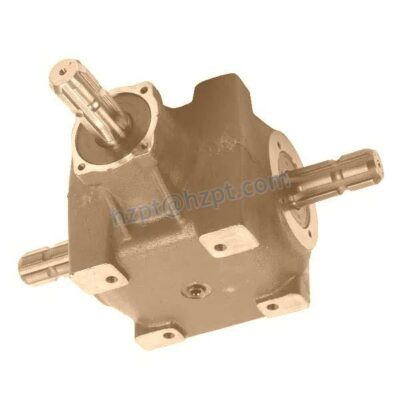

T-27A Rotary Tillers Gearbox
PTO Generators Gearboxes - Replacement of Comer Code T-27A
Circular Saws and Belt Saws Gearboxes - Replacement of Comer Code T-27ADescriptionReplacement of Comer gearboxes cpl. T-27A speed increasingApplicationVarious (agricultural) applications
Fertilizer spreaders
Multi-row rotary tillers
Band saw......
PTO Generators Gearboxes - Replacement of Comer Code T-27A
Circular Saws and Belt Saws Gearboxes - Replacement of Comer Code T-27A
| Description |
Replacement of Comer gearboxes cpl. T-27A speed increasing
|
|
|---|---|---|
| Application |
|
|
| Consists of |
|
|
| Technical information |
|
|
| Max. input power |
22.1聽kW
|
|
| Max. output torque |
49.6聽daNm
|
|
| Contains oil |
No
|
|
| Max. oil capacity |
1.2聽l
|
|
| Max. oil change interval |
500聽h
|
|
| Oil SAE viscosity grade |
80W-90
|
|
| Housing material |
Cast iron GG25
|
|
| Weight |
21聽kg
|
|
| Gear arrangement Increasing |
33 - 34
|
|
| Gear arrangement Reducing |
11 - 12 - 13 - 14
|
|
| Gear ratio |
1.92:1
|
|
| Input power kW / HP Increasing |
22.1 / 30聽kW/HP
|
|
| Input shaft Increasing |
Z
|
|
| Input shaft Reducing |
X - Y
|
|
| Input power KW / HP Reducing |
15,1 / 20,5聽kW/HP
|
|
| Output Torque DaNm Increasing |
19.7聽daNm
|
|
| Ratio Increasing |
1 : 1,92
|
|
| Ratio Reducing |
1,92 : 1
|
|
| Input section |
Z
|
|
| Shaft X |
1 3/8" (6) (D)
|
|
| Shaft Y |
1 3/8" (6) (D)
|
|
| Shaft Z |
1 3/8" (6) (E)
|
