WDK Series Worm Gear Reducer

WDKShaft DirectionSIZE KW RATIO A AB AC B BB BD BE C CC F H HH HL Z脳L FLANGE INPUT HOLE OUTPUT SHAFT KGLA LB LC LE LG LZ Q U T脳V S W脳Y50 0.18 1/10 1/20 1/30 1/40 1/50 1/60 165 95 115 40 107 64 50 101 50 85 150 115 35 M6脳20 115 95 140 5 10 M8 25 11 4脳12.5 20 6脳22.8 760 0.37 185 105 126 45 117 74 55 1......

Send Inquiry

Product Description

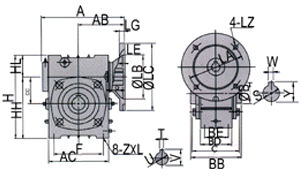

WDK	Shaft Direction

SIZE	KW	RATIO	A	AB	AC	B	BB	BD	BE	C	CC	F	H	HH	HL	Z脳L	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																	LA	LB	LC	LE	LG	LZ	Q	U	T脳V	S	W脳Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	165	95	115	40	107	64	50	101	50	85	150	115	35	M6脳20	115	95	140	5	10	M8	25	11	4脳12.5	20	6脳22.8	7
60	0.37		185	105	126	45	117	74	55	111	60	105	177	135	42	M8脳20	130	110	160	5	12	M8	35	14	5脳16.3	25	8脳28.3	11
70	0.37		209	115	155	50	131	84	65	125	70	125	215	160	55	M10脳25	130	110	160	5	12	M8	35	14	5脳16.3	30	8脳33.3	14
	0.75																165	130	200		15	M10	45	19	6脳21.8
80	0.75		242	135	174	60	144	94	70	138	80	140	250	185	65	M12脳28	165	130	200	5	15	M10	45	19	6脳21.8	35	10脳38.3	22
	1.5																						55	24	8脳27.3
100	1.5		310	175	224	70	175	114	90	165	100	180	310	230	80	M12脳30	165	130	200	5	15	M10	55	24	8脳27.3	40	12脳43.3	36
120	2.2		361	205	264	75	200	134	100	190	120	220	370	275	95	M14脳32	215	180	250	5	18	M12	65	28	8脳31.3	45	14脳48.8	63
	3.0
135	3.0		412	235	304	95	212	144	110	202	135	260	425	320	105	M16脳35	215	180	250	5	18	M12	65	28	8脳31.3	60	18脳64.6	80
	4.0
155	5.5		442	250	330	110	312	170	120	285	155	280	461	358	103	M16脳35	265	230	300	5	22	M12	85	38	10脳41.3	70	20脳74.9	114
