Auger Drives EPT-780AD
Excavator Auger Drives - Planetary Gearbox Auger Drive - Post Hole digger
Model: Auger Drives EPT-780ADModel
Normal torque
(N.m)
Max. intermittent torque(N.m)
Maximum axial force of output shaft(KN)
Maximum radial force at the midpoint of the output shaft
n2*h=30000(KN)

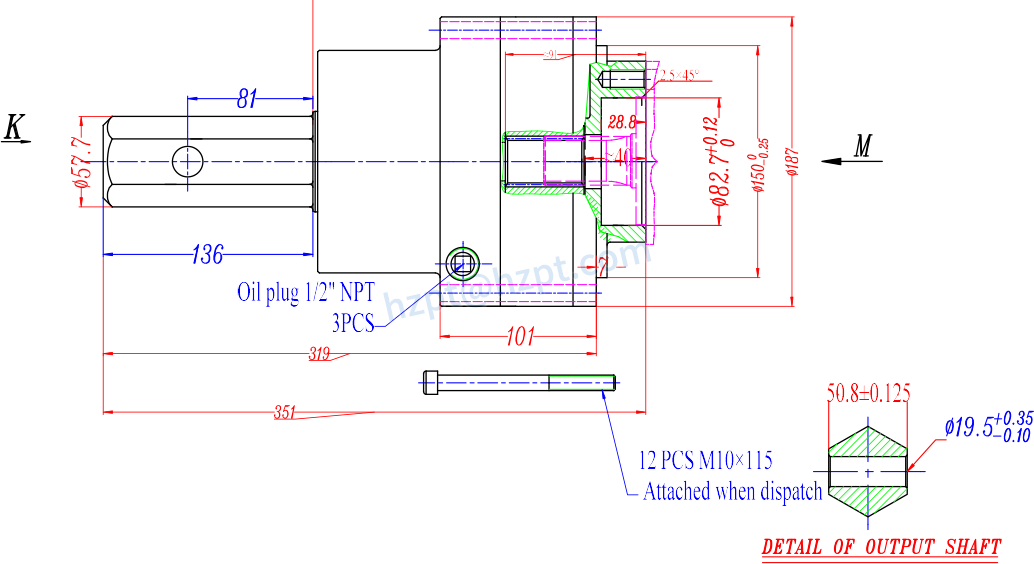

Output shaft
Reduction ratioE......
Excavator Auger Drives - Planetary Gearbox Auger Drive - Post Hole digger
Model: Auger Drives EPT-780AD
| Model | Normal torque (N.m) |
Max. intermittent torque(N.m) | Maximum axial force of output shaft(KN) | Maximum radial force at the midpoint of the output shaft n2*h=30000(KN) |
Output shaft | Reduction ratio | |||
| EPT-780AD | 2400 | 4500 | 81 | 25 | 2" hex shaft | 3.67:1 | |||
| * NORMAL INPUT SPEED 1000rpm | |||||||||
| * INPUT MOTOR: SAE A FLANGE(magneto), DP12/24, Z14, 4 HOLES | |||||||||
| * WITHOUT LUBRICANTS | |||||||||
| * ONLY WITH PRIMER, WITHOUT TOP COAT | |||||||||
| * OUTPUT SHAFT DOWN MOUNTED | |||||||||

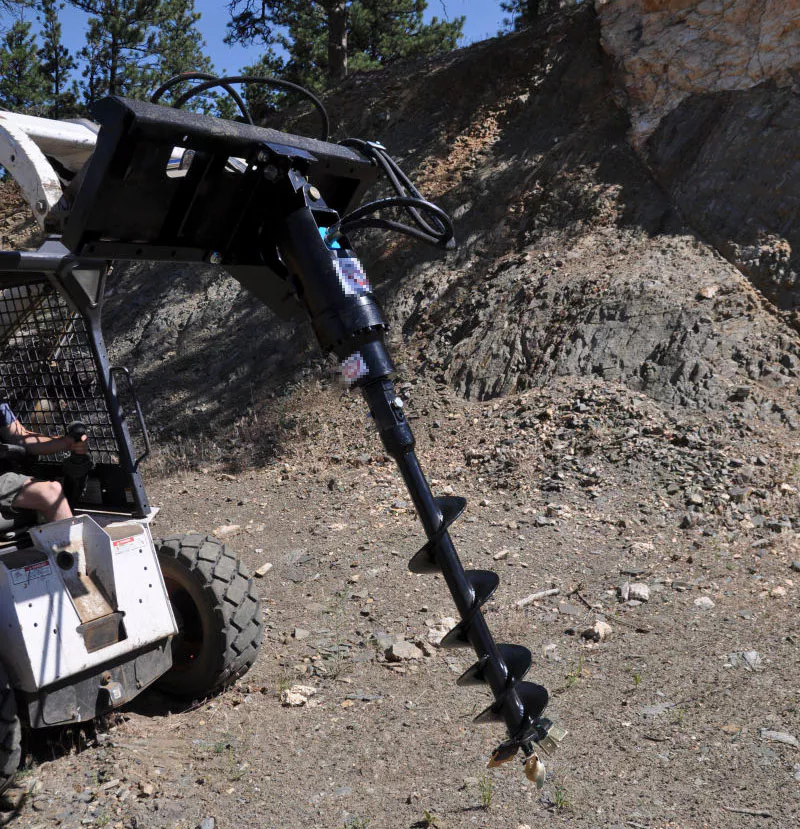

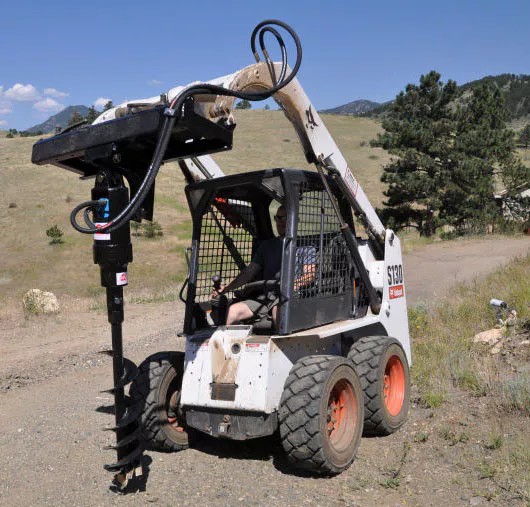

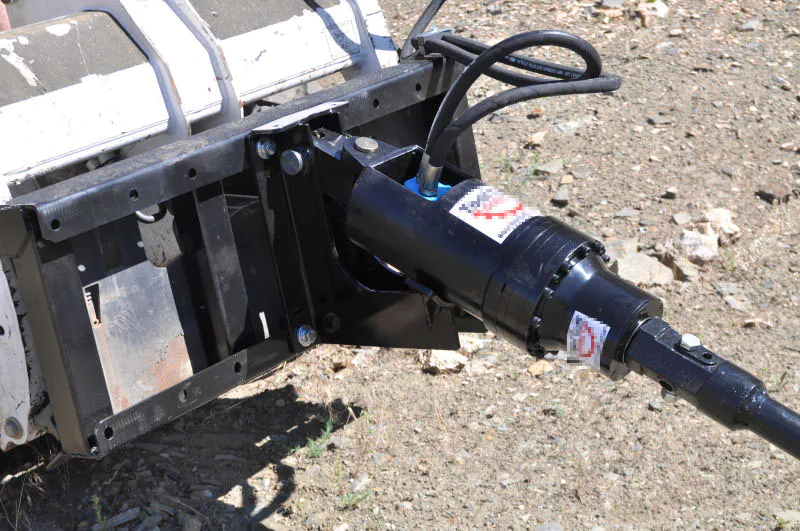

A complete hydraulic earth auger attachment consists of a drive unit, mounting bracket, hoses and couplers and auger drivers. Our auger drives can be used on everything from a compact tractor to a 60,000 lb. excavator and are engineered to handle the higher hydraulic flows (gpm) and pressures (psi) of today's machinery. For a complete list of mounts, auger drives, pto adapters, extensions, collars and parts, please contact us.
