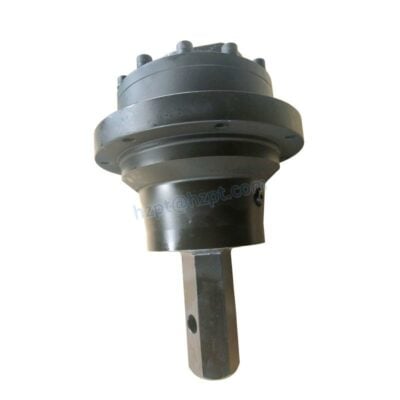

Auger Drives EPT-882E
Excavator Auger Drives - Planetary Gearbox Auger Drive - Post Hole digger
Model: Auger Drives EPT-882EModel
Normal torque
(N.m)
Max. intermittent torque(N.m)
Maximum axial force of output shaft(KN)
Maximum radial force at the midpoint of the output shaft
n2*h=30000(KN)
Output shaft
Reduction ratioEP......
Excavator Auger Drives - Planetary Gearbox Auger Drive - Post Hole digger
Model: Auger Drives EPT-882E
| Model | Normal torque (N.m) |
Max. intermittent torque(N.m) | Maximum axial force of output shaft(KN) | Maximum radial force at the midpoint of the output shaft n2*h=30000(KN) |
Output shaft | Reduction ratio | |||
| EPT-882E | 3400 | 7500 | 81 | 25 | 2" hex shaft | 5.06:1 | |||
| * MAX. INPUT SPEED 3000rpm | |||||||||
| * INPUT MOTOR: SAE C FLANGE, DP12/24, Z17, 4 HOLES | |||||||||
| * WITHOUT LUBRICANTS | |||||||||
| * ONLY WITH PRIMER, WITHOU TOP COAT | |||||||||
| * OUTPUT SHAFT DOWN MOUNTED | |||||||||

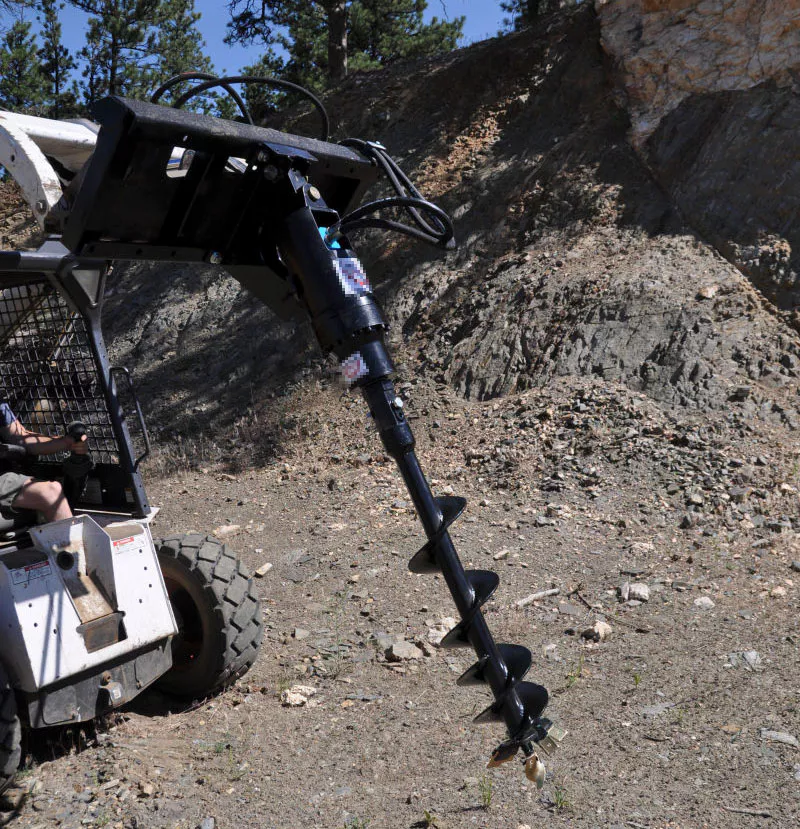

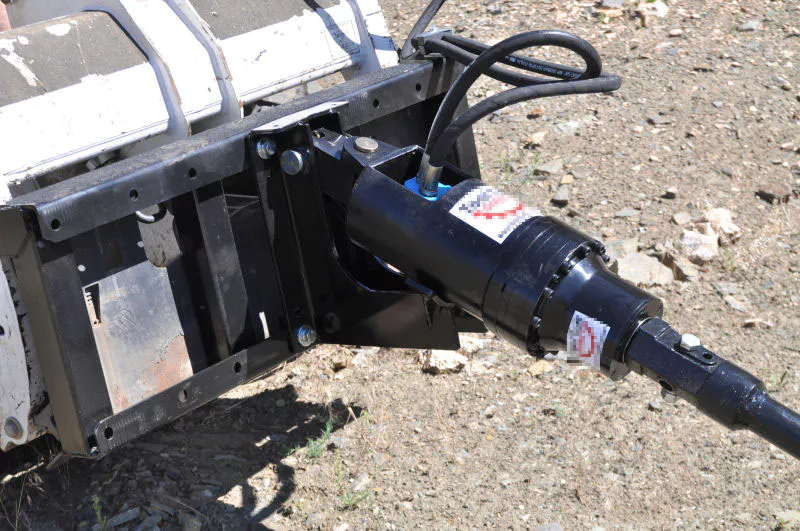

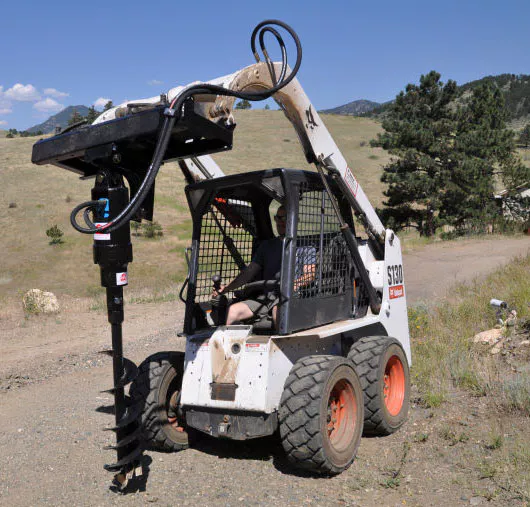

A complete hydraulic earth auger attachment consists of a drive unit, mounting bracket, hoses and couplers and auger drivers. Our auger drives can be used on everything from a compact tractor to a 60,000 lb. excavator and are engineered to handle the higher hydraulic flows (gpm) and pressures (psi) of today's machinery. For a complete list of mounts, auger drives, pto adapters, extensions, collars and parts, please contact us.
Applications:
