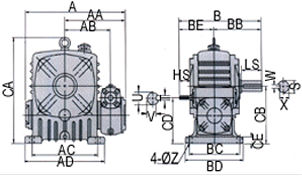

EA Series Double Worm Gear Reducer
FCEAShaft DirectionSIZE
RATIO
A
AA
AB
AC
AD
B
BB
BC
BD
BE
CA
CB
CD
CE
Z
INPUT SHAFT
OUTPUT SHAFTHS
U
T
V
LS
S
W
X40-60
1/200 1/300 1/400 1/500 1/600 1/800 1/900
232
156
112
120
150
195
110
105
130
85
210
120
100
20
11
25
12
4
9.5
50
22
7
1850-80
289
184
132
180
220
247
140
135
170
105
278
160
130
20......
FCEA |
Shaft Direction
|
| SIZE | RATIO | A | AA | AB | AC | AD | B | BB | BC | BD | BE | CA | CB | CD | CE | Z | INPUT SHAFT | OUTPUT SHAFT | ||||||||
| HS | U | T | V | LS | S | W | X | |||||||||||||||||||
| 40-60 | 1/200 1/300 1/400 1/500 1/600 1/800 1/900 | 232 | 156 | 112 | 120 | 150 | 195 | 110 | 105 | 130 | 85 | 210 | 120 | 100 | 20 | 11 | 25 | 12 | 4 | 9.5 | 50 | 22 | 7 | 18 | ||
| 50-80 | 289 | 184 | 132 | 180 | 220 | 247 | 140 | 135 | 170 | 105 | 278 | 160 | 130 | 20 | 15 | 30 | 12 | 4 | 9.5 | 65 | 32 | 10 | 27.5 | |||
| 60-100 | 352 | 219 | 161 | 220 | 270 | 294 | 155 | 155 | 190 | 120 | 372 | 200 | 160 | 25 | 15 | 40 | 15 | 5 | 12 | 75 | 38 | 10 | 33.5 | |||
| 70-120 | 417 | 258 | 195 | 260 | 320 | 325 | 185 | 180 | 230 | 140 | 430 | 240 | 190 | 30 | 18 | 40 | 18 | 5 | 15 | 85 | 45 | 12 | 40.5 | |||
| 80-135 | 462 | 287 | 211 | 290 | 350 | 370 | 210 | 200 | 250 | 160 | 491 | 270 | 215 | 30 | 18 | 50 | 22 | 7 | 18 | 95 | 55 | 15 | 50 | |||
| 100-155 | 542 | 349 | 257 | 320 | 390 | 442 | 252 | 220 | 280 | 190 | 526 | 290 | 235 | 38 | 20 | 50 | 25 | 7 | 21 | 110 | 60 | 15 | 55 | |||
| 120-175 | 585 | 376 | 275 | 350 | 430 | 492 | 262 | 250 | 310 | 230 | 536 | 335 | 280 | 40 | 20 | 65 | 30 | 7 | 26 | 110 | 65 | 18 | 59 | |||
