EDA Series Double Worm Gear Reducer

EDAShaft DirectionSIZE KW RATIO A AA AB F N B BB E M BE H LL CD G Z FLANGE INPUT HOLE OUTPUT SHAFTLA LB LC LE LG LZ Q U T脳V LS S W脳Y40-60 0.12 1/200 1/300 1/400 1/500 1/600 1/800 1/900 258 182 112 120 150 186 110 105 130 76 210 120 100 20 11 115 95 140 5 10 M8 25 11 4脳12.8 50 22 7脳450-80 0.18 314 20......

Send Inquiry

Product Description

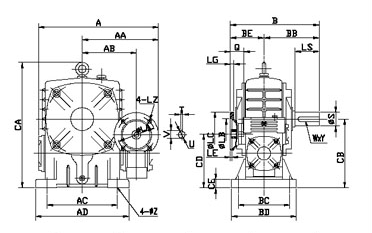

EDA	Shaft Direction

SIZE	KW	RATIO	A	AA	AB	F	N	B	BB	E	M	BE	H	LL	CD	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT
																		LA	LB	LC	LE	LG	LZ	Q	U	T脳V	LS	S	W脳Y
40-60	0.12	1/200 1/300 1/400 1/500 1/600 1/800 1/900	258	182	112	120	150	186	110	105	130	76	210	120	100	20	11	115	95	140	5	10	M8	25	11	4脳12.8	50	22	7脳4
50-80	0.18		314	209	139	180	220	224	140	135	170	84	278	160	130	20	15	115	95	140	5	10	M8	25	11	4脳12.8	65	32	10脳4.5
60-100	0.37		363	241	161	220	260	247	155	155	190	92	372	200	160	25	15	130	110	160	5	12	M8	35	14	5脳16.3	75	38	10脳4.5
70-120	0.37		429	275	195	260	320	295	185	180	230	110	430	240	190	30	18	130	110	160	5	12	M8	35	14	5脳16.3	85	45	12脳4.5
	0.75		449	295														165	130	200		15	M10	45	19	6脳21.8
80-135	0.75		505	330	230	290	350	338	210	200	250	128	491	270	215	30	18	165	130	200	5	15	M10	45	19	6脳21.8	95	55	15脳5
	1.5																							55	24	8脳27.3
100-155	1.5		565	365	265	320	390	397	252	220	280	145	526	290	235	38	20	165	130	200	5	15	M10	55	24	8脳27.3	110	60	15脳5
120-175	2.2		635	415	290	350	430	444	262	250	310	182	565	335	280	40	20	215	180	250	5	18	M12	65	28	8脳31.3	110	65	18脳6
	3.0
135-200	3.0		691	448	323	390	480	505	305	290	360	200	625	375	310	42	22	215	180	250	5	18	M12	65	28	8脳31.3	125	70	20脳7
