Product Description

EPL double shaft Planetary gearbox

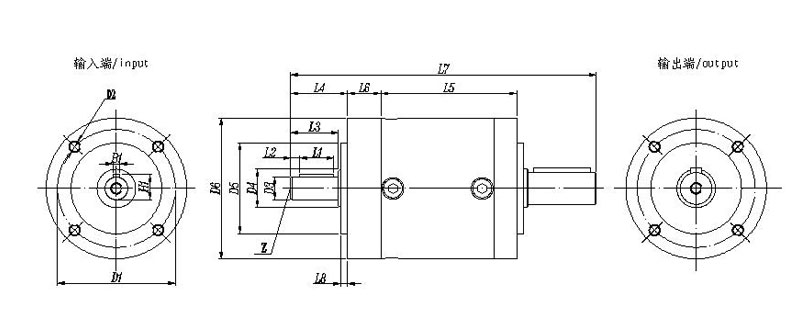

EPL double shaft EPL planetary gearboxes technical data锛?br /> EPL double shaft Planetary gearbox

	Type		EPL40			EPL60			EPL90			EPL120			EPL160
	stages		1	2	3	1	2	3	1	2	3	1	2	3	1	2	3
D1	flange holes circle		34			52			70			100			145
D2	Mounting threadx depth	4?/font>	M4?			M5?			M6?0			M10?6			M10?8
D3	Output shaft diameter	h7	8			10			16			20			35
D4	Shaft root		12			17			25			35			50
D5	Output centering	h7	26			40			60			80			130
D6	body diameter		40			60			80			115			170
L1	Key length		10			15			20			30			45
L2	Distance from shaft end		3.5			4			3			5			7
L3	Shaft length from spigot		17			21			26			40			58
L4	Shaft length from output		20			25			30			45			65
L5	Body length		38	50.7	63.2	47	60.5	74	60	78.5	96	74	101	128.5	97	136.5	177
L6	Motor flange length		10			14.5			18			33.5			50	60	60
L7	Overal lngth		94	106.7	119.2	121.5	135	148.5	148	166.5	184	207.5	234.5	262	299	348.5	389
L8	Spigot depth		2			3			3			4			5
B1	Key width		2			3			5			6			10
H1	Key height		8.8			11.2			18			22.5			38
Z	Orient holes		M3?			M4?			M5?2			M6?6			M12?5
Input shaft load	radial	N	80			130			230			580			650
	axial	N	85			150			260			600			700

For longer motor shafts L6 apPLies:The measure L6 and L10 will be lengthen by the same amount as the motor shaft.

Moment of inertia锛?/span>

Stages		1				2									3
Ratio	kgcm²	3	4	5	8	9	12	15	16	20	25	32	40	64	60	80	100	120	160	200	256	320	512
EPL40		0.018	0.01	0.006	0.005	0.017	0.016	0.015	0.009	0.007	0.007	0.005	0.005	0.005	0.015	0.007	0.007	0.013	0.005	0.005	0.005	0.005	0.005
EPL60		0.08	0.048	0.037	0.027	0.087	0.085	0.039	0.049	0.039	0.038	0.027	0.027	0.025	0.039	0.039	0.039	0.016	0.016	0.016	0.016	0.016	0.016
EPL90		0.73	0.35	0.24	0.18	0.73	0.36	0.72	0.35	0.25	0.25	0.18	0.08	0.16	0.35	0.28	0.7	0.18	0.18	0.18	0.18	0.16	0.16
EPL120		2.3	1.85	1.42	1.4	2.5	2.4	2.4	1.65	1.6	1.4	1.4	1.3	1.3	2.2	1.6	1.4	2.2	1.5	1.3	1.3	1.2	1.2
EPL160		17	12.5	11	9.5	-	17	17	12.3	11.7	10.8	11.4	10.3	9.5	- -	- -	- -	- -	- -	- -	- -	- -	- -

*For longer motor shafts L6 apEPLies:The measure L6 and L10 will be lengthen by the same amount as the motor shaft.
Hornwork 1锛塱=10 hour锛孉=鈻?20锛孡5=96锛孡7=191锛汬ornwork 2锛塱=10 hour锛孡5=178锛孡7=290銆?/span>
