Product Description

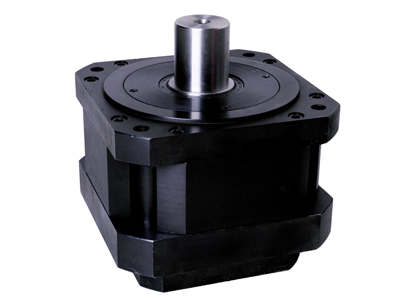

EPX Heavy Planetary Gearbox

Type		PX190	PX240	PX285	PX330	PX400	Ratio	Stages
Nominal output torqueT_2N	Nm	2086.7	3706.4	6398.5	10170.8	16091.8	4	1
		1550	3027.3	5236.3	8313.3	12414.0	5
		940.7	1836.5	3175.4	5043.4	7506.3	8
		- -	1800	- -	- -	- -	10
		- -		- -	- -	- -	9	2
		- -	- -	- -	- -	- -	12
		- -	- -	- -	- -	- -	15
		2086.7	3706.4	6398.5	10170.8	16091.8	16
		2086.7	3706.4	6398.5	10170.8	16091.8	20
		1550	3027.3	5236.3	8313.3	12414.0	25
		2086.7	3706.4	6398.5	10170.8	16091.8	32
		1550	3027.3	5236.3	8313.3	12414.0	40
		940.7	1836.5	3175.4	5043.4	7506.3	64
		2086.7	- -	- -	- -	- -	60	3
		2086.7	3706.4	6398.5	10170.8	16091.8	80
		2086.7	3706.4	6398.5	10170.8	16091.8	100
		1550	3027.3	5236.3	8313.3	12414.0	120
		2086.7	3706.4	6398.5	10170.8	16091.8	160
		1550	3027.3	5236.3	8313.3	12414.0	200
		2086.7	3706.4	6398.5	10170.8	16091.8	256
		1550	3027.3	5236.3	8313.3	12414.0	320
		940.7	1836.5	3175.4	5043.4	7506.3	512
Emergency stop	Nm	T_2Not=2T_2N

Type		PX190	PX240	PX285	PX330	PX400	Stages
Fr_max.for10.000h	N	4200	6750	9550	9200	15800
Fa_max.for10.000h	N	3400	6500	7800	8500	11500
Efficiency with full load	%	96					1
		94					2
		90					3
Average lifetime	h	20000
Weight	Kg	34+5	59+12	87+26	115+30	195+55	1
		37+5	75.5+12	110+26	160+30	285+55	2
		42.5+4	80+9	128+12	190+26	330+30	3

Banklash		arcmin(鍒?	PX190	PX240	PX285	PX330	PX400	Stages
	precision		<12	<10	<10	<10	<10	1
	criterion		<12	<10	<10	<10	<10	1
	precision		<15	<18	<18	<18	<18	2
	criterion		<15	<18	<18	<18	<18	2
	precision		<22	<22	<22	<22	<22	3
	criterion		<22	<22	<22	<22	<22	3

		PX190	PX240	PX285	PX330	PX400
Torsional rigidity	Nm/arcmin	66.7	123.3	213.3	339.0	536.4
Noise	dB(A)	70	70	70	70	70
Max.input speed	min^-1	6000	5000	5000	4500	3800
Advised input speed	min^-1	2500	2000	2000	2000	2000

EPX heavy planetary gearbox dimensions锛?/h3>

Type PX190 PX240 PX285 PX330 PX400

stages 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3

A Flange length 鈻?/td> 190 240 285 330 400

D1 flange holes circle 215 265 315 370 425

D2 Mounting threadx depth 4?/font> 蠁13.5 蠁18 蠁18 蠁22 蠁22

D3 Output shaft diameter h6 50 65 70 80 90

D4 Shaft root 60 75 85 90 100

D5 Output centering h7 160 225 250 290 350

D7 Input center bore for motor H7 114.3 114.3 114.3 180 114.3 114.3 230 180 180 250 230 230 300 250 250

D8 Input pinion bore F7 35 35 35 42 35 35 55 42 42 60 55 55 80 60 60

D9 Hole circle 200 200 200 215 200 200 265 215 215 300 265 265 350 300 300

D10 Mounting threadx depth M1230 M1230 M1230 M1230 M1230 M1230 M1230 M1230 M1230 M1640 M1240 M1230 M1640 M1640 M16*40

Q1 Input flange 鈻?/td> 176 176 176 240 176 176 285 240 240 330 285 285 400 330 330

L1 Key length 70 85 95 100 115

L2 Distance from shaft end 5 7.5 7.5 10 10

L3 Shaft length from spigot 80 100 110 120 135

L4 Shaft length from output 90 113 123 133 150

L5 Body length 186 234 270.5 185.5 255.5 303.5 211 277 350 241 333 427 287 393 498

L6 Motor flange length 57 57 57 78 57 57 100 78 78 130 100 100 160 130 130

L7 Overal lngth 333 381 417.5 316.5 425.5 473.5 434 478 548 504 566 660 597 673 778

L8 Spigot depth 8 8 8 8 10

L9 Motor location depth 4 4 4 6.5 6.5 6.5 6.5 6.5 6.5 8 6 6 8 8 8

L10 Motor shaft length 80 80 80 85 80 80 110 85 85 140 110 110 170 140 140

B1 Key width 14 18 20 22 25

H1 Key height 53.5 69 74.5 85 95

Z Orient holes M12?6 M12?6 M16?0 M16?0 M16?0

H Flange depth 26 25 25 25 35

B2 Key width js9 -- -- -- 12 -- -- 16 12 12 18 16 16 22 18 18

H2 Key height -- -- -- 45.3 -- -- 59.3 45.3 45.3 64.4 59.3 59.3 85.4 64.4 64.4

For longer motor shafts L6 applies:The measure L6 and L10 will be lengthen by the same amount as the motor shaft.
Hornwork 1锛塱=10 hour锛孉=鈻?20锛孡5=96锛孡7=191锛汬ornwork 2锛塱=10 hour锛孡5=178锛孡7=290銆?/strong>
