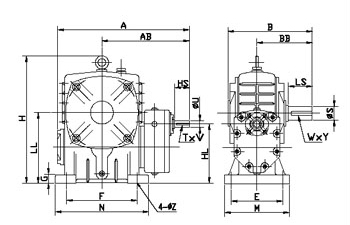

FA Series Double Worm Gear Reducer
FAShaft DirectionSIZE
RATIO
A
AB
B
BB
E
F
G
H
HL
LL
M
N
Z
INPUT SHAFT
OUTPUT SHAFTHS
U
T脳V
LS
S
W脳Y80
1/80 1/90 1/100 1/120 1/150 1/180
317
213
210
140
135
180
20
273
130
160
170
220
15
35
15
5脳3
65
32
10脳4.5100
390
258
230
155
155
220
25
340
160
200
190
260
15
40
18
5脳3
75
38
10脳4.5120
437
282
285
......
FA |
Shaft Direction
|
| SIZE | RATIO | A | AB | B | BB | E | F | G | H | HL | LL | M | N | Z | INPUT SHAFT | OUTPUT SHAFT | ||||
| HS | U | T脳V | LS | S | W脳Y | |||||||||||||||
| 80 | 1/80 1/90 1/100 1/120 1/150 1/180 | 317 | 213 | 210 | 140 | 135 | 180 | 20 | 273 | 130 | 160 | 170 | 220 | 15 | 35 | 15 | 5脳3 | 65 | 32 | 10脳4.5 |
| 100 | 390 | 258 | 230 | 155 | 155 | 220 | 25 | 340 | 160 | 200 | 190 | 260 | 15 | 40 | 18 | 5脳3 | 75 | 38 | 10脳4.5 | |
| 120 | 437 | 282 | 285 | 185 | 180 | 260 | 30 | 405 | 190 | 240 | 230 | 320 | 18 | 40 | 20 | 5脳3 | 85 | 45 | 12脳4.5 | |
| 135 | 496 | 321 | 320 | 210 | 200 | 290 | 30 | 455 | 210 | 270 | 250 | 350 | 18 | 50 | 25 | 7脳4 | 95 | 55 | 15脳5 | |
| 155 | 559 | 367 | 387 | 252 | 220 | 320 | 35 | 486 | 215 | 290 | 280 | 390 | 20 | 60 | 30 | 7脳4 | 110 | 60 | 15脳5 | |
| 175 | 630 | 407 | 407 | 262 | 250 | 350 | 37 | 556 | 260 | 335 | 310 | 430 | 20 | 75 | 35 | 10脳4.5 | 110 | 65 | 18脳6 | |
