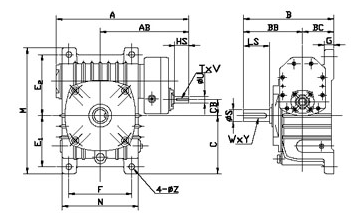

FO Series Double Worm Gear Reducer
FOShaft DirectionSIZE
RATIO
A
AB
B
BB
BC
CB
E1
E2
F
G
M
N
Z
INPUT SHAFT
OUTPUT SHAFTHS
U
T脳V
LS
S
W脳Y80
1/80 1/90 1/100 1/120 1/150 1/180
317
213
210
140
70
30
130
150
140
20
320
176
15
35
15
5脳3
65
32
10脳4.5100
390
258
245
155
90
40
155
180
190
30
375
226
15
40
18
5脳3
75
38
10脳4.5120
437
282
285
18......
FO |
Shaft Direction
|
| SIZE | RATIO | A | AB | B | BB | BC | CB | E1 | E2 | F | G | M | N | Z | INPUT SHAFT | OUTPUT SHAFT | ||||
| HS | U | T脳V | LS | S | W脳Y | |||||||||||||||
| 80 | 1/80 1/90 1/100 1/120 1/150 1/180 | 317 | 213 | 210 | 140 | 70 | 30 | 130 | 150 | 140 | 20 | 320 | 176 | 15 | 35 | 15 | 5脳3 | 65 | 32 | 10脳4.5 |
| 100 | 390 | 258 | 245 | 155 | 90 | 40 | 155 | 180 | 190 | 30 | 375 | 226 | 15 | 40 | 18 | 5脳3 | 75 | 38 | 10脳4.5 | |
| 120 | 437 | 282 | 285 | 185 | 100 | 50 | 185 | 215 | 220 | 30 | 450 | 266 | 18 | 40 | 20 | 5脳3 | 85 | 45 | 12脳4.5 | |
| 135 | 496 | 321 | 320 | 210 | 110 | 60 | 210 | 235 | 260 | 35 | 495 | 306 | 18 | 50 | 25 | 7脳4 | 95 | 55 | 15脳5 | |
| 155 | 559 | 367 | 392 | 252 | 140 | 75 | 245 | 295 | 290 | 40 | 590 | 350 | 20 | 60 | 30 | 7脳4 | 110 | 60 | 15脳5 | |
| 175 | 630 | 407 | 412 | 262 | 150 | 75 | 267 | 323 | 320 | 45 | 640 | 394 | 20 | 75 | 35 | 10脳4.5 | 110 | 65 | 18脳6 | |
