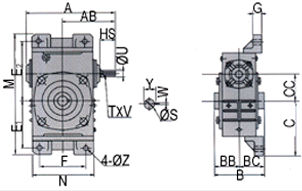

WKO Series Worm Gear Reducer
WKOShaft DirectionSIZE
RATIO
A
AB
B
BB
BC
C
CC
E1
E2
F
M
N
G
Z
INPUT SHAFT
OUTPUT SHAFT
KGHS
U
T脳V
S
W
Y50
1/10 1/20 1/30 1/40 1/50 1/60
175
105
107
53.5
50
110
50
90
110
90
225
115
14
11
30
12
4脳2.5
20
6
22.8
6.560
195
120
117
58.5
55
120
60
102
129
100
259
126
15
11
40
15
5脳3
25
8
28.3
960
195
120......
WKO |
Shaft Direction
 |
| SIZE | RATIO | A | AB | B | BB | BC | C | CC | E1 | E2 | F | M | N | G | Z | INPUT SHAFT | OUTPUT SHAFT | KG | ||||
| HS | U | T脳V | S | W | Y | |||||||||||||||||
| 50 | 1/10 1/20 1/30 1/40 1/50 1/60 | 175 | 105 | 107 | 53.5 | 50 | 110 | 50 | 90 | 110 | 90 | 225 | 115 | 14 | 11 | 30 | 12 | 4脳2.5 | 20 | 6 | 22.8 | 6.5 |
| 60 | 195 | 120 | 117 | 58.5 | 55 | 120 | 60 | 102 | 129 | 100 | 259 | 126 | 15 | 11 | 40 | 15 | 5脳3 | 25 | 8 | 28.3 | 9 | |
| 60 | 195 | 120 | 117 | 58.5 | 55 | 120 | 60 | 102 | 129 | 100 | 259 | 126 | 15 | 11 | 40 | 15 | 5脳3 | 25 | 8 | 28.3 | 9 | |
| 70 | 234 | 140 | 131 | 65.5 | 65 | 135 | 70 | 120 | 155 | 120 | 305 | 155 | 20 | 15 | 40 | 18 | 5脳3 | 30 | 8 | 33.3 | 14 | |
| 80 | 264 | 160 | 144 | 72.0 | 70 | 155 | 80 | 140 | 180 | 140 | 350 | 174 | 20 | 15 | 50 | 22 | 7脳4 | 35 | 10 | 38.3 | 21 | |
| 100 | 322 | 190 | 175 | 87.5 | 90 | 180 | 100 | 165 | 215 | 190 | 410 | 224 | 20 | 15 | 50 | 25 | 7脳4 | 40 | 12 | 43.3 | 33 | |
| 120 | 385 | 230 | 200 | 100 | 100 | 218 | 120 | 195 | 255 | 220 | 495 | 264 | 25 | 18 | 65 | 30 | 7脳4 | 45 | 14 | 48.8 | 51 | |
| 135 | 435 | 260 | 212 | 106 | 110 | 253 | 135 | 230 | 285 | 260 | 560 | 304 | 30 | 18 | 75 | 35 | 10脳4.5 | 60 | 18 | 64.4 | 75 | |
| 155 | 494 | 302 | 312 | 156 | 140 | 275 | 155 | 250 | 305 | 280 | 605 | 330 | 35 | 20 | 85 | 40 | 10脳4.5 | 70 | 20 | 74.9 | 114 | |
| 175 | 548 | 324 | 334 | 167 | 150 | 300 | 175 | 273 | 348 | 320 | 675 | 370 | 40 | 20 | 85 | 45 | 12脳4.5 | 80 | 22 | 85.4 | 150 | |
